New Holland Construction
/
(C232) - COMPACT TRACK LOADER - TIER 4B (3/15-)
/

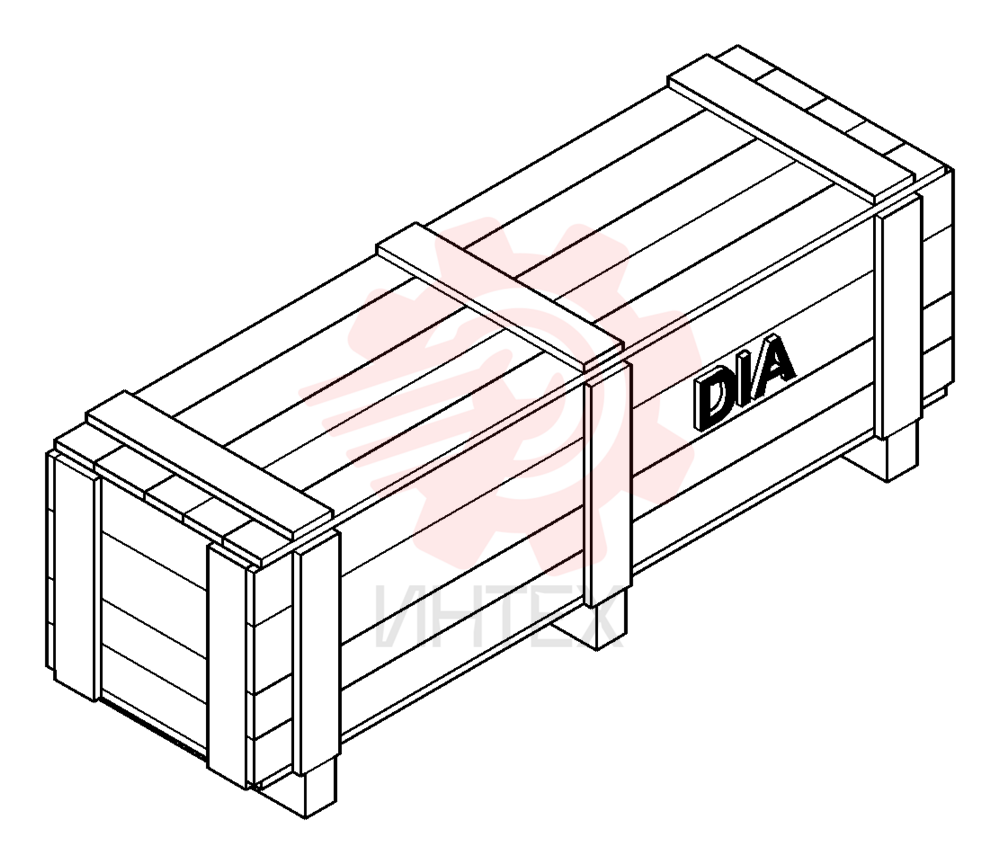

KIT 47822047

KIT 47822047

KIT 47822047

1 47822047

  • 47822047 - KIT
  • Demo Front Door
  • Incl 2 - 23

2 47822048

  • 47822048 - INSTRUCTION
  • Sheet

3 84281703

  • 84281703 - HOSE WASHER
  • Front

4 84285452

  • 84285452 - HOSE WASHER
  • 672mm L
  • Rear

5 84285453

  • 84285453 - HOSE WASHER
  • Bottle

6 84306335

  • 84306335 - TEE
  • Barbed Connector

7 K307050

  • K307050 - VALVE
  • Non-Return

8 84389613

  • 84389613 - BOTTLE
  • Assy
  • Windshield Washer

9 84326923

  • 84326923 - BRACKET
  • Washer Bottle

10 87335499

  • 87335499 - SWITCH
  • Rocker
  • Windshield Wiper

11 87682398

  • 87682398 - SCREW
  • Torx
  • Round HD
  • M6 x 16mm
  • Cl 10.9

12 L11541

  • L11541 - CABLE TIE
  • 203.2mm L
  • Nylon

13 47491441

  • 47491441 - DOOR
  • Assy
  • Jamb

14 47804890

  • 47804890 - DOOR
  • Front

15 84378453

  • 84378453 - GAS STRUT
  • Spring

16 86624468

  • 86624468 - SPACER
  • 1.65" L x 5/16” Thk
  • 1.65mm L
  • Switch

17 87392235

  • 87392235 - SENSOR
  • Reed
  • Non-Contact

18 84331404

  • 84331404 - WIRE CONNECTOR
  • Jumper

19 84322854

  • 84322854 - FOAM INSULATION
  • Sealing Strip
  • Cut to Length
  • 190mm L

20 84183818

  • 84183818 - SCREW
  • Torx Pan HD
  • M4 x 23.1mm
  • Cl 4.8

21 84359102

  • 84359102 - SCREW
  • Round HD
  • M6 x 35mm
  • Cl 10.9

22 84272827

  • 84272827 - RIVET
  • Flat Flg Head
  • 12.7mm OD x 17.4mm L

23 84305556

  • 84305556 - SCREW
  • Round HD
  • M6 x 1 x 25mm
  • Cl 10.9
