New Holland Construction
/
(C232) - COMPACT TRACK LOADER - TIER 4B (3/15-)
/

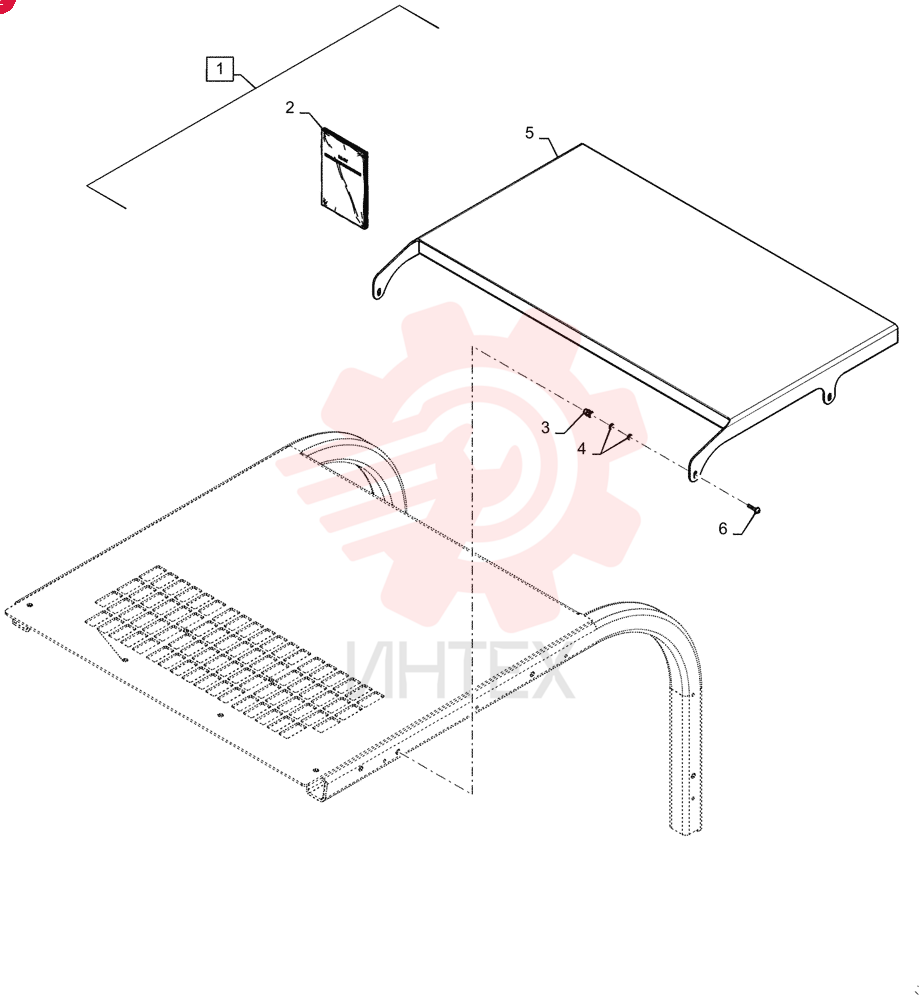

KIT 47673417

KIT 47673417

KIT 47673417

1 47673417

  • 47673417 - KIT
  • FOPS Level 2 Modifications
  • Incl 2 - 6

2 47669403

  • 47669403 - INSTRUCTION
  • Sheet

3 84272827

  • 84272827 - RIVET
  • Flat Flg Head
  • 12.7mm OD x 17.4mm L

4 86588450

  • 86588450 - WASHER
  • 6.6mm ID x 12mm OD x 1.6mm Thk

5 47673419

  • 47673419 - PANEL
  • FOPS

6 84305556

  • 84305556 - SCREW
  • Round HD
  • M6 x 1 x 25mm
  • Cl 10.9
