(DC150PS) - CRAWLER DOZER
/

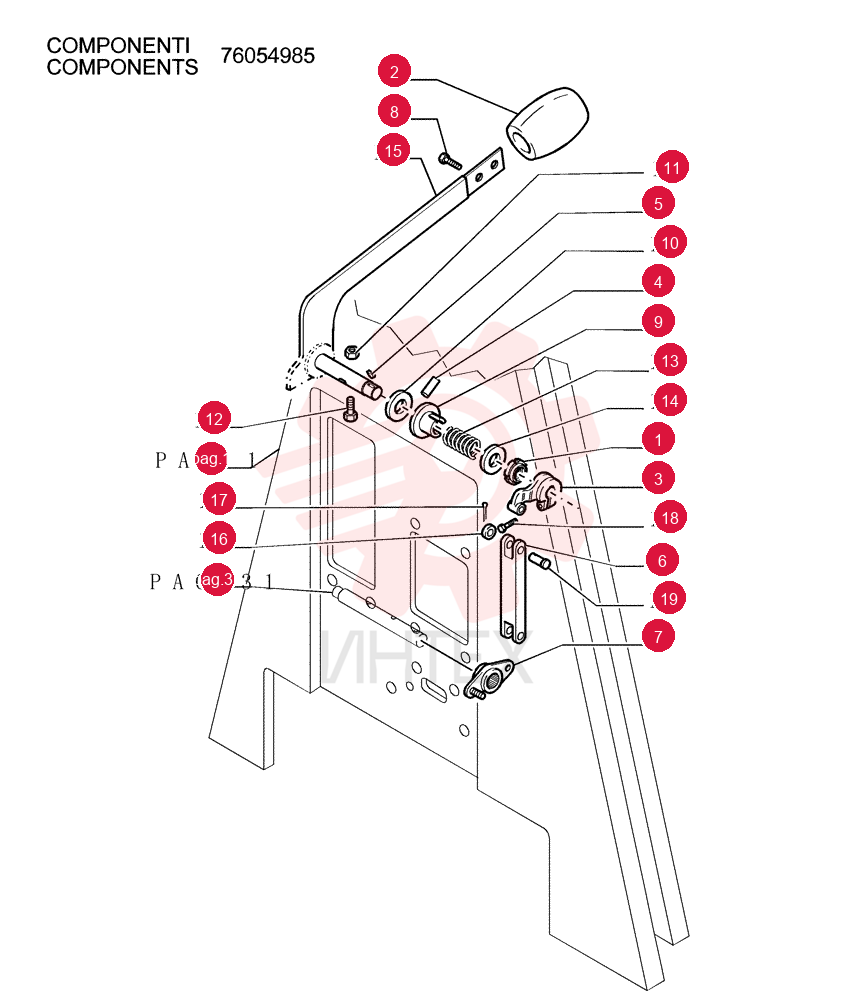

RING NUT 79091571

RING NUT 79091571

RING NUT 79091571

1 79091571

  • 79091571 - RING NUT

2 5131161

  • 5131161 - HANDLE GRIP

3 79095114

  • 79095114 - LEVER

4 10334930

  • 10334930 - ROLL PIN

5 10205620

  • 10205620 - KEY

6 79091546

  • 79091546 - LINK

7 79078958

  • 79078958 - PIVOT

8 15911907

  • 15911907 - SELF-TAP SCREW
  • Cross Oval Hd
  • M6.3 x 16

9 79091566

  • 79091566 - BUSHING
  • 14.1mm ID x 40mm OD x 18mm L

10 76032147

  • 76032147 - CLUTCH PLATE

11 16100814

  • 16100814 - NUT
  • M8
  • Cl 8
  • DAC

12 16043924

  • 16043924 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd

13 79078980

  • 79078980 - SPRING

14 79080850

  • 79080850 - WASHER
  • 14.5mm ID x 32mm OD x 3mm Thk

15 76046976

  • 76046976 - TRIP ARM

16 591123

  • 591123 - WASHER

17 10734201

  • 10734201 - COTTER PIN
  • M2 x 12

18 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

19 10004914

  • 10004914 - PIN
