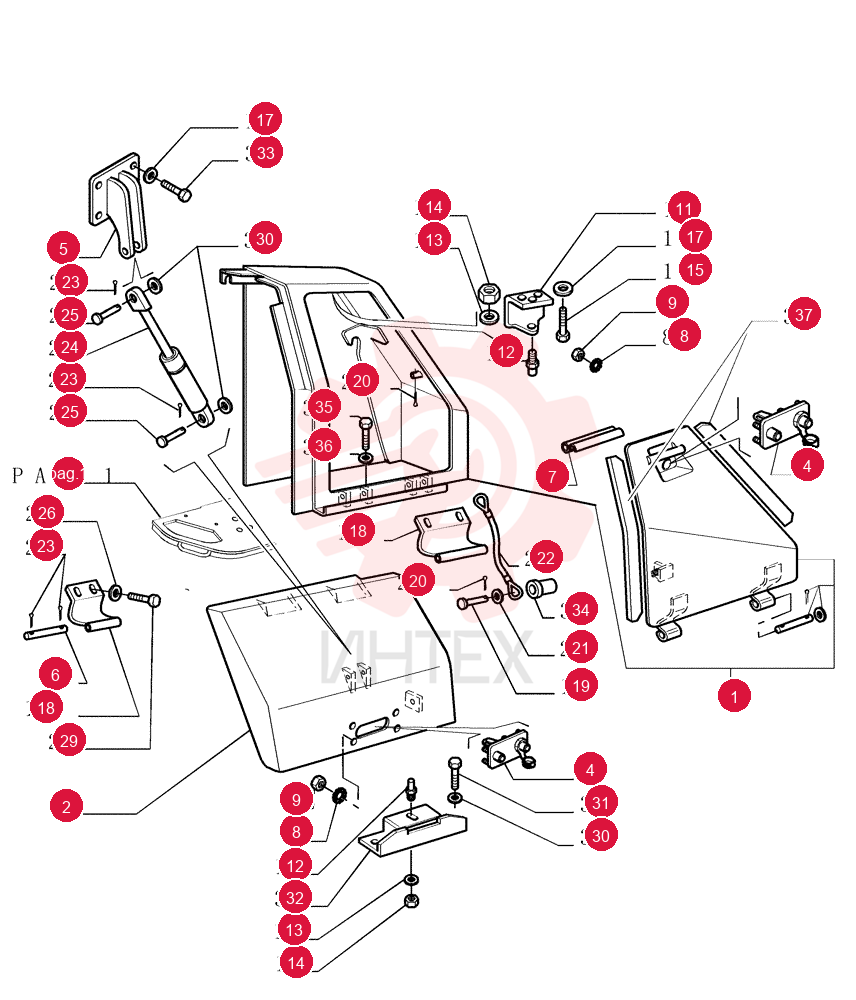

SIDE PANEL
1 76066170
- 76066170 - SIDE PANEL
2 76069271
- 76069271 - SIDE PANEL
3 76069272
- 76069272 - SIDE PANEL
4 76041613
- 76041613 - LOCK
5 76069261
- 76069261 - SUPPORT
6 76069268
- 76069268 - SUPPORT
7 76066445
- 76066445 - PIN
8 76043760
- 76043760 - DOOR SEAL
9 10615479
- 10615479 - LOCK WASHER
- 6.4mm ID x 11mm OD x 0.7mm Thk
10 10725921
- 10725921 - THIN NUT
- Thin
- M6 x 1
- Cl 05
11 76068117
- 76068117 - BRACKET
12 79092929
- 79092929 - PIN
- 12mm OD x 80mm L
13 12648531
- 12648531 - WASHER
- 12.2mm ID x 28mm OD x 4mm Thk
14 12577521
- 12577521 - NUT
- M12 x 1.75
15 16043431
- 16043431 - SCREW
- Hex
- M8 x 1.25 x 20mm
- Cl 10.9
- Full Thd
16 12645031
- 12645031 - WASHER
- 8.45mm ID x 21mm OD x 3mm Thk
17 76069264
- 76069264 - HINGE
18 76069263
- 76069263 - HINGE
19 76066141
- 76066141 - PIN
20 10734301
- 10734301 - COTTER PIN
- M2 x 18
21 12638631
- 12638631 - WASHER
- 10.6mm ID x 18mm OD x 2mm Thk
22 76027613
- 76027613 - CABLE
23 10733601
- 10733601 - COTTER PIN
- M3.2 x 22
24 76066448
- 76066448 - GAS STRUT
25 76046965
- 76046965 - PIN
26 12626231
- 12626231 - WASHER
- 10.2mm ID x 25mm OD x 3mm Thk
27 11106431
- 11106431 - SCREW
- Hex
- M10 x 1.5 x 30mm
- Cl 10.9
- Full Thd
28 14496731
- 14496731 - WASHER
- M12 x 24 x 2.5 Thk
29 11112231
- 11112231 - SCREW
- Hex
- M12 x 1.75 x 25mm
- Cl 10.9
- Full Thd
30 76069227
- 76069227 - SUPPORT
31 16043831
- 16043831 - SCREW
- Hex
- M8 x 1.25 x 30mm
- Cl 10.9
- Full Thd
32 79068087
- 79068087 - BUSHING
33 11106231
- 11106231 - BOLT
- Hex
- M10 x 1.5 x 25mm
- Cl 10.9
34 14496631
- 14496631 - WASHER
- 10.5mm ID x 21mm OD x 2mm Thk
35 76069781
- 76069781 - SEAL
