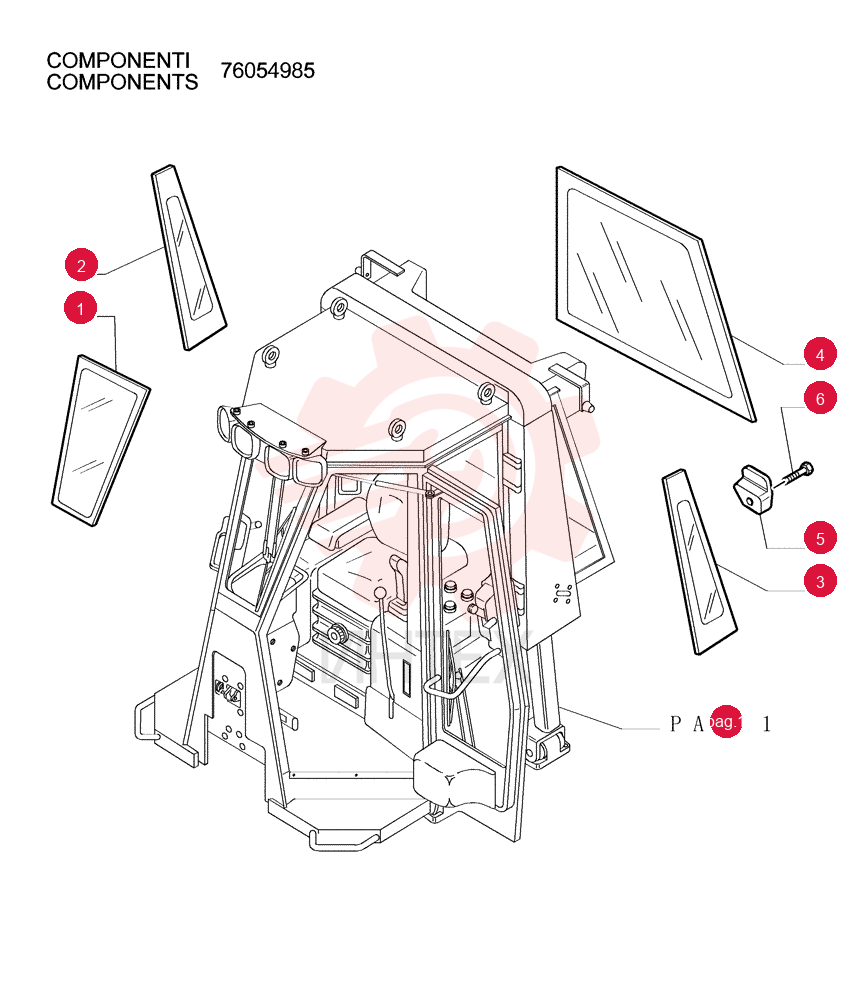

WINDSHIELD 76067373

WINDSHIELD 76067373

WINDSHIELD 76067373

1 76067373

  • 76067373 - WINDSHIELD

2 76067425

  • 76067425 - HEATED GLASS

3 76067424

  • 76067424 - HEATED GLASS

4 76067468

  • 76067468 - CAB GLASS

5 76067477

  • 76067477 - CLIP

6 14305334

  • 14305334 - HEX SOC SCREW
  • M6 x 20mm
  • Cl 10.9
  • Full Thd
