(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02346 (N5TA18048) (NA) (1/06-)
/

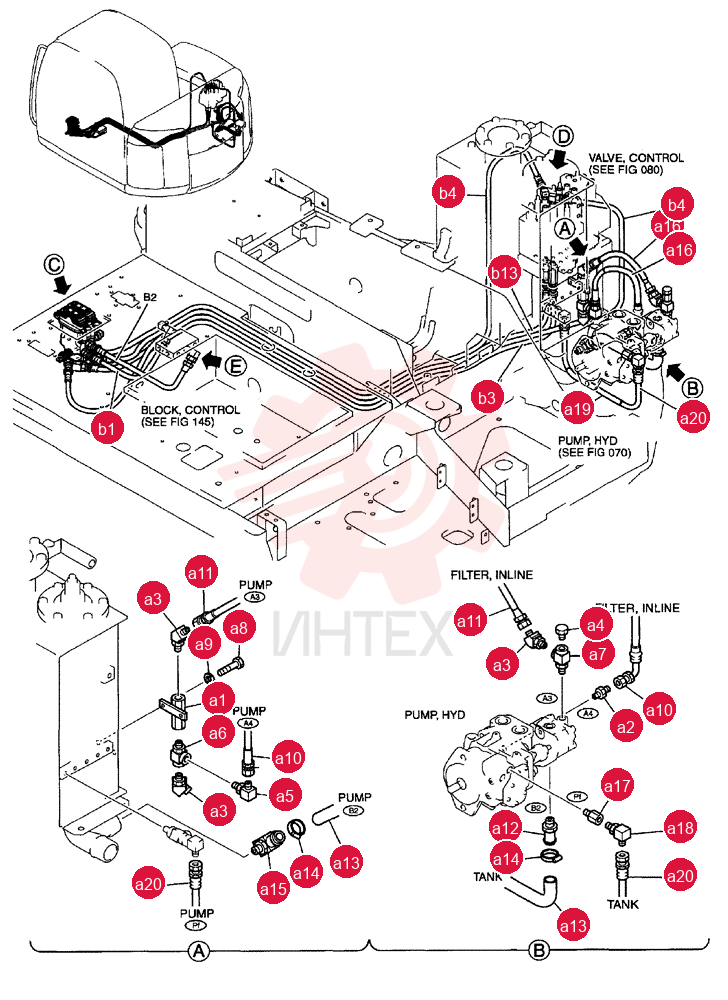

VALVE YN50V00007F1 (2)

VALVE YN50V00007F1 (2)

VALVE YN50V00007F1 (2)

1 YN50V00007F1

  • YN50V00007F1 - VALVE
  • INLINE

2 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR
  • CONNECTOR

3 ZH42X06000

  • ZH42X06000 - 45 ELBOW
  • Male
  • 30° Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • ELBOW

4 ZE72X04000

  • ZE72X04000 - PLUG

5 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30° Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • Elbow
  • 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006

6 HH55Q06006G1

  • HH55Q06006G1 - TEE

7 PW64H01011P1

  • PW64H01011P1 - TEE

8 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

9 ZW16X10000

  • ZW16X10000 - WASHER

10 2444R941D27

  • 2444R941D27 - FLEXIBLE HOSE
  • HOSE

11 2420R537D040

  • 2420R537D040 - HOSE ASSY.
  • 9.60mm ID x 400mm L

12 YT06H01006P1

  • YT06H01006P1 - CONNECTION

13 YT06H01008P1

  • YT06H01008P1 - HOSE

14 ZC16X03300

  • ZC16X03300 - FASTENER

15 YT06H01007P1

  • YT06H01007P1 - ELBOW

16 2414Z199D25

  • 2414Z199D25 - GUARD

17 2444Z2525

  • 2444Z2525 - HYD CONNECTOR

18 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30° Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • ELBOW

19 PU13E01002DA

  • PU13E01002DA - TUBE

20 2444R1120D065

  • 2444R1120D065 - HOSE

21 2420R349D040

  • 2420R349D040 - HOSE
  • 6.35mm ID x 400mm L

22 2444R1119D045

  • 2444R1119D045 - HOSE

23 2420R349D235

  • 2420R349D235 - HYDRAULIC HOSE
  • 6.35 mm ID x 2350.00 mm

24 2420R349D310

  • 2420R349D310 - HOSE

25 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30° Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • ELBOW

26 HH25X04004G2

  • HH25X04004G2 - HYD CONNECTOR

27 2444R402D16

  • 2444R402D16 - CONNECTION

28 LC52S00011P1

  • LC52S00011P1 - SENSOR
  • PRESS (L P.
  • Incl. B9-2

29 ZD12P01100

  • ZD12P01100 - O-RING

30 ZS18C08025

  • ZS18C08025 - SCREW
  • Hex
  • M8 x 25mm

31 ZW16H08000

  • ZW16H08000 - WASHER
  • ID 08 x OD 18 x Th 3.2mm

32 YN30V00070F1

  • YN30V00070F1 - VALVE
  • PILOT See Figure 186A

33 2420R349D225

  • 2420R349D225 - HOSE

34 2420R349D330

  • 2420R349D330 - HYDRAULIC HOSE
  • 6.35 mm ID x 3300.00 mm
