(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02346 (N5TA18048) (NA) (1/06-)
/

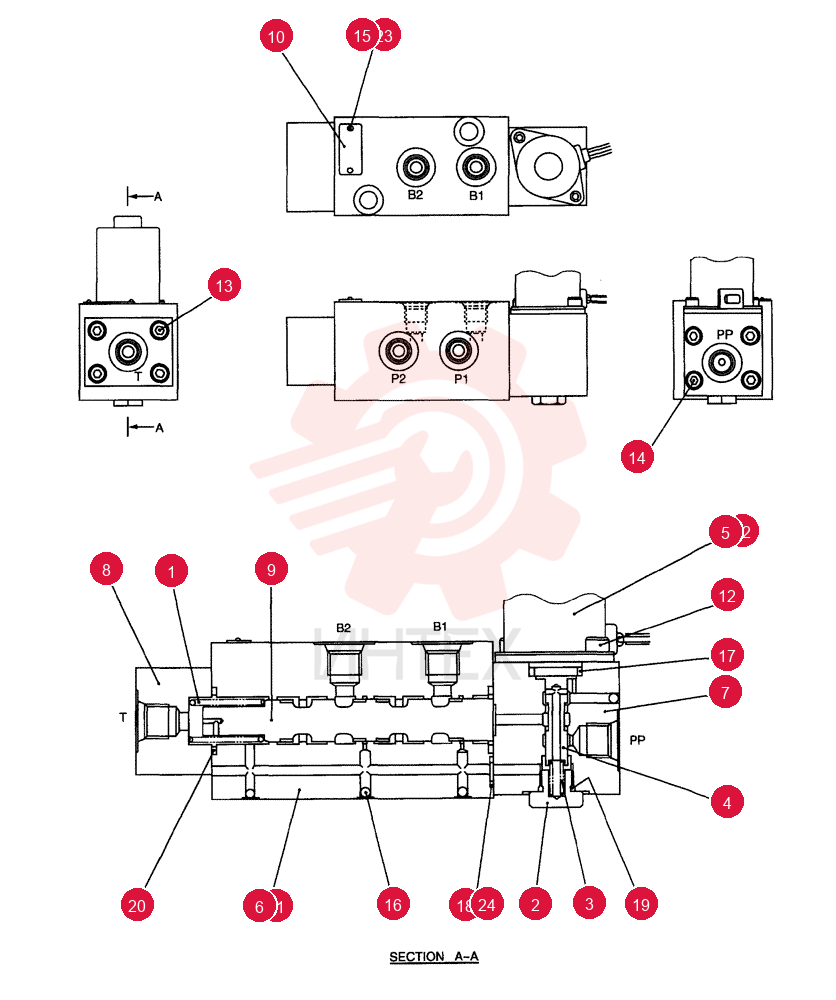

VALVE YR35V00009F2 (2)

VALVE YR35V00009F2 (2)

VALVE YR35V00009F2 (2)

1 YR35V00009F2

  • YR35V00009F2 - VALVE
  • SOLENOID

2 YR35V00009F1

  • YR35V00009F1 - SOLENOID
  • VALVE ASSY

3 YR35V00009S001

  • YR35V00009S001 - SPRING

4 2436U2159S3

  • 2436U2159S3 - PLUG

5 2436U2802S3

  • 2436U2802S3 - SPRING

6 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

7 YN35V00010S005

  • YN35V00010S005 - SOLENOID VALVE
  • FOR F1 ONLY

8 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BODY
  • FOR F1 ONLY

9 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BODY

10 YR35V00009S008

  • YR35V00009S008 - COVER

11 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

12 NSS

  • NSS - NOT SERVICED SEPARATELY
  • NAME PLATE

13 EN35V00004S010

  • EN35V00004S010 - BOLT

14 ZS23C06030

  • ZS23C06030 - SCREW
  • Hex Socket Head
  • M6 x 30mm

15 EZ30V00001S037

  • EZ30V00001S037 - SCREW
  • FOR F1 ONLY

16 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BALL

17 ZD11P01600

  • ZD11P01600 - O-RING

18 ZD12P00600

  • ZD12P00600 - O-RING
  • FOR F1 ONLY

19 ZD12P01000

  • ZD12P01000 - O-RING

20 ZD12P02100

  • ZD12P02100 - O-RING
  • 2.4mm Thk x 20.8mm ID
  • 90 Duro

21 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BODY
  • FOR F2 ONLY

22 YR35V00009S022

  • YR35V00009S022 - SOLENOID VALVE
  • FOR F2 ONLY

23 YN30V00080S023

  • YN30V00080S023 - SCREW
  • FOR F2 ONLY

24 ZD12P00800

  • ZD12P00800 - O-RING
  • 1.9mm Thk x 7.8mm ID
  • 90 Duro
  • FOR F2 ONLY
