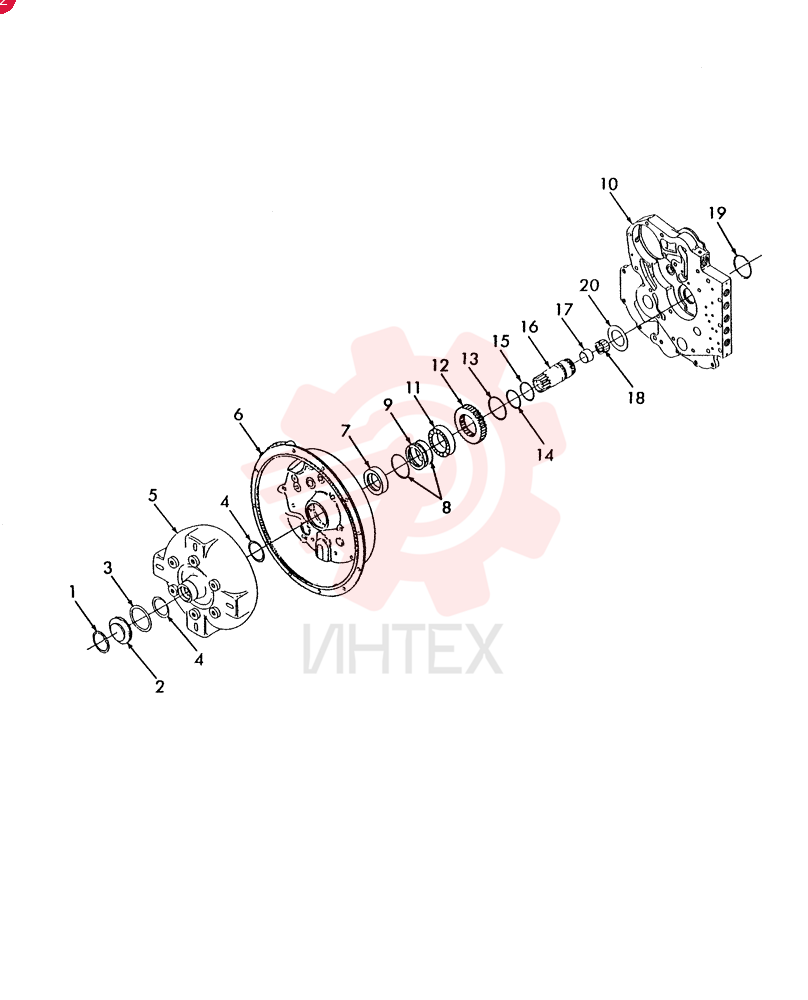

RING 153213842
1 153213842
- 153213842 - RING
- Retaining
2 153213684
- 153213684 - PLUG
3 153214341
- 153214341 - GASKET
- Seal
- O-Ring substitute is 70924791
4 153214605
- 153214605 - RING
- Retaining
5 153214816
- 153214816 - COVER
- Torque Converter Assy.
6 153214745
- 153214745 - HOUSING
- Torque Converter
- See Fig. 7A1
7 153214607
- 153214607 - SEAL
- Oil
8 153214608
- 153214608 - SEAL
- O-Ring
9 153214609
- 153214609 - OIL SCRAPER RING
- Ring
- Oil Distributor
10 153214749
- 153214749 - JOINING ELEMENT
- Plate
- Spacer
- See Fig. 7A1
11 153212606
- 153212606 - BEARING ASSY
- Bearing
12 153214610
- 153214610 - GEAR
- Impeller Hub
13 153214611
- 153214611 - OIL SCRAPER RING
- Ring
- Retaining
14 153214612
- 153214612 - OIL SCRAPER RING
- Ring
- Piston
- Stator Support
15 153214613
- 153214613 - OIL SCRAPER RING
- Expander
- Piston Ring
16 153214791
- 153214791 - SUPPORT
- Assy.
- Stator Includes: Ref. 17 & 18
17 153214615
- 153214615 - BUSHING
18 153214618
- 153214618 - ROLLER CAGE BEARING
- Bearing
19 153214617
- 153214617 - RING
- Retaining
20 153214616
- 153214616 - WASHER
- Impeller Hub Gear
