New Holland Construction
/
(FT110) - BACKHOE LOADER (5/99-)
/

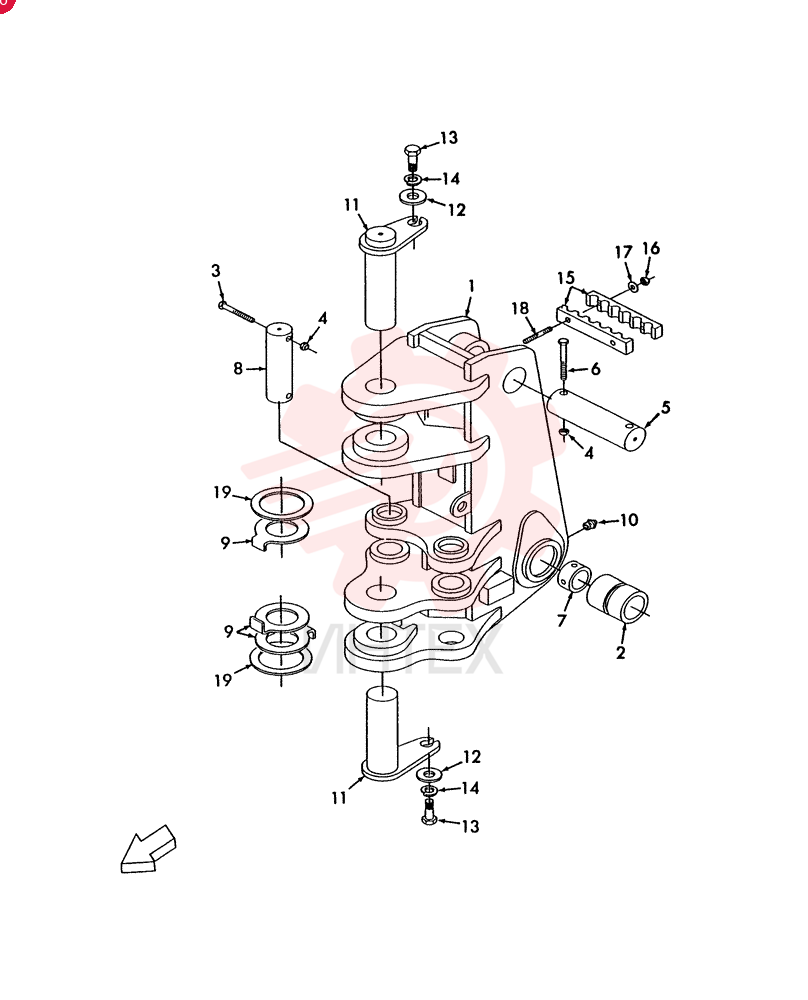

SUPPORT 155116681

SUPPORT 155116681

SUPPORT 155116681

1 155116681

  • 155116681 - SUPPORT
  • Post
  • Swing

2 152602711

  • 152602711 - BUSHING

3 151105204

  • 151105204 - SCREW
  • Bolt

4 151111002

  • 151111002 - NUT

5 152612826

  • 152612826 - PIN
  • Lift Cylinder

6 151104052

  • 151104052 - SCREW
  • Bolt

7 152601301

  • 152601301 - SPACER

8 152612677

  • 152612677 - PIN
  • Swing Cylinder

9 155116650

  • 155116650 - WASHER
  • W/Locking Tab

10 154101001

  • 154101001 - LUBE NIPPLE
  • Fitting
  • Lube

11 152619676

  • 152619676 - PIN

12 155122016

  • 155122016 - SEALING WASHER
  • Washer
  • Flat

13 151101116

  • 151101116 - SCREW
  • Bolt

14 151120008

  • 151120008 - SEALING WASHER
  • Washer
  • Locking

15 157050124

  • 157050124 - CLAMP
  • Retainer
  • Hose

16 151110057

  • 151110057 - NUT

17 151112463

  • 151112463 - SEALING WASHER
  • Washer

18 151116002

  • 151116002 - STUD

19 158274447

  • 158274447 - SHIM
