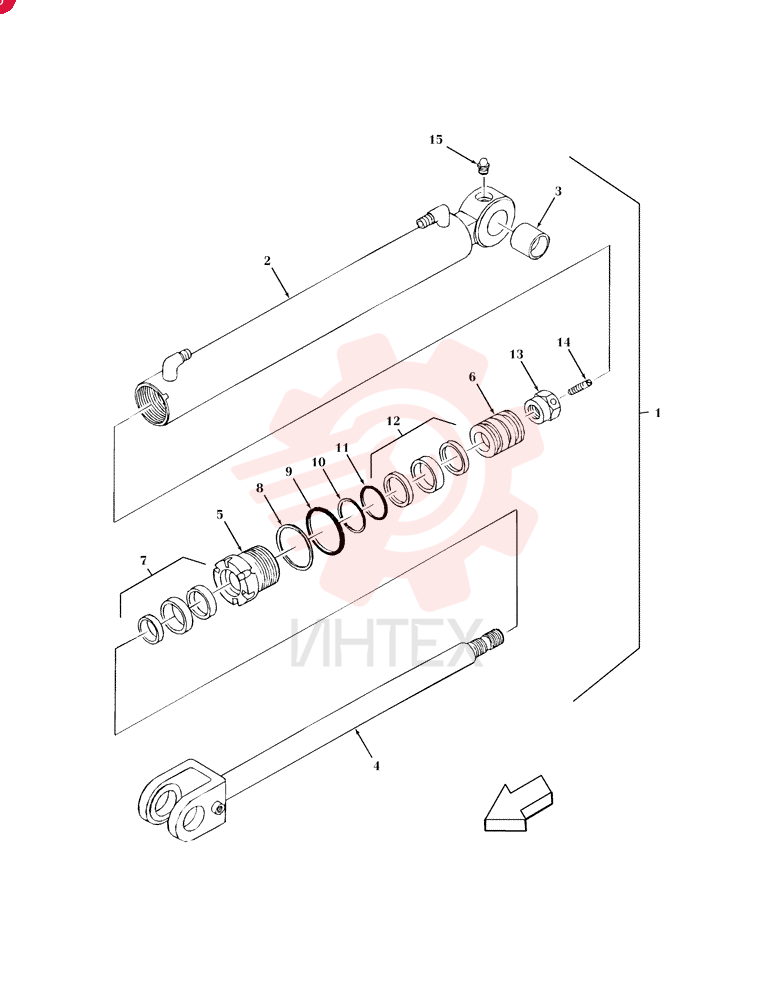

JACK
1 71445200
- 71445200 - JACK
- Cylinder Assy. Includes: Ref. 2 thru 15
2 71445204
- 71445204 - BARREL
- Cylinder Includes: Ref. 3
3 71445273
- 71445273 - BUSHING
4 71445201
- 71445201 - ROD
5 79103516
- 79103516 - BASE PLATE
- Head
6 79103521
- 79103521 - PISTON
7 79071319
- 79071319 - GASKET
- Head Seal
8 79099831
- 79099831 - SEAL
- 108mm ID x 118mm OD x 4mm Thk
- Washer
9 14466080
- 14466080 - O-RING
- 0.139" Thk x 3.984" ID
- -242
- Cl 5
- 75 Duro
- 3.984" ID x .139" Thk
10 79021911
- 79021911 - RING
- 94mm ID x 100mm OD x 6mm Thk
- Back-Up
11 14465781
- 14465781 - O-RING
- 3.609" ID x 3.887" OD x 0.139"
- -239
- Cl 7
- 3.609" ID x .139" Thk
12 79099829
- 79099829 - SEAL
- Kit
- Piston Seal
13 79103522
- 79103522 - NUT
14 79099830
- 79099830 - SET SCREW
- less Hex Socket
- M10 x 1.5 x 10mm
- Set
15 13407211
- 13407211 - LUBE NIPPLE
- M10 x 1
- NIPPLE
- LUBE
- M10 x 1
