New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

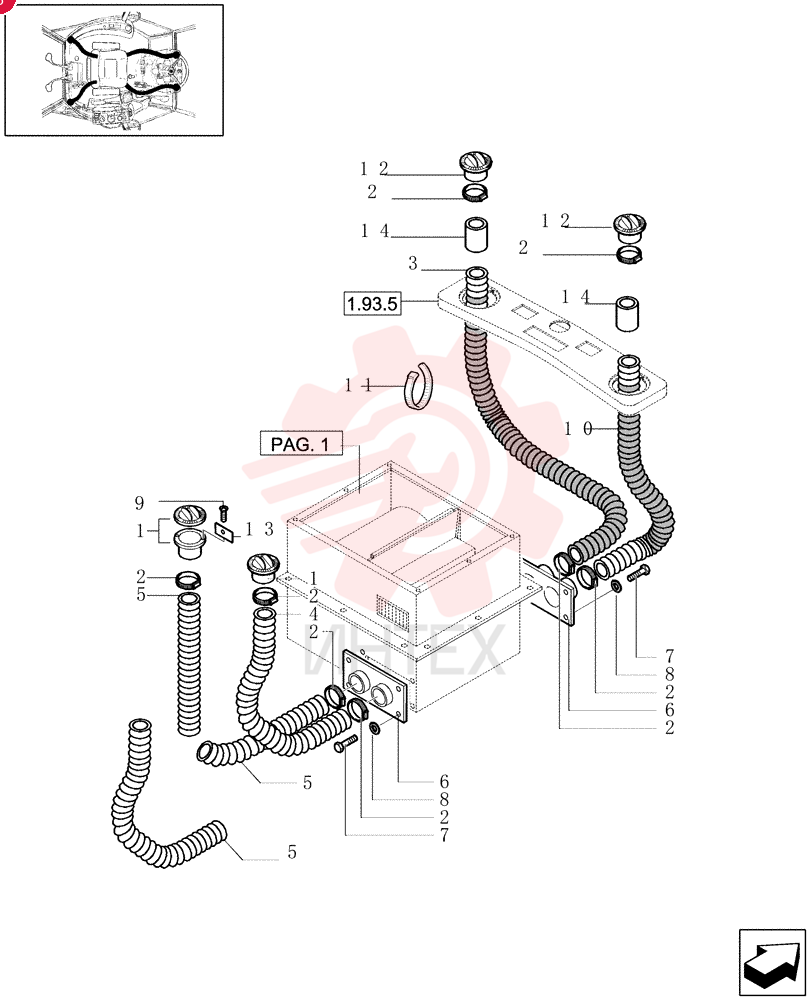

DIFFUSER

DIFFUSER

DIFFUSER

1 70741298

  • 70741298 - DIFFUSER

2 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

3 85804873

  • 85804873 - AIR DUCT
  • L=2000
  • Front
  • LH

4 85804876

  • 85804876 - AIR DUCT
  • L=1050
  • Rear
  • RH

5 85805637

  • 85805637 - AIR DUCT
  • 600mm lg
  • Rear
  • LH

6 85805136

  • 85805136 - FLANGE

7 10902124

  • 10902124 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 8.8

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm
  • 6 x 16

10 85804874

  • 85804874 - FLEXIBLE HOSE
  • 1600mm lg
  • Front
  • RH

11 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

12 85819543

  • 85819543 - DIFFUSER

13 14183374

  • 14183374 - NUT
  • M3
  • Push

14 85819592

  • 85819592 - SLEEVE
