(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

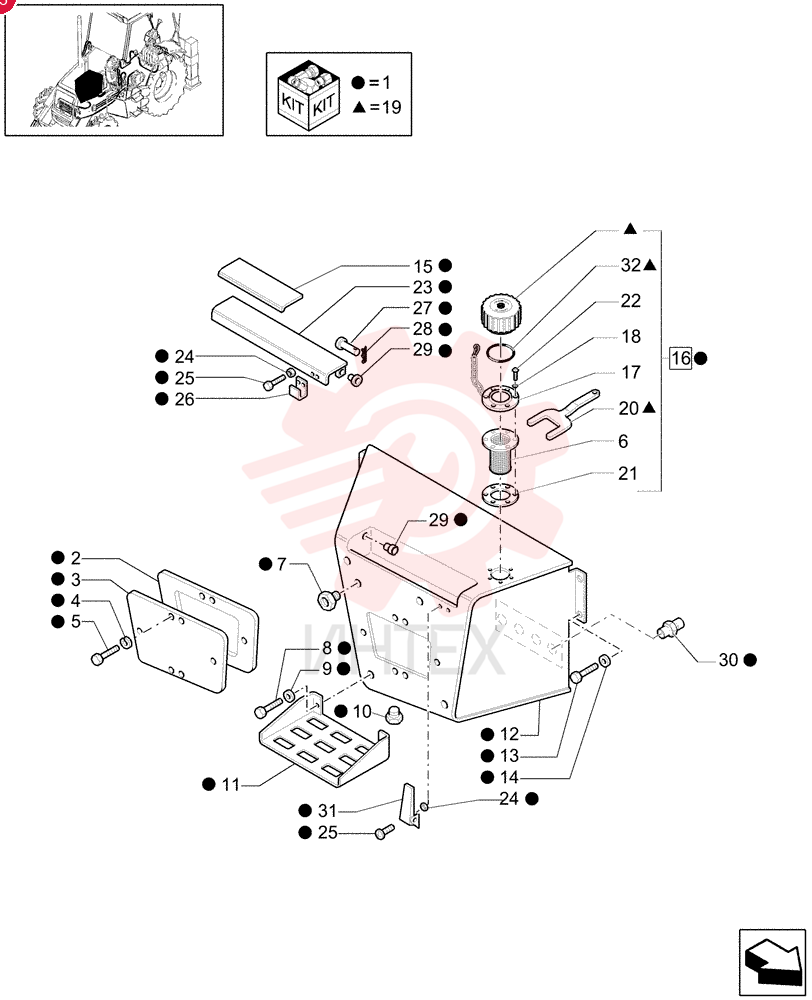

TANK 85825357

TANK 85825357

TANK 85825357

1 85825357

  • 85825357 - TANK

2 85825389

  • 85825389 - GASKET

3 85825391

  • 85825391 - COVER

4 14496521

  • 14496521 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

5 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

6 87407928

  • 87407928 - FILTER

7 85801249

  • 85801249 - LEVEL GAUGE

8 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

9 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

10 85801251

  • 85801251 - MAGNETIC PLUG
  • M33 x 2
  • PLUG
  • MAGNETIC

11 85801218

  • 85801218 - STEP PLATE

12 85813463

  • 85813463 - TANK

13 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

14 11190879

  • 11190879 - BELLEVILLE WASHER
  • M12 Bolt Size x 30mm OD

15 85802808

  • 85802808 - ANTI-SKID STRIP

16 87403241

  • 87403241 - FILLER CAP
  • Assy

17 85813352

  • 85813352 - FLANGE

18 85813354

  • 85813354 - O-RING
  • 6 x 1.5

19 85813350

  • 85813350 - SERVICE KIT

20 85802580

  • 85802580 - SPECIAL WRENCH

21 9969380

  • 9969380 - SEAL

22 85813353

  • 85813353 - SCREW
  • M5 x 16

23 85813464

  • 85813464 - LID

24 15896421

  • 15896421 - NUT
  • M5
  • Cl 10

25 13274021

  • 13274021 - SCREW
  • Pozidriv Pan Hd
  • M5 x 12mm
  • Cl 8.8

26 85803075

  • 85803075 - BRACKET

27 10041211

  • 10041211 - PIN

28 10734201

  • 10734201 - COTTER PIN
  • M2 x 12

29 85803093

  • 85803093 - NYLON BEARING

30 83963375

  • 83963375 - HYD CONNECTOR

31 85803074

  • 85803074 - LOCKING TAB

32 85813351

  • 85813351 - O-RING
  • 39.35 x 2.62
