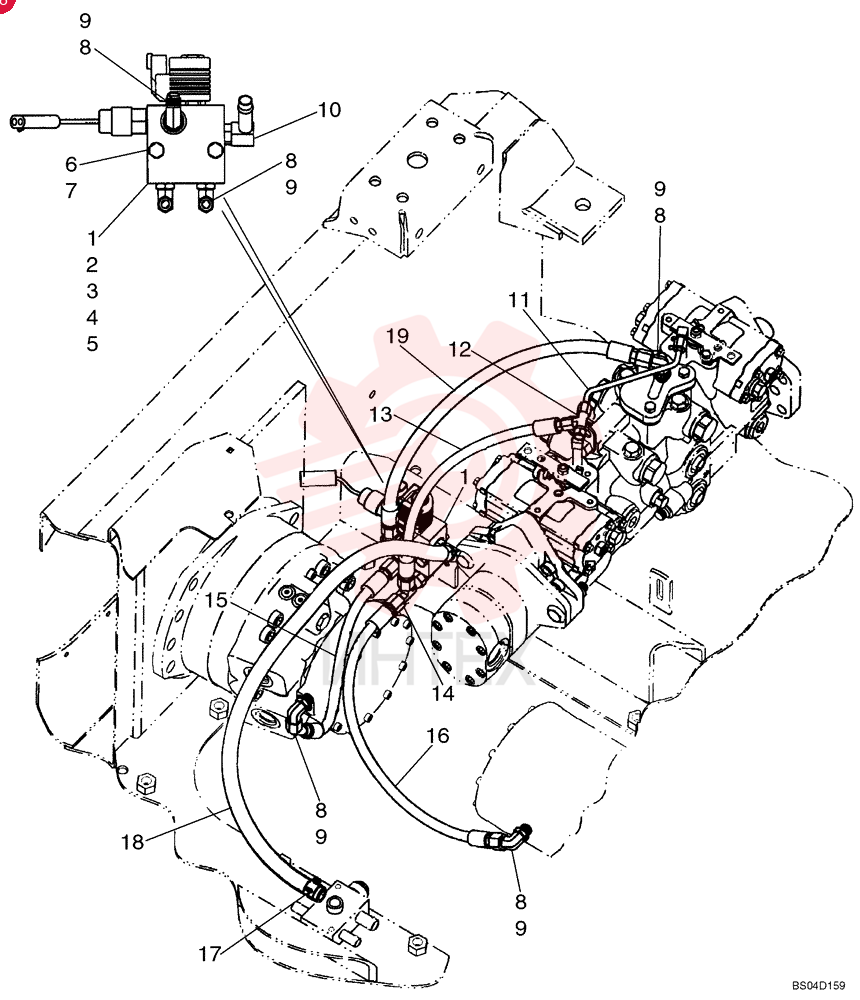

VALVE 87423788 (2)
1 87423788
- 87423788 - VALVE
- Replaces 87424182 Used In Production
- Incl. 2 - 5
2 87021047
- 87021047 - BRAKE VALVE
- Incl. 3 - 5
3 87424182
- 87424182 - BRAKE VALVE
- Solenoid
4 87433496
- 87433496 - COIL
5 87019943
- 87019943 - PRESSURE SWITCH
- Brake Valve
- Incl. O-Ring Which Is Not Serviced Separately
6 80681
- 80681 - LOCK WASHER
- 5/16"
7 86505972
- 86505972 - BOLT
- 5/16" - 18 x 2 - 1/4"
- Gr 5
8 280967
- 280967 - SQUARE NUT
- Sq
- 5/16"-18
- G2
- Used With 6
- 7
- Not Illustrated
9 76344
- 76344 - 90 ELBOW
- 9/16" - 18 JIC x 9/16" - 18 ORB
- Incl. 9
10 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
11 86705580
- 86705580 - FITTING
- 90 Degree
- 1/2" Hose Bead x 9/16" - 18 ORB
- Incl. Nut
- Washer
- and O-Ring
12 87021277
- 87021277 - TUBE
- 6.35mm OD x 124.9mm L
- 37 Degree Flare
13 86513653
- 86513653 - TEE
- 7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC
14 87026845
- 87026845 - HOSE ASSY.
- 515.6 mm (20.3 in)
15 129274
- 129274 - TEE
- 9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
16 87027714
- 87027714 - HOSE ASSY.
- 406.2 mm (16 in)
17 87027715
- 87027715 - HOSE ASSY.
- 584.2 mm (23 in)
18 87443510
- 87443510 - HOSE CLAMP
- 18.4mm Static ID x 15mm W
19 87027716
- 87027716 - HOSE ASSY.
- 807.7 mm (31.8 in)
20 87026844
- 87026844 - HOSE ASSY.
- 533.4 mm (21.7 in)
