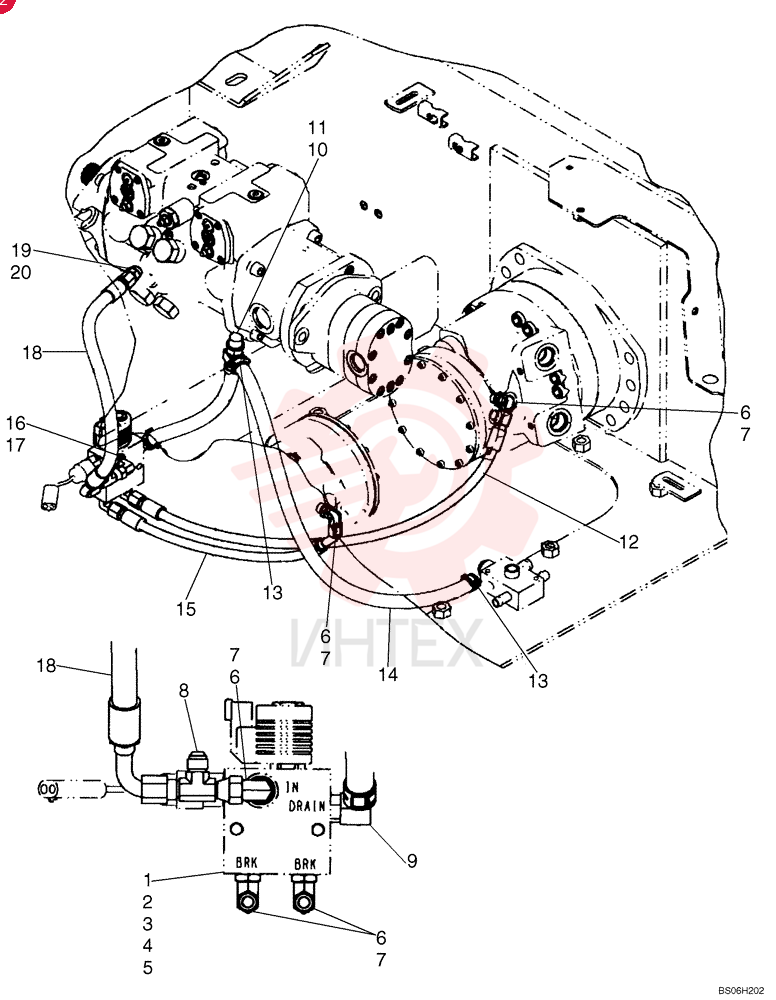

VALVE 87423788 (1)
1 87423788
- 87423788 - VALVE
- Replaces 87424182 Used In Production
- Incl. 2 - 5
2 87021047
- 87021047 - BRAKE VALVE
- Incl. 3 - 5
3 87424182
- 87424182 - BRAKE VALVE
- Solenoid
4 87433496
- 87433496 - COIL
5 87019943
- 87019943 - PRESSURE SWITCH
- Brake Valve
- Incl. O-Ring Which Is Not Serviced Separately
6 76344
- 76344 - 90 ELBOW
- 9/16" - 18 JIC x 9/16" - 18 ORB
- Incl. 7
7 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
8 129274
- 129274 - TEE
- 9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
9 86705580
- 86705580 - FITTING
- 90 Degree
- 1/2" Hose Bead x 9/16" - 18 ORB
- Incl. Nut
- Washer
- O-ring
10 87535984
- 87535984 - TEE
- Run Tee
- Incl. 11
11 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
12 87027715
- 87027715 - HOSE ASSY.
- 584.2 mm (23 in)
13 87443510
- 87443510 - HOSE CLAMP
- 18.4mm Static ID x 15mm W
14 87535986
- 87535986 - HOSE
- 12.70 mm ID x 630.00 mm
15 87027714
- 87027714 - HOSE ASSY.
- 406.2 mm (16 in)
16 80681
- 80681 - LOCK WASHER
- 5/16"
17 280967
- 280967 - SQUARE NUT
- Sq
- 5/16"-18
- G2
18 87357155
- 87357155 - HOSE
- 9.53mm ID x 545mm L
- SAE 100R1
- 545 mm (21.45 in)
- Brake Supply
19 76350
- 76350 - HYD CONNECTOR
- 9/16" - 18 ORB x 9/16" - 18 JIC
- Incl 20
20 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
21 87535987
- 87535987 - HOSE
- 12.70 mm ID x 314.00 mm
