New Holland Construction
/
(LS185.B) - SKID STEER LOADER
/

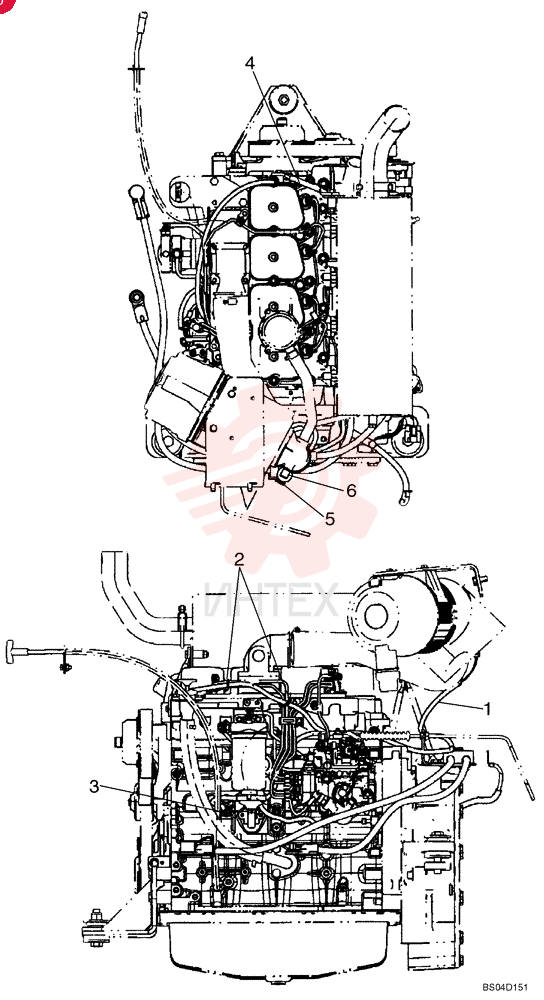

WIRE HARNESS 87041590

WIRE HARNESS 87041590

WIRE HARNESS 87041590

1 87041590

  • 87041590 - WIRE HARNESS
  • Engine Harness
  • Used With Switch 277016A1

2 87539896

  • 87539896 - WIRE HARNESS
  • Engine Harness
  • Used With Switch 2852735

3 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black

4 277016A1

  • 277016A1 - PRESSURE SWITCH
  • Oil
  • Part # 277016A1 and Four Digit Date Stamped on Rim
  • B.M. Instruments
  • Uses Harness 87041590

5 2852735

  • 2852735 - PRESSURE SWITCH
  • Oil Pressure
  • Oil Pressure
  • See Service Breakdown Figure 04-05A
  • Iveco
  • Uses Harness 87539896

6 A166057

  • A166057 - TEMPERATURE SENDER
  • 1/2" - 14 NPTF
  • Engine Coolant

7 293797A1

  • 293797A1 - RESTRICTION SWITCH
  • Air
  • Male Thread

8 84015293

  • 84015293 - ELBOW
  • 90 Degree
  • 1/8"-27 Female x 1/8"-27 Male
