(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

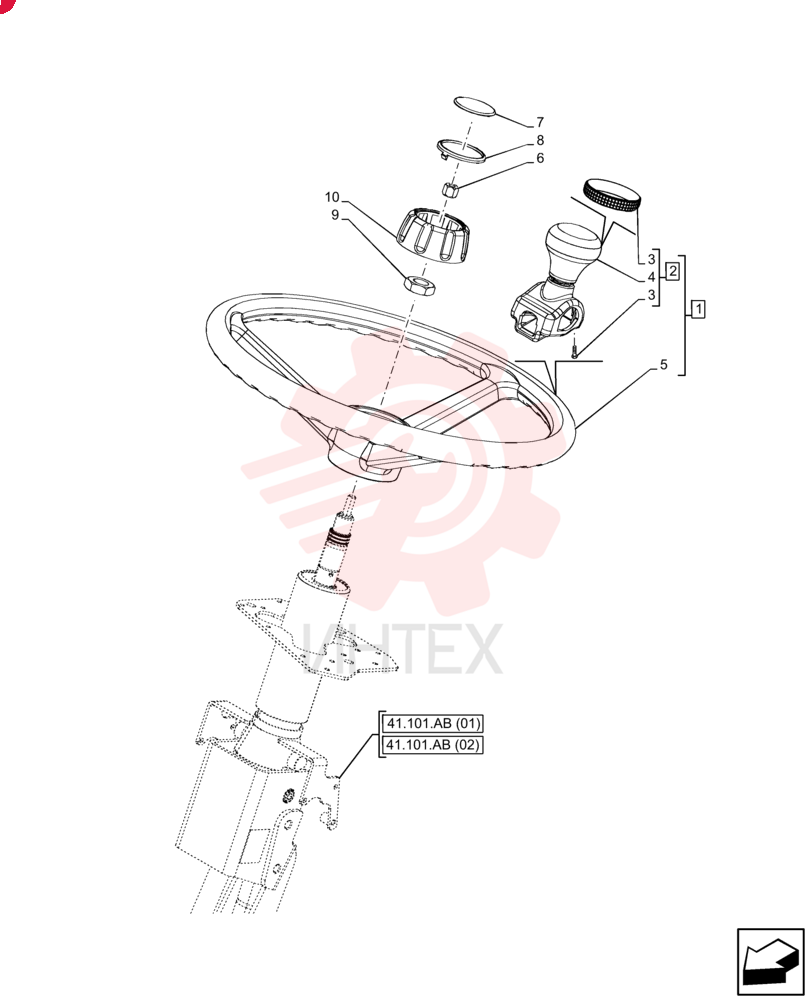

STEERING WHEEL 84575280

STEERING WHEEL 84575280

STEERING WHEEL 84575280

1 84575280

  • 84575280 - STEERING WHEEL
  • ASSY
  • Incl 2
  • 5

2 84575281

  • 84575281 - KNOB
  • ASSY
  • Incl 3
  • 4

3 47381670

  • 47381670 - KIT

4 NSS

  • NSS - NOT SOLD SEPARAT
  • Knob
  • Incl in 2

5 9821708

  • 9821708 - STEERING WHEEL

6 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

7 84487437

  • 84487437 - LOGO
  • DEALERSHIP IDE
  • NH

8 87302798

  • 87302798 - CAP
  • 54mm OD
  • Black

9 10726611

  • 10726611 - THIN NUT
  • Thin
  • M18
  • 1.5mm Pitch
  • Cl 04
  • ZND

10 87302160

  • 87302160 - KNOB
