(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

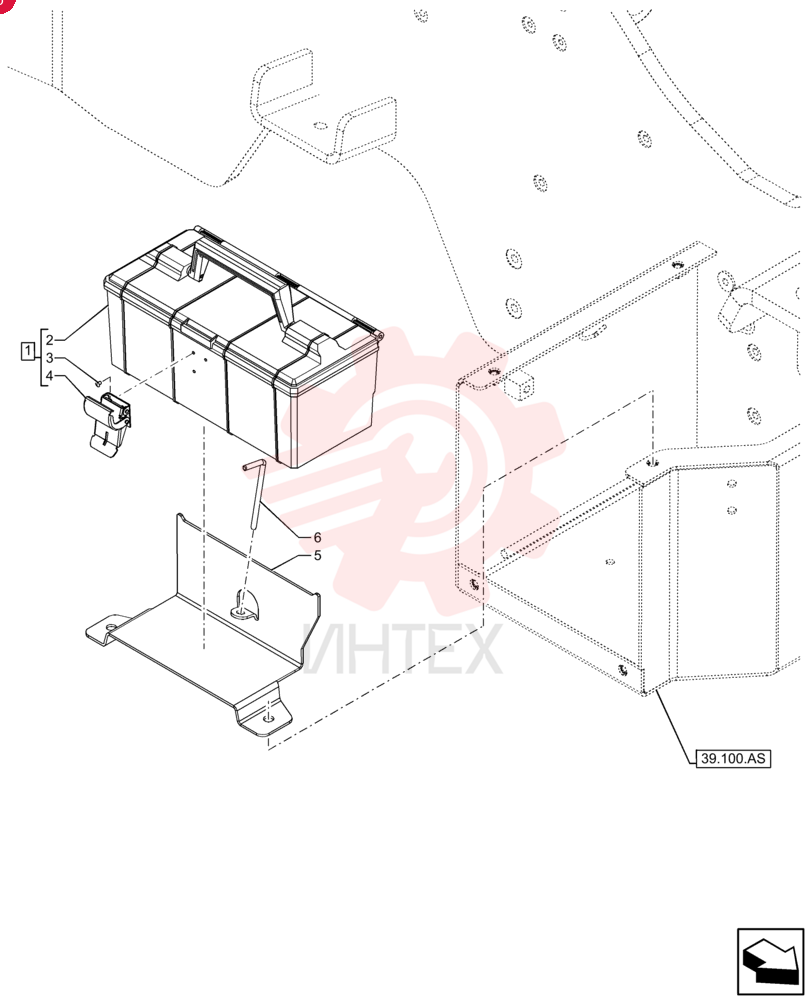

TOOL BOX 5137750

TOOL BOX 5137750

TOOL BOX 5137750

1 5137750

  • 5137750 - TOOL BOX
  • ASSY
  • Incl 2 - 4

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Tool Box
  • Incl in 1

3 14641391

  • 14641391 - RIVET
  • Tr Hd
  • M3.2 x 8
  • Aluminum

4 5135576

  • 5135576 - LATCH

5 47562094

  • 47562094 - BRACKET

6 5106675

  • 5106675 - PIN
  • 6mm OD
