(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

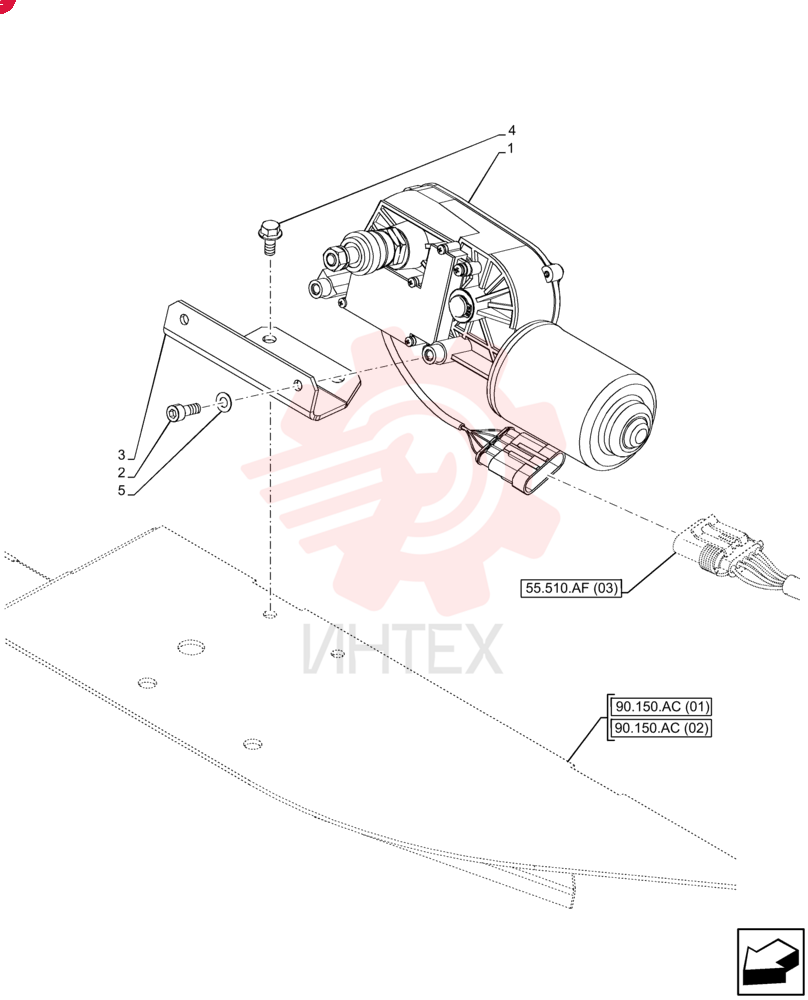

WIPER MOTOR 84576886

WIPER MOTOR 84576886

WIPER MOTOR 84576886

1 84576886

  • 84576886 - WIPER MOTOR
  • 12V
  • 2 Speed
  • 90 Degrees

2 84058583

  • 84058583 - HEX SOC SCREW
  • BTN HD
  • M6 x 16mm
  • Cl 8.8

3 47702294

  • 47702294 - BRACKET

4 16296924

  • 16296924 - FLANGE BOLT
  • Hvy Hex
  • M6 x 14mm
  • Cl 8.8
  • Full Thd

5 13579234

  • 13579234 - SEALING WASHER
  • 6.15mm ID x 12mm OD x 0.5mm Thk
