(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

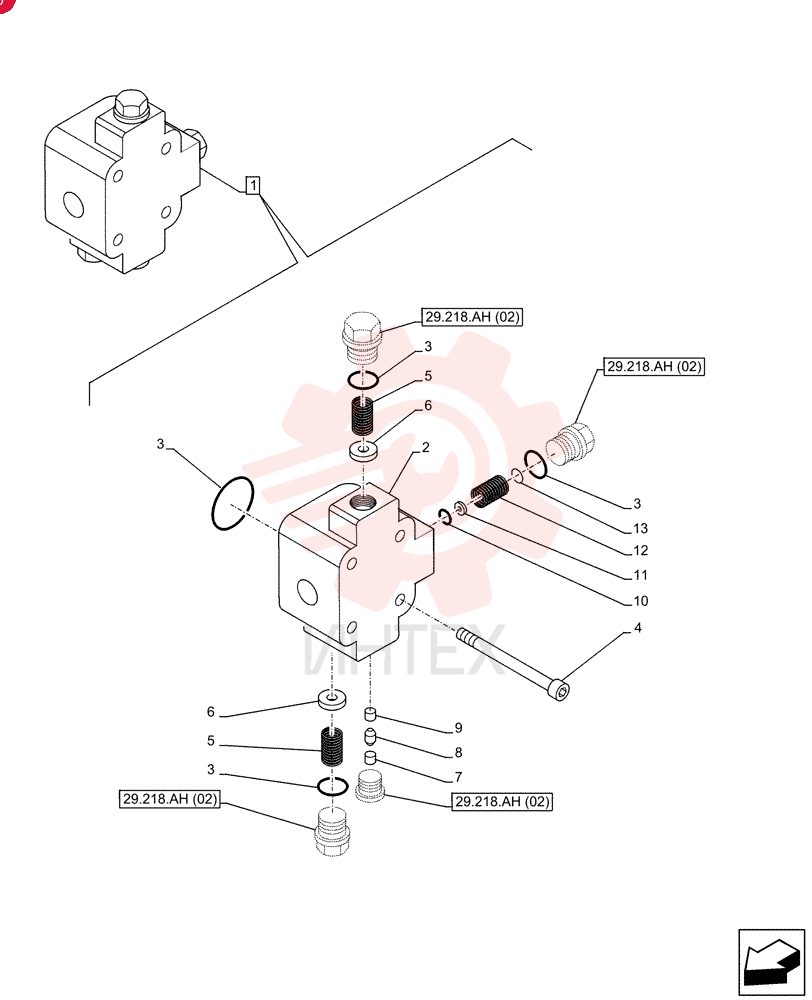

VALVE 47627322

VALVE 47627322

VALVE 47627322

1 47627322

  • 47627322 - VALVE
  • ASSY
  • Incl 3 - 13

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Body
  • Incl in 1

3 47627319

  • 47627319 - KIT

4 14308031

  • 14308031 - SCREW
  • Hex
  • M10 x 1.25 x 55mm

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring
  • Incl in 1

6 NSS

  • NSS - NOT SOLD SEPARAT
  • Washer
  • Incl in 1

7 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • Incl in 1

8 NSS

  • NSS - NOT SOLD SEPARAT
  • Valve
  • Incl in 1

9 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • Incl in 1

10 NSS

  • NSS - NOT SOLD SEPARAT
  • O-ring
  • Incl in 1

11 NSS

  • NSS - NOT SOLD SEPARAT
  • Washer
  • Incl in 1

12 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring
  • Incl in 1

13 NSS

  • NSS - NOT SOLD SEPARAT
  • O-ring
  • Incl in 1
