(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

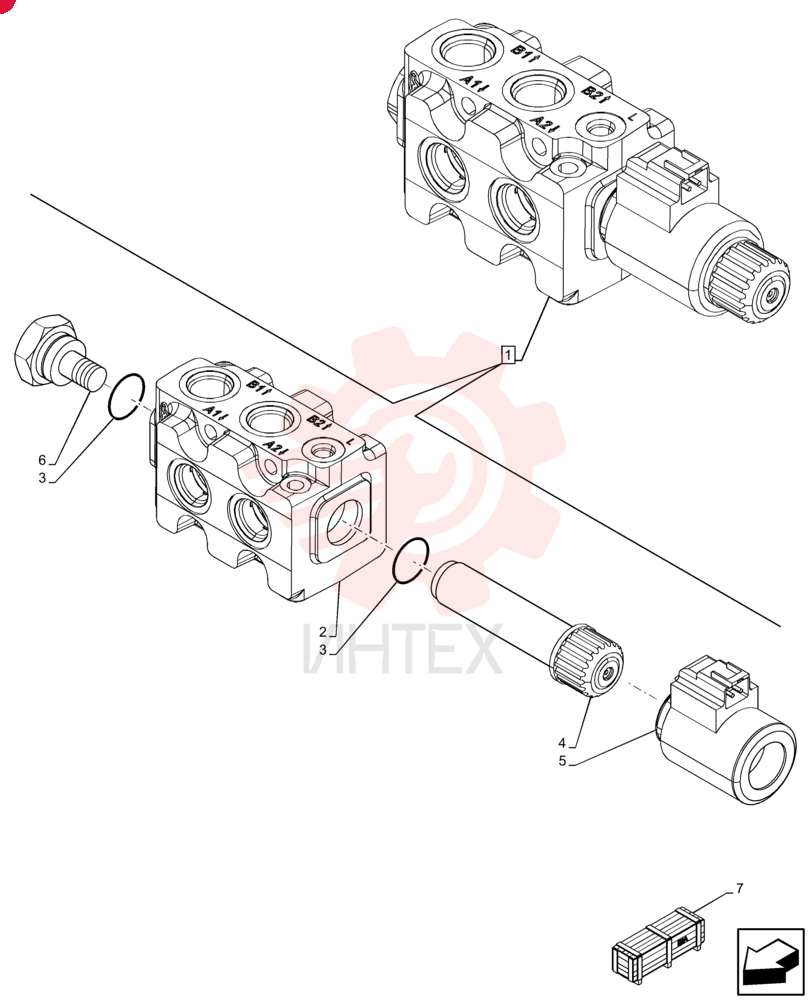

VALVE 47639119

VALVE 47639119

VALVE 47639119

1 47639119

  • 47639119 - VALVE
  • Flow Diverter
  • ASSY
  • Incl 2 - 6

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Body
  • Incl in 1

3 47755166

  • 47755166 - KIT
  • Seal

4 47755165

  • 47755165 - SOLENOID VALVE

5 47629998

  • 47629998 - COIL

6 47755159

  • 47755159 - HEX PLUG

7 47700334

  • 47700334 - CONSTRUCTION DIA
  • Hydraulic System 4th Function
  • Incl 1 - 6

8 47700340

  • 47700340 - CONSTRUCTION DIA
  • Hydraulic System 4th Function Skid
  • Incl 1 - 6

9 47700342

  • 47700342 - CONSTRUCTION DIA
  • Hydraulic System 4th Function TC
  • Incl 1 - 6

10 47700352

  • 47700352 - CONSTRUCTION DIA
  • Hydraulic System 4th Function TC Skid
  • Incl 1 - 6
