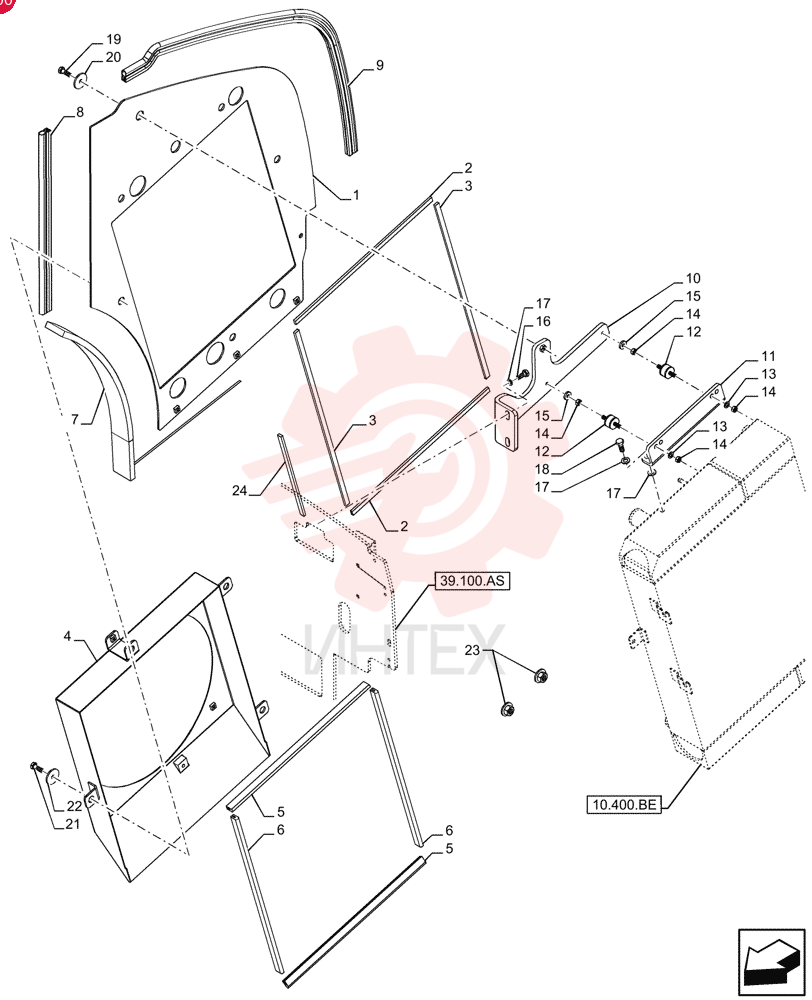

SUPPORT 47639499
1 47639499
- 47639499 - SUPPORT
- Radiator
- Serial Range: -NGHP00027
2 47931198
- 47931198 - SUPPORT
- Radiator
- Start Serial: NGHP00028
3 47638687
- 47638687 - SEAL
- 490mm
4 47638669
- 47638669 - SEAL
- 630mm
5 47724335
- 47724335 - SHROUD
- Radiator
6 47622369
- 47622369 - SEAL
- 493mm
7 47622362
- 47622362 - SEAL
- 560mm
8 47636325
- 47636325 - INSULATOR
- Side
9 47622348
- 47622348 - SEAL
- 530mm
- Serial Range: -NGHP00027
10 47927108
- 47927108 - SEAL
- 530mm
- Start Serial: NGHP00028
11 47622352
- 47622352 - SEAL
- 1160mm
- Serial Range: NGHP00028-NGHP00027
12 47925227
- 47925227 - SEAL
- 1160mm
13 47508763
- 47508763 - BRACKET
14 47620553
- 47620553 - BRACKET
- Radiator Mount
15 87754588
- 87754588 - RUBBER MOUNTING
- 30 x 20mm
16 86624184
- 86624184 - WASHER
- 9mm ID x 16mm OD x 1.6mm Thk
17 43362
- 43362 - NUT
- M8 x 1.25
- Cl 10
18 57111
- 57111 - WASHER
- 8.4mm ID x 21mm OD x 4mm Thk
- 8.4mm
19 43248
- 43248 - BOLT
- Hex
- M10 x 1.5 x 40mm
- Cl 10.9
20 86624176
- 86624176 - WASHER
- 11mm ID x 20mm OD x 2mm Thk
21 9846677
- 9846677 - BOLT
- M10 x 1.5 x 25mm
- Cl 10.9
22 43235
- 43235 - BOLT
- Hex
- M8 x 1.25 x 30mm
- Cl 10.9
- Full Thd
23 12646204
- 12646204 - WASHER
- 8.15mm ID x 35mm OD x 3mm Thk
24 9861444
- 9861444 - BOLT
- Hex
- M10 x 1.5 x 20mm
- Cl 10.9
25 12644301
- 12644301 - WASHER
- M10 x 35 x 3
26 12577221
- 12577221 - LOCK NUT
- M10 x 1.5mm Pitch
- 12.30mm High
- Cl 10
- ZND
27 87432328
- 87432328 - SEAL
- 294mm
- Start Serial: NGHP00028
