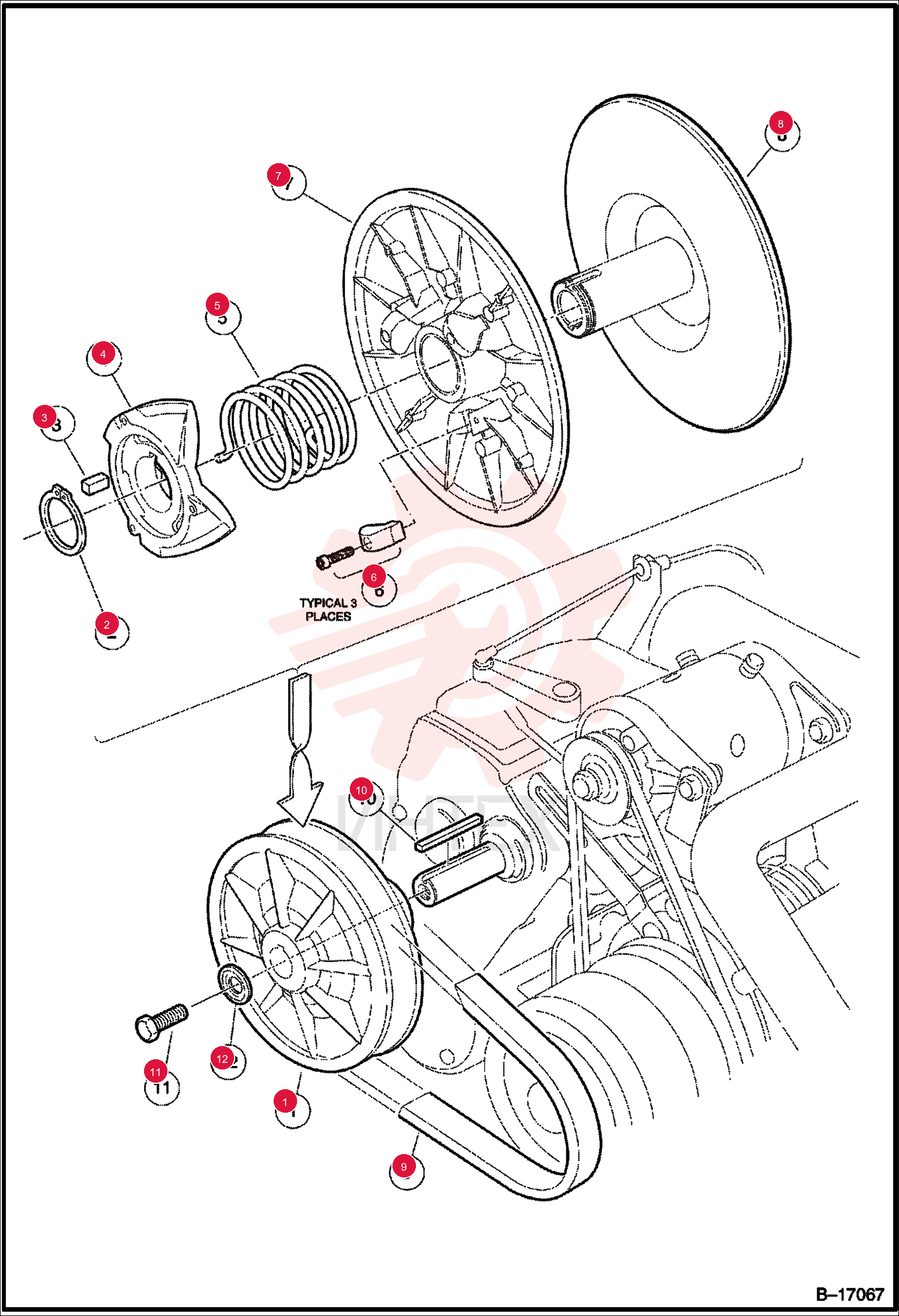

DRIVEN CLUTCH ASM - FE290D

DRIVEN CLUTCH ASM - FE290D

DRIVEN CLUTCH ASM - FE290D

1 101834001CC

  • 101834001CC - DRIVEN CLUTCH ASM - FE290D
  • assy - Ref. 2-8

2 1014080CC

  • 1014080CC - RING
  • RETAINER
  • retaining

3 1014078CC

  • 1014078CC - KEY
  • DRIVEN CLUTCH

4 1017686CC

  • 1017686CC - CAM
  • DRIVEN CLUTCH

5 101836201CC

  • 101836201CC - SPRING
  • DRIVEN CLUTCH REVERSED
  • green

6 1014454CC

  • 1014454CC - DRIVEN CLUTCH BUTTON KIT
  • driven clutch bottom

7 1014072CC

  • 1014072CC - MOVABLE FACE ASM W/BUSHING
  • moveable face w/bushing

8 1014070CC

  • 1014070CC - FIXED FACE ASM - DRIVEN CLUTCH
  • fixed

9 AM10419CC

  • AM10419CC - KIT DRIVEN CLUTCH
  • hardware repair - W/Ref. 10-12

10 102267101CC

  • 102267101CC - BELT
  • DRIVE
  • drive

11 101833401CC

  • 101833401CC - KEY
  • 3/16 SQ X 1.50" TRANSMISSION
  • square transmission

12 102242101CC

  • 102242101CC - SCREW
  • 5/16-18X3/4 HX HD W/PTC

13 1017327CC

  • 1017327CC - WASHER
  • DRVN CLUTCH BELLEVILLE
