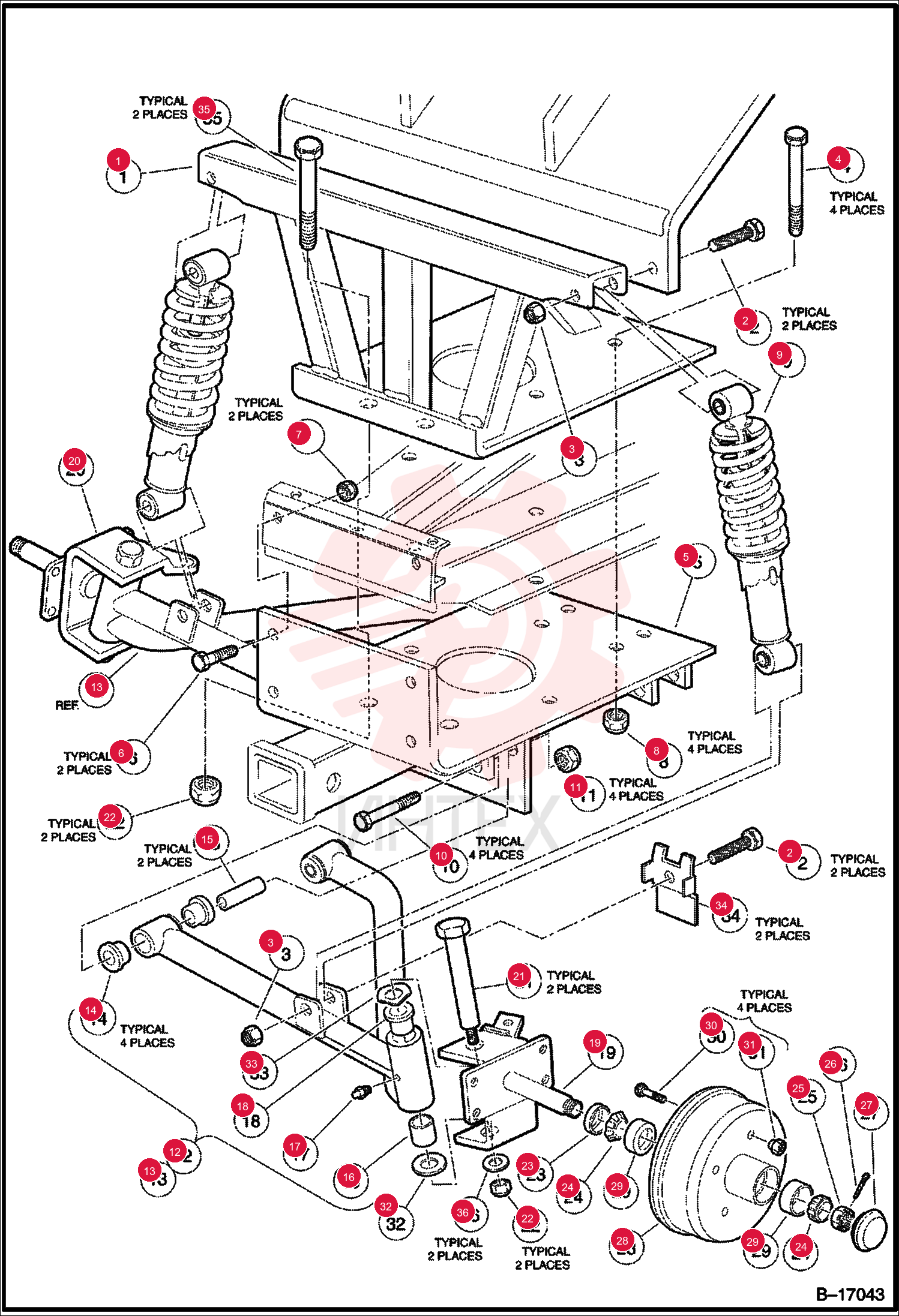

SHOCK TOWER 102012301CC
1 102012301CC
- 102012301CC - SHOCK TOWER
- NLA - Was 102012301CC
2 102023101CC
- 102023101CC - SCREW
- 7/16-14 X 2.50 HEX CAP
3 1014555CC
- 1014555CC - LOCKNUT
- 7/16-14 NYLON INSERT
4 7270CC
- 7270CC - BOLT
- 3/8-16 X 4.50 HEX HEAD
5 102016801CC
- 102016801CC - SUSPENSION MTG PLATE
- suspension mounting
6 1010934CC
- 1010934CC - SCREW
- 5/16-18 X 1.00 HEX CAP
7 7473CC
- 7473CC - LOCKNUT
- 5/16-18 NYLON INSERT
8 8754CC
- 8754CC - LOCKNUT
- 3/8-16 HEX
9 102017601CC
- 102017601CC - COIL OVER SHOCKS
10 1016387CC
- 1016387CC - SCREW
- 3/8-16 X 2.75 HX HD CAP
11 8754CC
- 8754CC - LOCKNUT
- 3/8-16 HEX
12 102052401CC
- 102052401CC - LEFT A-ARM ASM
- driver side - Ref. 14-16
13 102052301CC
- 102052301CC - RIGHT A-ARM ASM
- passenger side - Ref. 14-16
14 1016346CC
- 1016346CC - BUSHING
- URETHANE
15 102066701CC
- 102066701CC - SLEEVE
- A-ARM
16 8067CC
- 8067CC - BUSHING
17 1015597CC
- 1015597CC - FITTING
- 1/4-28 THRD FRM GREAS
- Was 1015587CC
18 7048CC
- 7048CC - BUSHING
19 102016701CC
- 102016701CC - SPINDLE ASSEMBLY LH
- driver side
20 102016501CC
- 102016501CC - RIGHT SPINDLE ASSEMBLY
- passenger side
21 102048601CC
- 102048601CC - KING PIN BOLT ASM
22 101903101CC
- 101903101CC - LOCKNUT
- 1/2-20 NYLON INSERT
23 102023001CC
- 102023001CC - SEAL
- DOUBLE LIP
24 102013701CC
- 102013701CC - BEARING
- TAPERED
25 102013801CC
- 102013801CC - NUT
- 1.00-14 SLOTTED HEX JAM
26 101838801CC
- 101838801CC - COTTER PIN
27 102013601CC
- 102013601CC - DUST COVER
28 1013787CC
- 1013787CC - LUG STUD
29 1010984CC
- 1010984CC - NUT
- 1/2-20 LUG
30 1010150CC
- 1010150CC - BEARING
- THRUST
- thrust
31 1016389CC
- 1016389CC - WASHER
- 1.125 OD WAVE
32 102100001CC
- 102100001CC - STEERING STOP
- steering
33 1010028CC
- 1010028CC - WASHER
- 1/2 TYPE A FLAT
