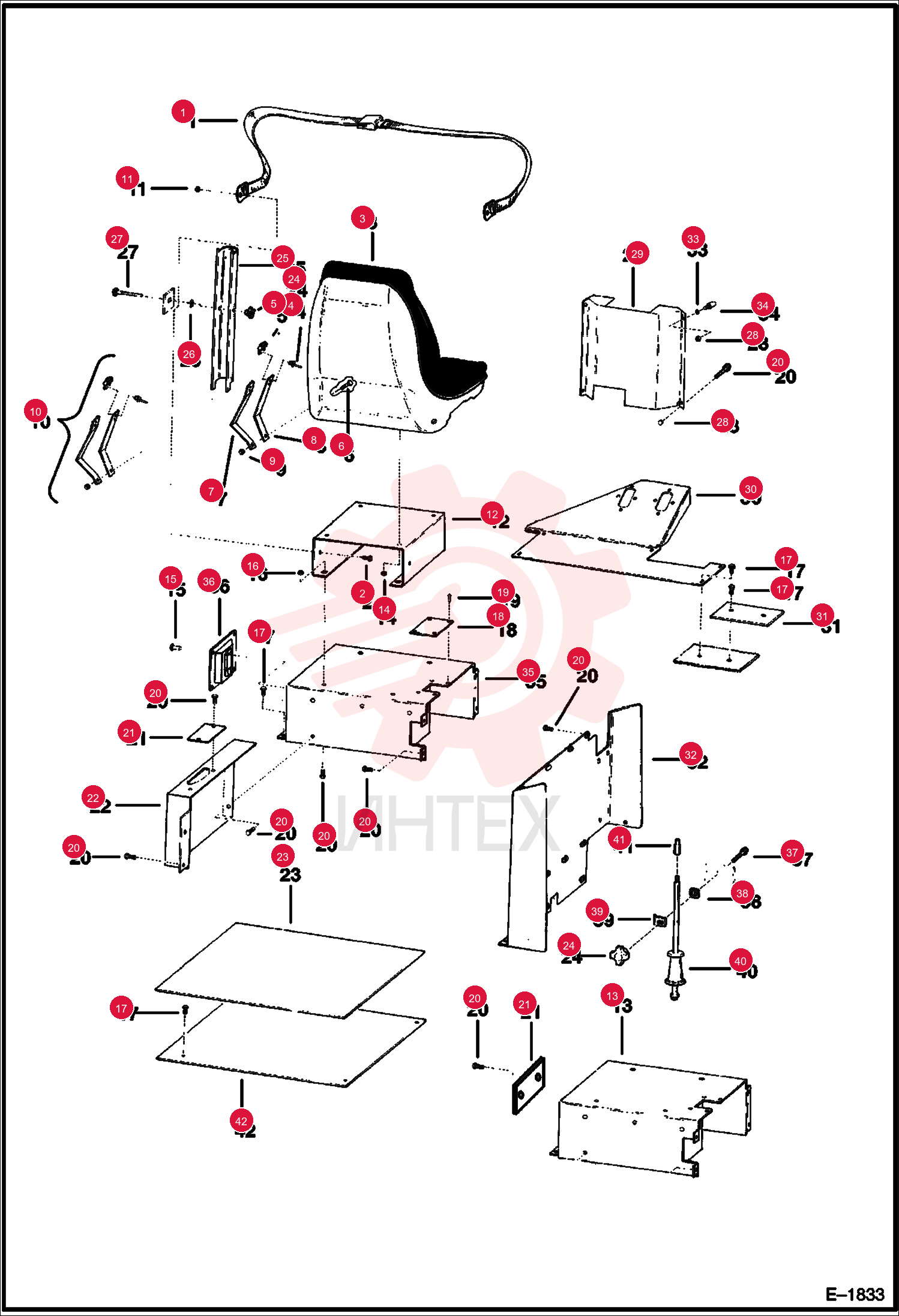

BOLT 17C816
1 17C816
- 17C816 - BOLT
2 6630207
- 6630207 - RIVET POP
- Was 1662965
3 17C610
- 17C610 - BOLT
4 6585872
- 6585872 - BRACE
5 6584585
- 6584585 - STRAP
6 57D6
- 57D6 - NUT HEX FLNG GR8
7 6585871
- 6585871 - GUIDE ASSEMBLY
- W/Ref. 4
- 5
- 7 & 8
8 61D8
- 61D8 - NUT 5
9 6585887
- 6585887 - CHANNEL
10 6585888
- 6585888 - PAN SEAT
11 85D5
- 85D5 - NUT PRETRQ HEX LOCK
12 6598681
- 6598681 - RIVET
13 61D6
- 61D6 - NUT HEX FINISHED GR5
14 84G3712
- 84G3712 - SCREW THD ROLLING TT
15 6585444
- 6585444 - COVER
- PLATE
- Was 6585961
16 24G1012
- 24G1012 - BOLT
17 25G510
- 25G510 - BOLT
18 6585899
- 6585899 - PLATE
19 6583647
- 6583647 - COVER
20 6585867
- 6585867 - COVER
- PLATE
21 6647668
- 6647668 - KNOB
- Was 16D000006B
22 6585894
- 6585894 - STOP
- W/Decal - Was 6531781
23 6534258
- 6534258 - LINK BALL
24 6512909
- 6512909 - NUT
25 7C656
- 7C656 - BOLT
- Was 7C000652B
26 85D5
- 85D5 - NUT PRETRQ HEX LOCK
- Was 61D000005B
27 6585594
- 6585594 - COVER
- PANEL
28 6584687
- 6584687 - FOOT REST
- Was 6585886
29 6583741
- 6583741 - PLATE
30 6585864
- 6585864 - CONSOLE
- PANEL
31 6648443
- 6648443 - WASHER
- FLAT
32 6733616
- 6733616 - BUMPER
- Was 6649040
33 6531494
- 6531494 - SEAT PAN
34 6641356
- 6641356 - LATCH
35 6650683
- 6650683 - KEY SET
36 6534499
- 6534499 - BOLT
37 6512909
- 6512909 - NUT
38 6562266
- 6562266 - CLAMP TUBE
39 6531154
- 6531154 - ADAPTER
40 6583742
- 6583742 - FLOORMAT
