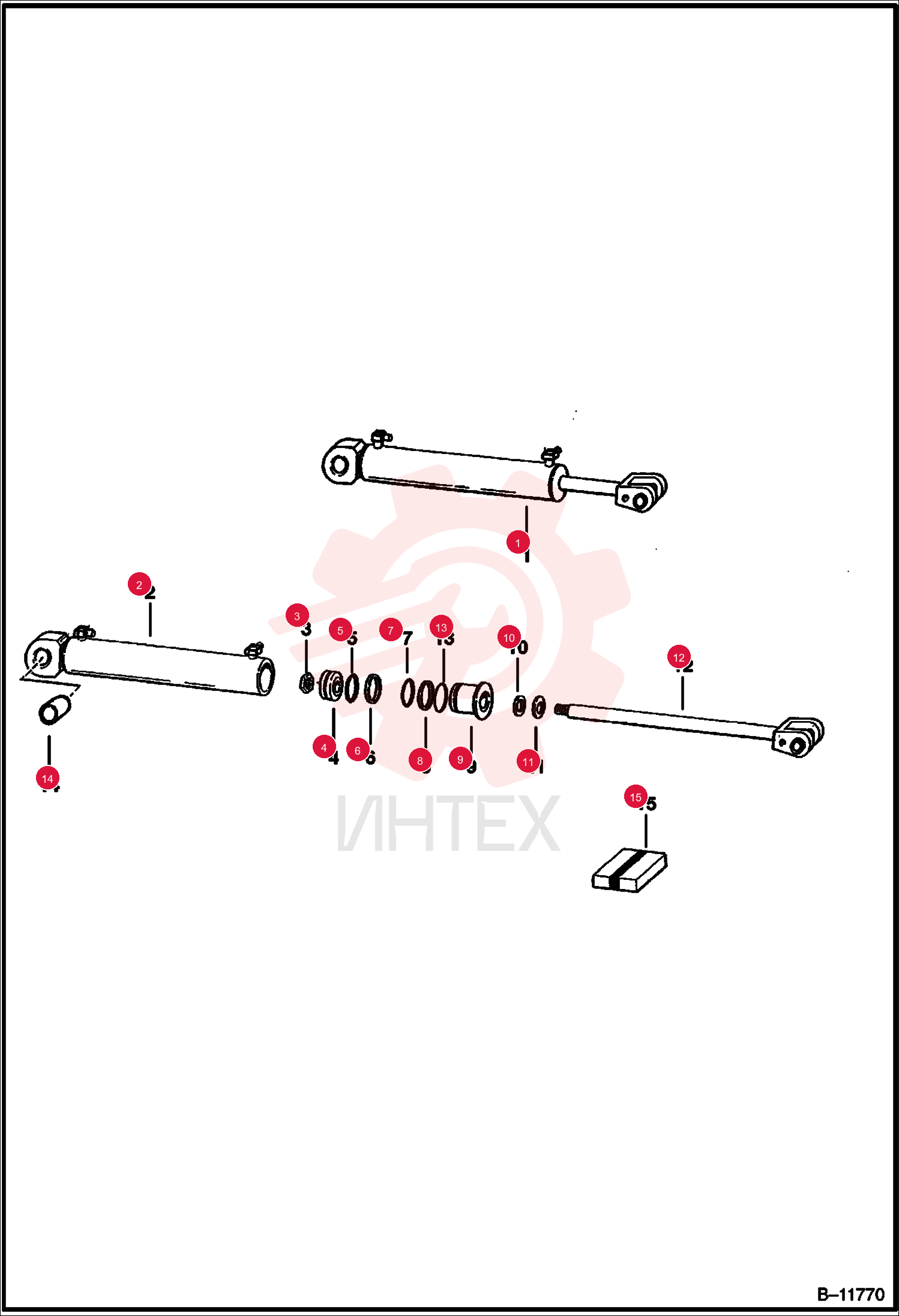

CYLINDER 6530324 (1)

CYLINDER 6530324 (1)

CYLINDER 6530324 (1)

1 6530324

  • 6530324 - CYLINDER
  • Ref. 2-14

2 6586202

  • 6586202 - CASE
  • W/Ref. 14

3 92D14

  • 92D14 - NUT
  • Was 86D000014B

4 6529976

  • 6529976 - PISTON

5 6586342

  • 6586342 - HEAD
  • CYL
  • Was 6529998

6 6588903

  • 6588903 - ROD
  • W/Ref. 13 - Was 6529973

7 6645263

  • 6645263 - BEARING

8 6589872

  • 6589872 - SEAL KIT
  • W/Ref. 5-8
  • 10
  • 11 & 13 - Was 6586203
