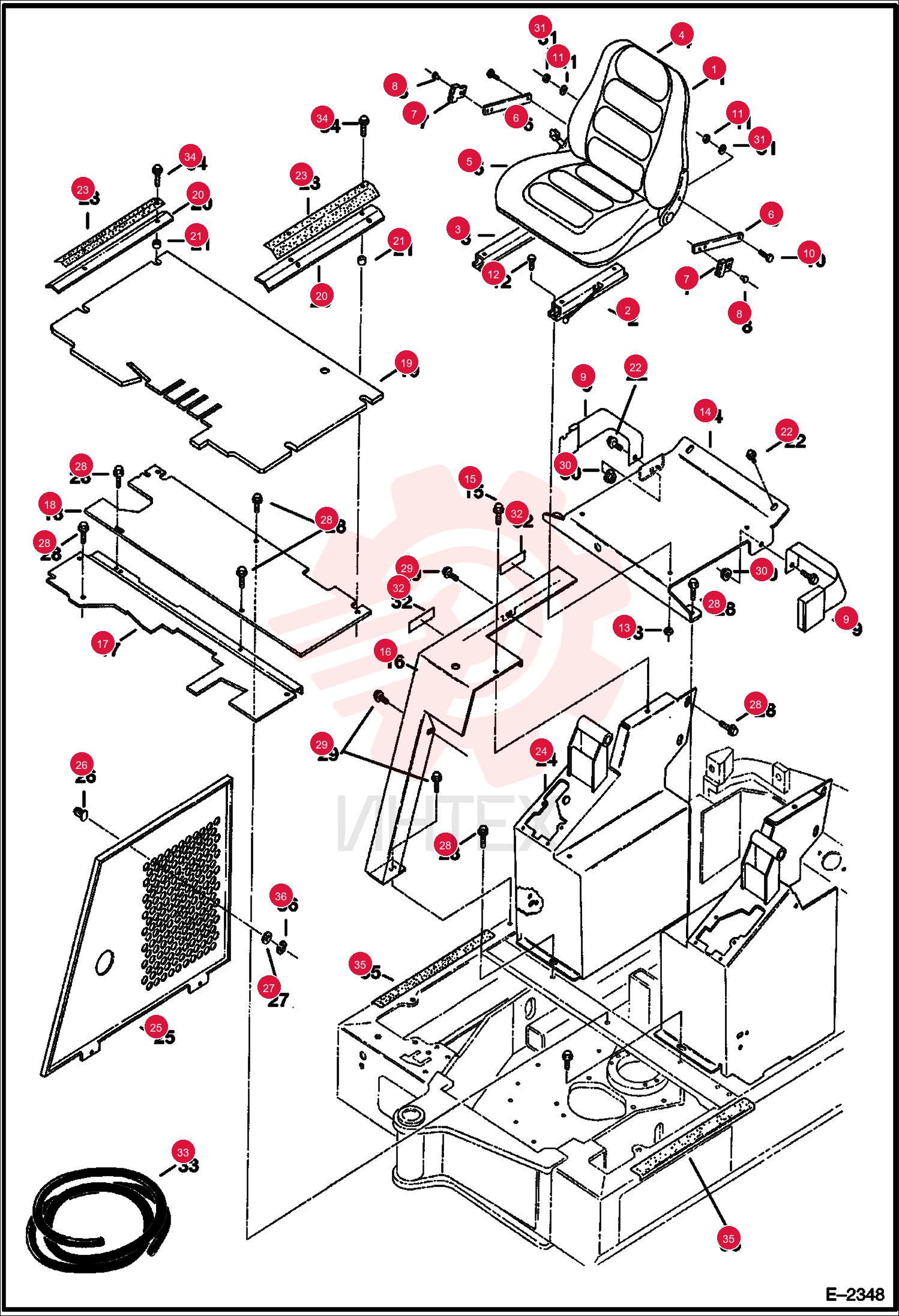

SEAT, OPERATOR SUSPENSION
1 6632388
- 6632388 - SEAT
- OPERATOR SUSPENSION
- W/Ref. 2-5
2 3737000
- 3737000 - ADJ-LATCH
- W/Adjuster handle
3 3737001
- 3737001 - ADJUSTER
- W/O Adjuster handle
4 3737081
- 3737081 - CUSHION
- SEAT BACK VINYL
- Back rest
5 3737010
- 3737010 - CUSHION
- SEAT
- Seat
6 6587500
- 6587500 - GUIDE ASSEMBLY
- Seat belt - W/Ref. 7 & 8
7 6630207
- 6630207 - RIVET POP
8 6564774
- 6564774 - SEAT BELT
9 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
10 4DM10
- 4DM10 - NUT HEX
- Was 1DM00010B
11 3GM820
- 3GM820 - SCREW
- Was 1CM00816B
12 4DM8
- 4DM8 - NUT HEX
- Was 1DM00008B
13 6801036
- 6801036 - MOUNT
- Seat mount
14 6589675
- 6589675 - SCREW
15 6801431
- 6801431 - PANEL
- R.H. - W/Standard undercarriage
16 6805256
- 6805256 - ANGLE
- R.H. - W/Expandable undercarriage
17 6801981
- 6801981 - PLATE
- FLOOR
- Front
18 6801729
- 6801729 - PLATE
- FLOOR
- Rear
19 6801731
- 6801731 - FLOORMAT
- Canopy models
20 6801730
- 6801730 - FLOORMAT
- Cab models
21 6588250
- 6588250 - ANGLE
- Floormat retainer
22 6503451
- 6503451 - SPACER
23 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
24 6593245
- 6593245 - TREAD
- SAFETY
25 6800998
- 6800998 - SUPPORT
- R.H. mount
26 6801432
- 6801432 - PANEL
- R.H.
27 6587458
- 6587458 - KEY CAP FUEL 2
28 6674389
- 6674389 - LOCK
- W/Ref. 36 - Was 6661695
29 6536802
- 6536802 - WASHER
30 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
31 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Flange head
32 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
- Was 45DM00010B
33 6EM100
- 6EM100 - WASHER
34 26GM10030
- 26GM10030 - SCREW SELF TAPPING
- Self Tapping
35 6588953
- 6588953 - TREAD
- SAFETY
36 6675843
- 6675843 - NUT
