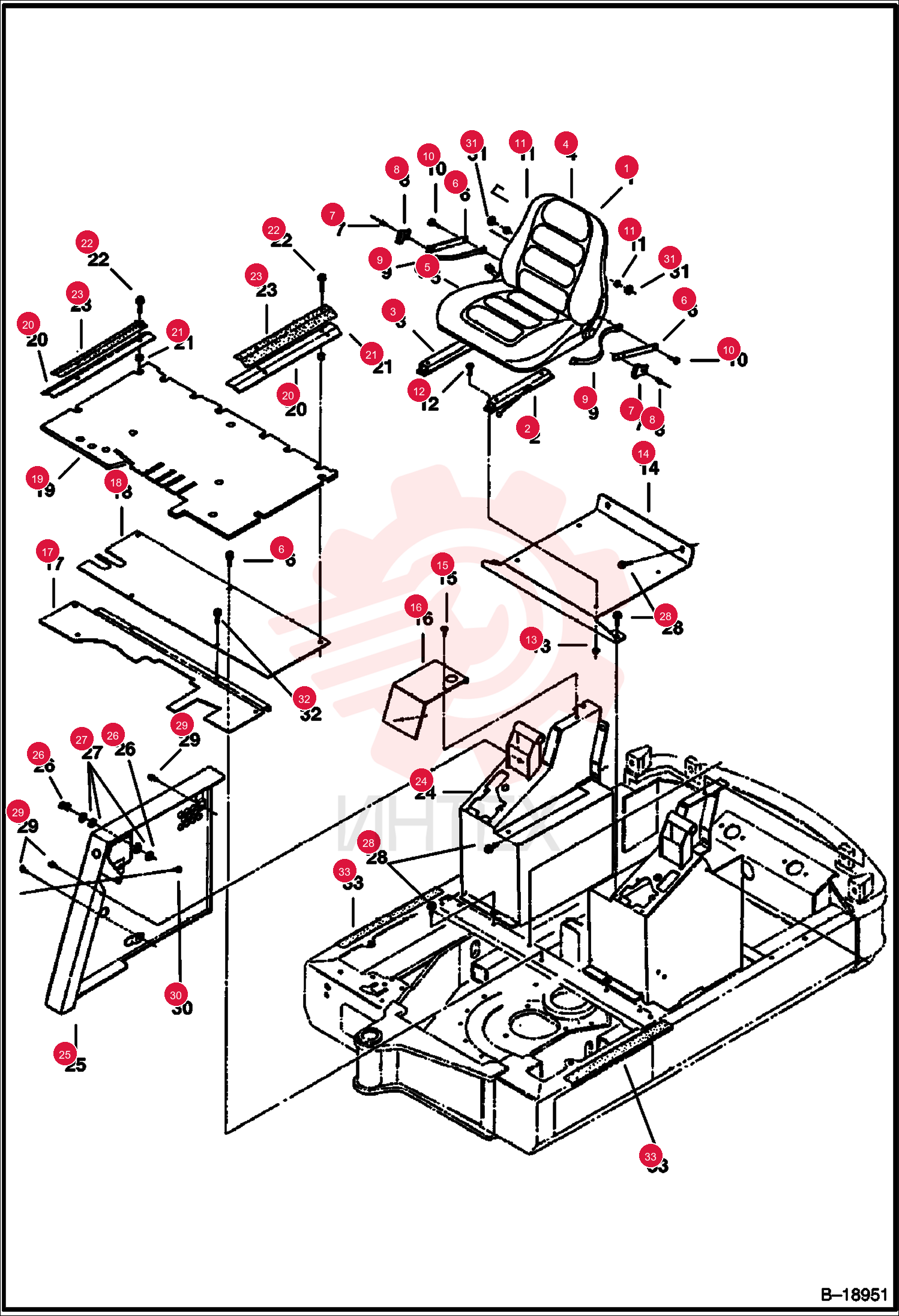

SEAT, OPERATOR SUSPENSION
1 6632388
- 6632388 - SEAT
- OPERATOR SUSPENSION
- W/Ref. 2-5
2 3737000
- 3737000 - ADJ-LATCH
- W/Adjuster handle
3 3737001
- 3737001 - ADJUSTER
- W/O Adjuster handle
4 3737081
- 3737081 - CUSHION
- SEAT BACK VINYL
- Back rest
5 3737010
- 3737010 - CUSHION
- SEAT
- Seat
6 6587500
- 6587500 - GUIDE ASSEMBLY
- Seat belt - W/Ref. 7 & 8
7 6630207
- 6630207 - RIVET POP
8 6564774
- 6564774 - SEAT BELT
9 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
10 49DM10
- 49DM10 - NUT
11 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
12 1DM8
- 1DM8 - NUT
13 6588162
- 6588162 - PAN
- Seat Mount
14 6587499
- 6587499 - SCREW
- Phillips Head
15 6589675
- 6589675 - SCREW
- Self Tapping Torx Head
16 6587967
- 6587967 - COVER
- R.H.
17 6801981
- 6801981 - PLATE
- FLOOR
- Front - Was 6588254
18 6588248
- 6588248 - FLOORBOARD
- Rear
19 6588429
- 6588429 - FLOORMAT
- Cab Models
20 6589891
- 6589891 - FLOORMAT
- Cab Models
21 6588250
- 6588250 - ANGLE
- Floormat Retainer
22 6503451
- 6503451 - SPACER
23 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
24 6593245
- 6593245 - TREAD
- SAFETY
25 6587944
- 6587944 - CONSOLE
- R.H. Mount
26 6589382
- 6589382 - CONSOLE
- R.H. Mount
27 6588032
- 6588032 - COVER
- R.H
28 6674389
- 6674389 - LOCK
- Hydraulic Fill Door - W/Keys - Was 6661695
29 6587458
- 6587458 - KEY CAP FUEL 2
30 6536802
- 6536802 - WASHER
31 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Was 29CM-1016
32 29CM816
- 29CM816 - SCREW FLGD HEX CAP
- Flange Head
33 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self Tapping Flange Head
34 1CM812
- 1CM812 - SCREW HEX HD 8.8
35 6EM100
- 6EM100 - WASHER
36 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
37 6588953
- 6588953 - TREAD
- SAFETY
