Bobcat
/
324.0
/

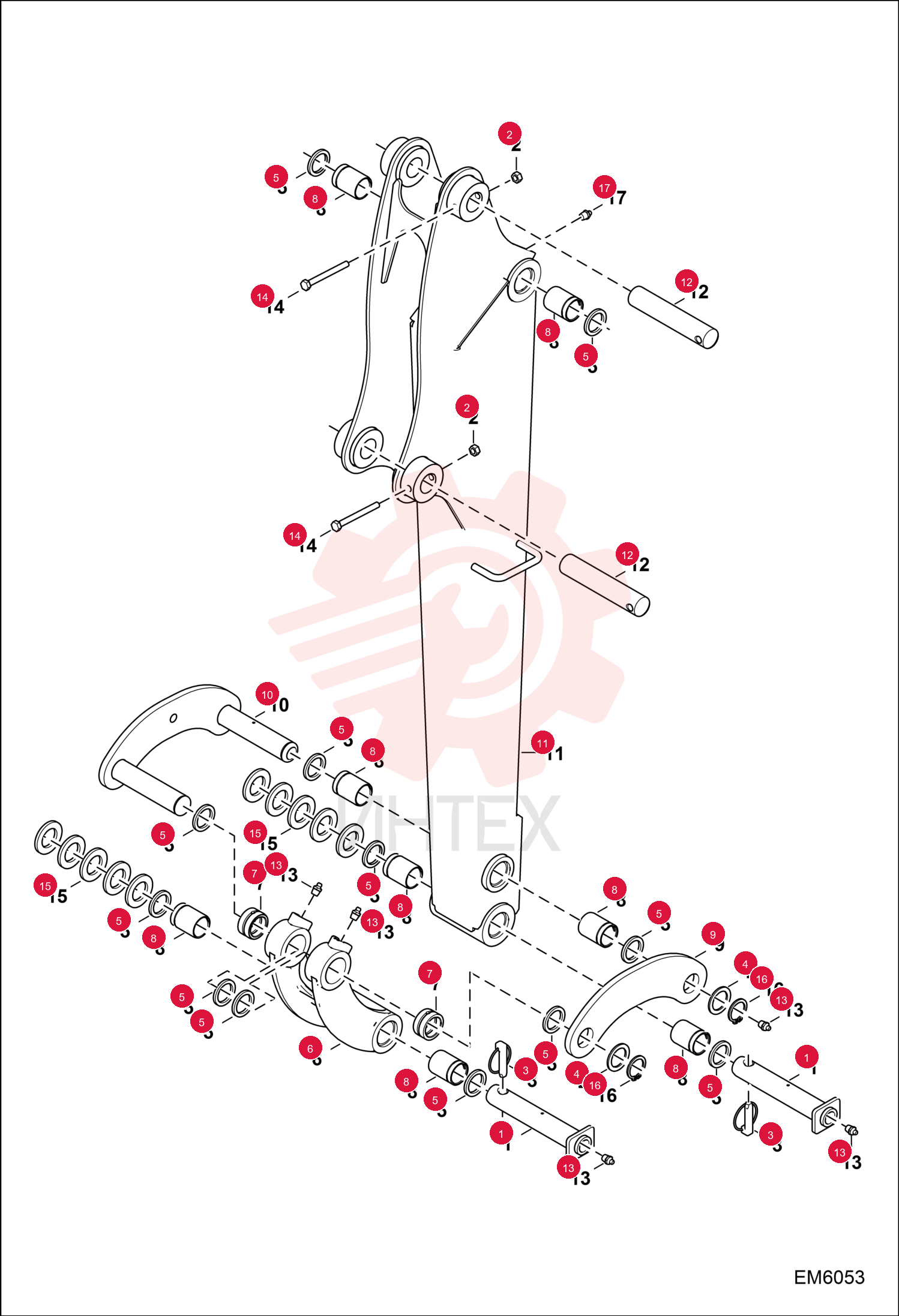

PIN, PIVOT

PIN, PIVOT

PIN, PIVOT

1 6539737

  • 6539737 - PIN
  • PIVOT

2 16DM8

  • 16DM8 - NUT
  • Was 4DM8

3 6560382

  • 6560382 - PIN
  • LOCK

4 6589699

  • 6589699 - WASHER

5 6653534

  • 6653534 - SEAL
  • OIL 5

6 6802218

  • 6802218 - LINK
  • BUCKET MACHINED
  • Was 7302031

7 6802588

  • 6802588 - BUSHING
  • PRESS FIT

8 7100276

  • 7100276 - BUSHING

9 7107768

  • 7107768 - LINK
  • GUIDE LOOSE

10 7107769

  • 7107769 - LINK WA
  • GUIDE

11 7168259

  • 7168259 - ARM LONG W/A

12 7176919

  • 7176919 - PIN

13 10H25

  • 10H25 - FTG GREASE STRAIGHT

14 1CM875

  • 1CM875 - BOLT
  • Was 1CM880

15 1EM280

  • 1EM280 - WASHER
  • FLAT
  • Was 1EM270

16 22J19

  • 22J19 - SNAP RING

17 10H35

  • 10H35 - FTG GREASE STRAIGHT
  • straight
