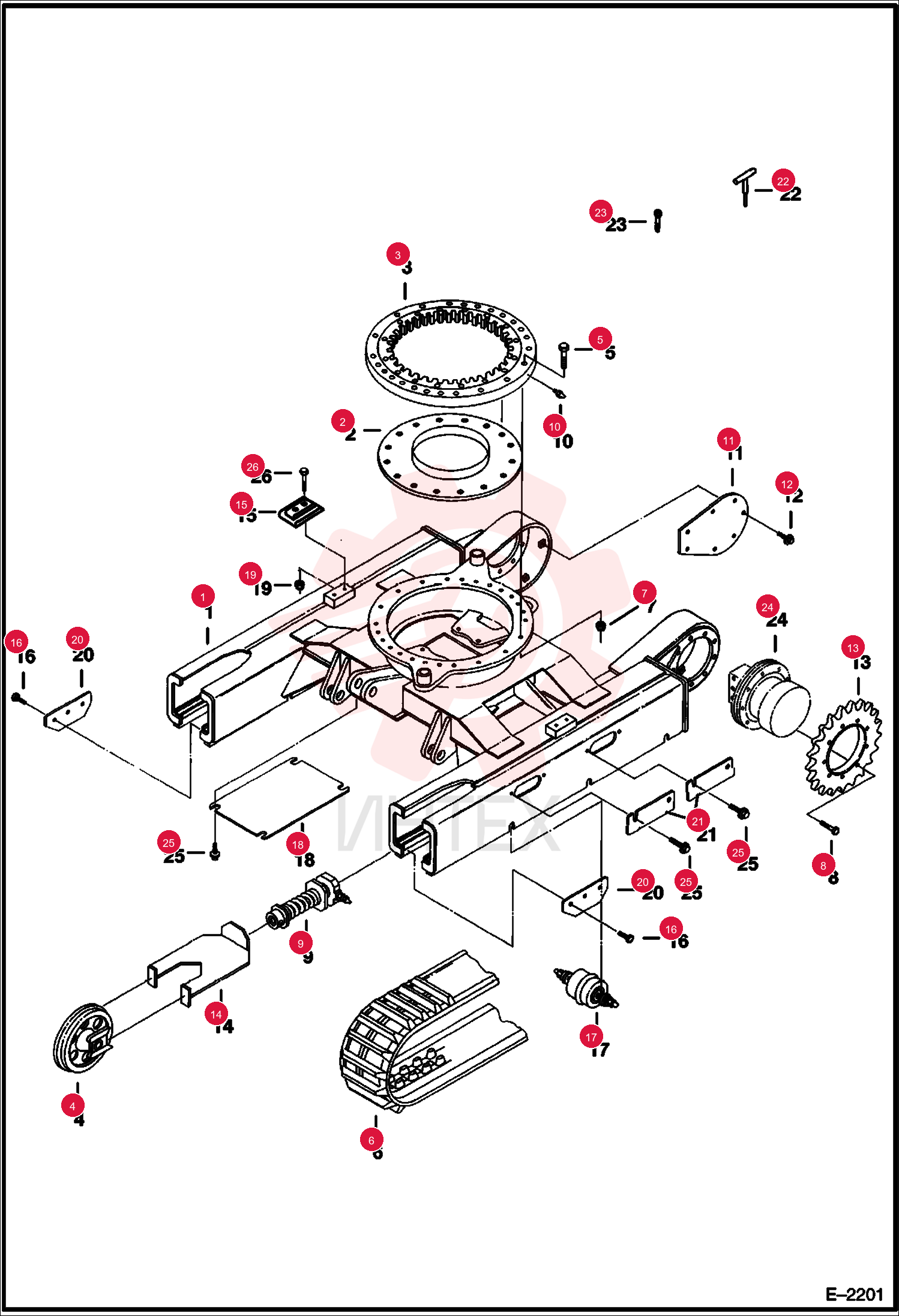

FRAME, TRACK
1 6535690
- 6535690 - FRAME
- TRACK
2 6535548
- 6535548 - SHIELD
3 6652960
- 6652960 - SEAL
- Swing Circle - Include W/Ref. 3
4 6534237
- 6534237 - IDLER
- - front
5 7CM1280
- 7CM1280 - BOLT
6 47DM12
- 47DM12 - NUT HEX FLNG MPT
7 4CM1235
- 4CM1235 - BOLT
- Use W/Som drive motor - Was 1CM1235
8 1CM1250
- 1CM1250 - BOLT
- Use W/Kayaba Drive Motor
9 6535547
- 6535547 - COVER
10 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
11 6587308
- 6587308 - SPROCKET
- 21 Tooth - Use W/Kayaba Motor 6652841
12 6814137
- 6814137 - SPROCKET
- MOTOR DRIVE TRACK
- 21 Tooth - Use W/Som Motor 6668135 - Service Replacement Usage Only - Not Factory Installed - Was 6811940
13 6535538
- 6535538 - BRACKET
- Idler
14 6534234
- 6534234 - PLATE
- SLIDE
15 1CM1025
- 1CM1025 - BOLT
16 6534243
- 6534243 - ROLL ASY.
17 6535546
- 6535546 - COVER
18 45DM10
- 45DM10 - NUT 10
19 6534236
- 6534236 - PLATE
- Steel Track
20 6537618
- 6537618 - PLATE
- Rubber Track
21 6539292
- 6539292 - COVER
22 6586494
- 6586494 - PIN
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
23 6535902
- 6535902 - BOLT
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
24 6668135
- 6668135 - MOTOR
- DRIVE HYD
- - drive - Was 6667337
25 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self Tapping
26 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
- Use With Ref. 19 (45DM00010B Nut)
27 1CM1025
- 1CM1025 - BOLT
- Use W/Tapped Mounting Plate
