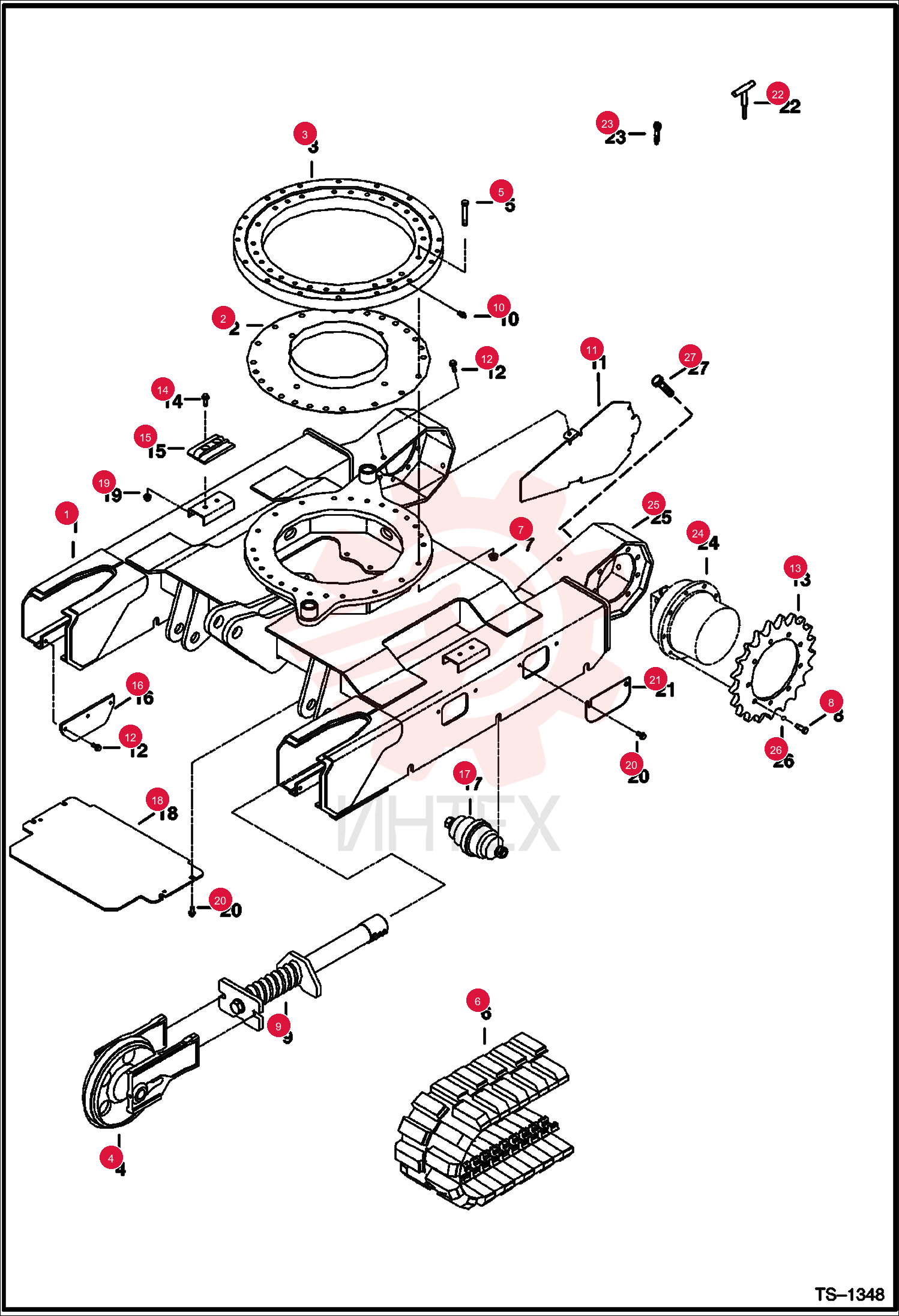

SHIELD
1 6535548
- 6535548 - SHIELD
2 6655124
- 6655124 - RING
- SLEW
- Assy. - 96 Teeth on Gear
3 7CM1280
- 7CM1280 - BOLT
4 51DM12
- 51DM12 - NUT
5 55CM1235
- 55CM1235 - BOLT
- Was 1CM01235B
6 6808255
- 6808255 - COVER
- 4.27" side
7 6596689
- 6596689 - COVER
- 3.21" side
8 26GM10030
- 26GM10030 - SCREW SELF TAPPING
9 6814137
- 6814137 - SPROCKET
- MOTOR DRIVE TRACK
- 21 tooth - 9 hole - Was 6811940
10 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
11 6534234
- 6534234 - PLATE
- SLIDE
12 6596396
- 6596396 - PLATE
- guide - steel track
13 6597346
- 6597346 - COVER
14 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
15 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self Tapping
16 6596723
- 6596723 - COVER
17 6586494
- 6586494 - PIN
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
18 6535902
- 6535902 - BOLT
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
19 6596688
- 6596688 - PLATE
- Drive Motor Mount - Weld-on
20 18EM1224
- 18EM1224 - WASHER HARDENED PLN
21 55CM1225
- 55CM1225 - BOLT
