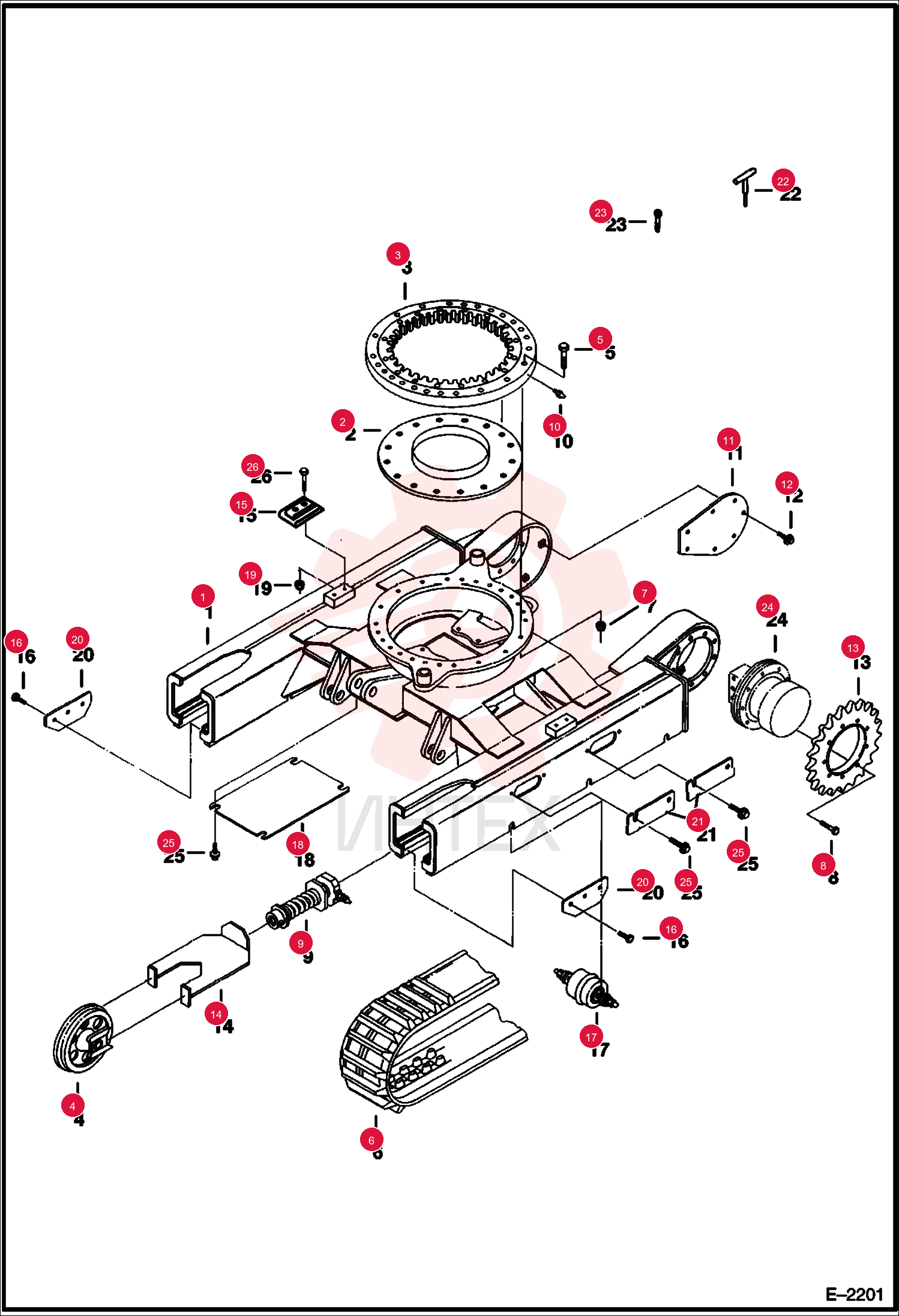

FRAME, TRACK
1 6535690
- 6535690 - FRAME
- TRACK
2 6535548
- 6535548 - SHIELD
3 6655124
- 6655124 - RING
- SLEW
- Assy. - 96 Teeth on Gear
4 7CM1280
- 7CM1280 - BOLT
5 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
- Was 47DM00012B
6 4CM1235
- 4CM1235 - BOLT
- Use W/ 6587310 sprocket - Was 1CM1235
7 1CM1250
- 1CM1250 - BOLT
- Use with Sprocket 6587308
8 6535547
- 6535547 - COVER
9 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
10 6814137
- 6814137 - SPROCKET
- MOTOR DRIVE TRACK
- 21 tooth - used with drive motor 6667337 - Use W/SOM Motor - Was 6811940
11 6587308
- 6587308 - SPROCKET
- 21 Tooth - used with drive motor 6652841 - Use W/Kayaba Motor
12 6535538
- 6535538 - BRACKET
- Idler
13 6534234
- 6534234 - PLATE
- SLIDE
14 1CM1025
- 1CM1025 - BOLT
15 6535546
- 6535546 - COVER
- Was NLA
16 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
- Was 45DM00010B
17 6534236
- 6534236 - PLATE
- Steel Track
18 6537618
- 6537618 - PLATE
- Rubber Track
19 6596723
- 6596723 - COVER
- Was 6539292
20 6586494
- 6586494 - PIN
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
21 6535902
- 6535902 - BOLT
- Alignment - Service Tool for Aligning Swing Bearing when Upperstructure has been Removed from Undercarriage
22 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self Tapping
23 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
