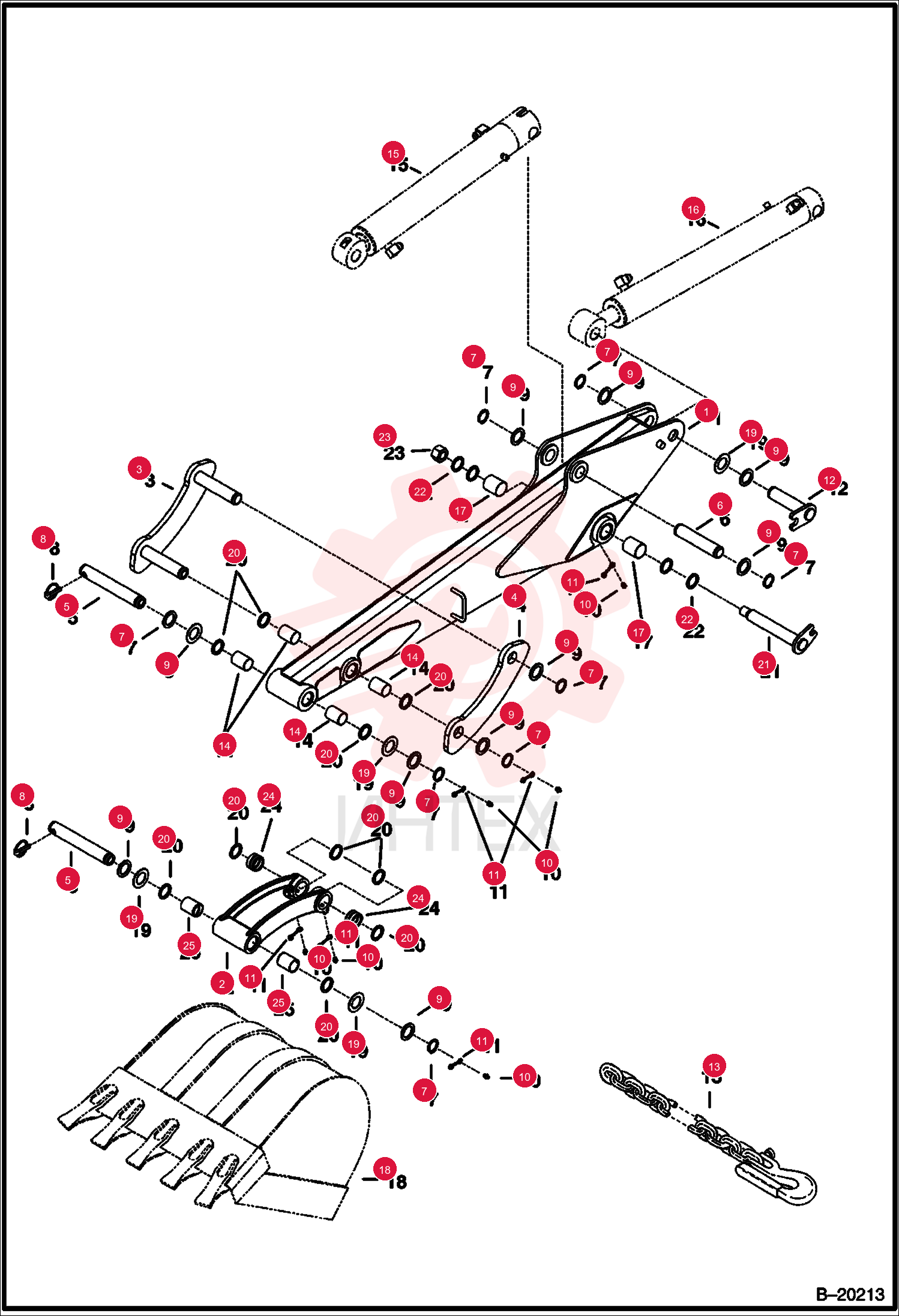

ARM
1 6803893
- 6803893 - ARM
- W/Ref. 14 & 16 - Was 6803808
2 6805374
- 6805374 - LINK
- BUCKET MACHINED ASSY
- Was 6803212
3 7173235
- 7173235 - LINK
- GUIDE W/A
- Was 7127600
4 7173234
- 7173234 - LINK
- GUIDE
- Was 7129624
5 6534115
- 6534115 - PIN
- PIVOT
6 6596216
- 6596216 - PIN
- Was 6595660
7 6534154
- 6534154 - RING
- RETAINER
8 6560382
- 6560382 - PIN
- LOCK
9 6534111
- 6534111 - WASHER
- 5
10 10H25
- 10H25 - FTG GREASE STRAIGHT
11 6652943
- 6652943 - COVER
- grease fitting
12 6595222
- 6595222 - PIN
- Arm mounting
13 6665374
- 6665374 - CHAIN
- lifting
14 6539825
- 6539825 - BUSHING
- PRESS FIT
- Incl. W/Arm 6595344 - 1 3/4 '' (45mm) Long
15 6803213
- 6803213 - BUSHING
- PRESS FIT
- Incl. W/Arm 6803808 - 2'' (51mm) Long
16 6539110
- 6539110 - BUSHING
- PRESS FIT
- Incl. W/Arm 6595344 - 1.9'' (48mm) Long
17 6815277
- 6815277 - BUSHING
- Incl. W/Arm 6803808 - 2'' (51mm) Long - Was 6803207
18 6535313
- 6535313 - WASHER
19 6652915
- 6652915 - SEAL
- OIL
- seal
20 6596238
- 6596238 - PIN
- PIVOT
- pin
21 1EM380
- 1EM380 - WASHER
22 53DM30
- 53DM30 - NUT
- nut
23 6803309
- 6803309 - BUSHING
- PRESS FIT
- Use W/Link 6803212
24 6803213
- 6803213 - BUSHING
- PRESS FIT
- Use W/Link 6803212
