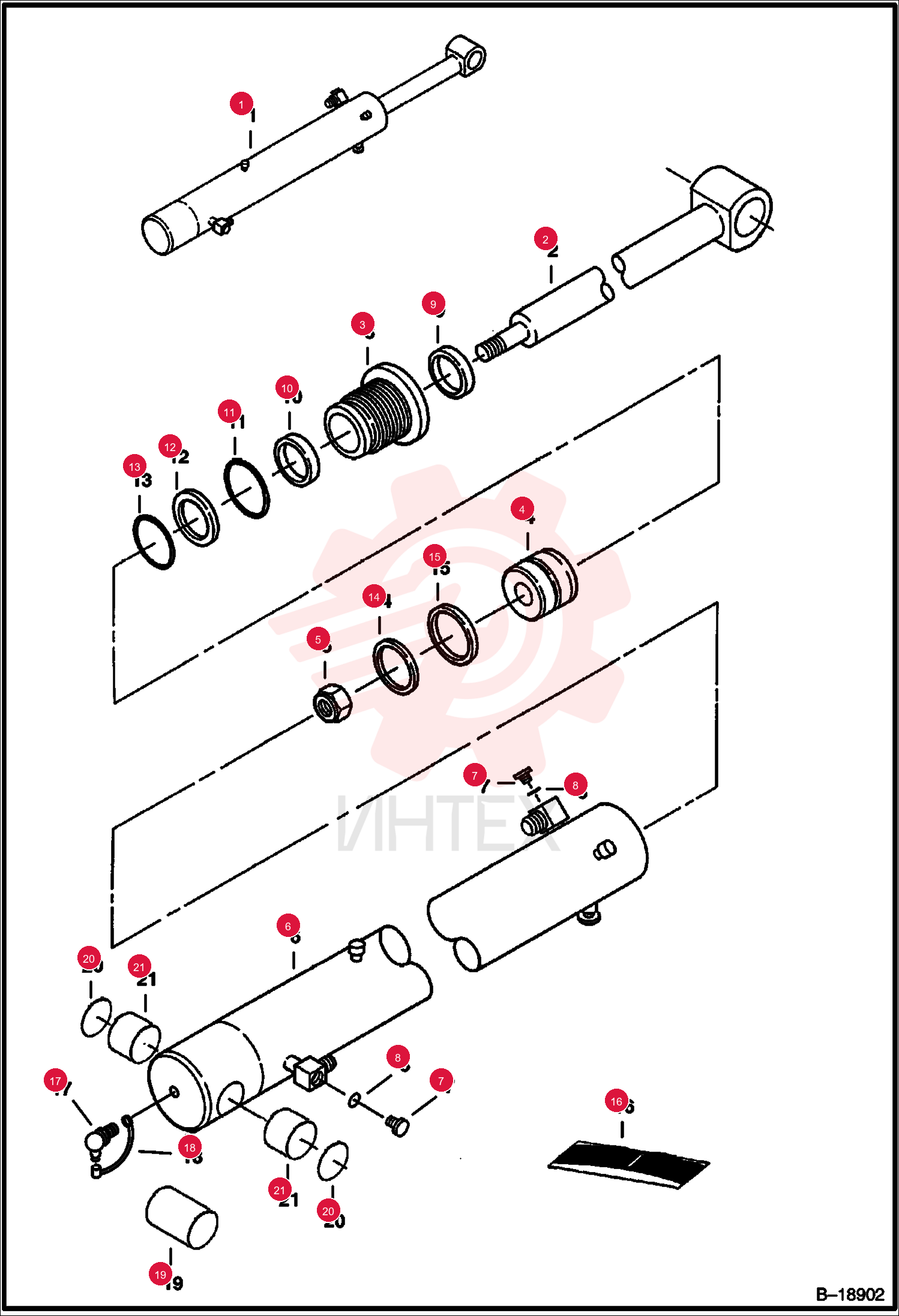

ROD
1 6802052
- 6802052 - ROD
2 6586570
- 6586570 - HEAD
3 6802051
- 6802051 - PISTON
4 6810540
- 6810540 - NUT
- Was 92D000020B
5 6812171
- 6812171 - PLUG
- W/Ref. 8 - flat boss face - hex head
6 24K5
- 24K5 - PLUG
- W/Ref. 8 - tapered boss face - socket allen head - Was 90KV5
7 75K6
- 75K6 - O-RING
- flat boss face - for 6812171 plug
8 95K6
- 95K6 - O'RING
- for tapered boss face
9 79K6
- 79K6 - O RING 10
- for flat boss face
10 6686999
- 6686999 - WIPER
- ROD CYL
- Was 6666544
11 6667327
- 6667327 - SEAL
- ROD
12 82K236
- 82K236 - O-RING
- Was 58K000236B
13 73K234
- 73K234 - RING
- BACK-UP
- back-up - Was 80K234
14 54K40300
- 54K40300 - O-RING
- Was 58K234
15 54K40300
- 54K40300 - O-RING
- Was 58K234
16 6513466
- 6513466 - PISTON RG
17 6810721
- 6810721 - SEAL KIT
- Ref. 5 & 9-15 - Was 6803530
18 12H15
- 12H15 - FTG GREASE 90
19 6652943
- 6652943 - COVER
- grease fitting
20 6596578
- 6596578 - BUSHING
- Use W/Cylinder 6802050 and Housing 6596580
21 6652915
- 6652915 - SEAL
- OIL
- Dust - Use W/Cylinder 6803801 only
22 6803982
- 6803982 - BUSHING
- Use W/Cylinder 6803801 and Housing 6803811
