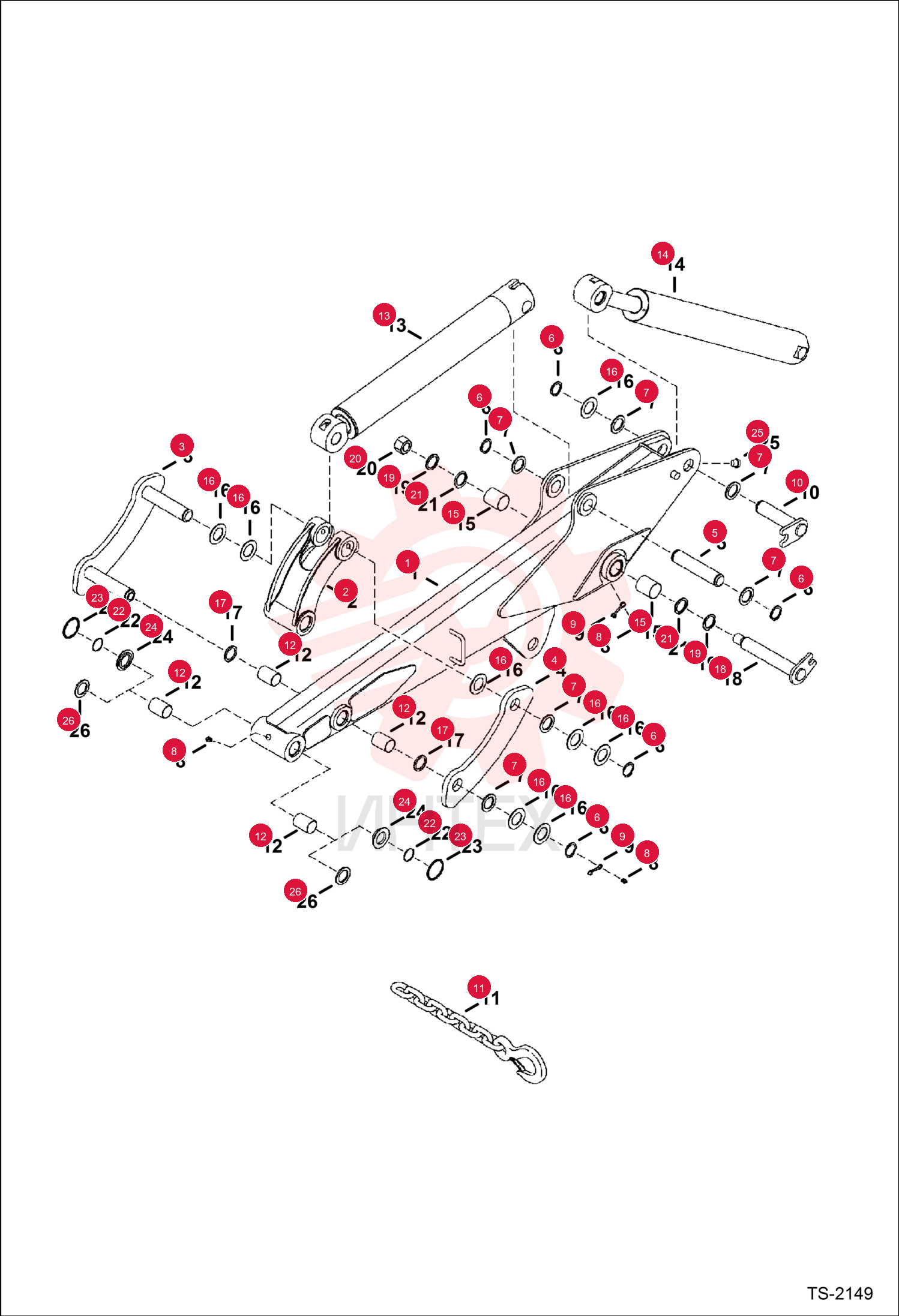

ARM
1 6812290
- 6812290 - ARM
- standard arm - Also Order (4) of Ref. 12
- (2) of Ref. 15
- 17
- 21
- 22
- & 24 - Also Order (2) of Ref. 23 & (2) 6810525 bushings if 6812421 latching or 6812423 bolt on X-Change is used - Was 6803893
2 6805374
- 6805374 - LINK
- BUCKET MACHINED ASSY
3 7173235
- 7173235 - LINK
- GUIDE W/A
- Was 7127600
4 7173234
- 7173234 - LINK
- GUIDE
- Was 7129624
5 6596216
- 6596216 - PIN
6 6534154
- 6534154 - RING
- RETAINER
7 6534111
- 6534111 - WASHER
- 5
8 10H25
- 10H25 - FTG GREASE STRAIGHT
9 6652943
- 6652943 - COVER
- grease fitting
10 6595222
- 6595222 - PIN
- arm mounting
11 6665374
- 6665374 - CHAIN
- lifting
12 6539825
- 6539825 - BUSHING
- PRESS FIT
- 1.772" (45 mm) x 1.762" (44.75 mm)
13 6803213
- 6803213 - BUSHING
- PRESS FIT
- 1.578" (40 mm) x 2" (51 mm)
14 6539110
- 6539110 - BUSHING
- PRESS FIT
- Use W/Arm 6595344 - 1.89" (48 mm) x 1.97" (50 mm)
15 6815277
- 6815277 - BUSHING
- 2" (51 mm) long - Was 6803207
16 6535313
- 6535313 - WASHER
- install as required
17 6652915
- 6652915 - SEAL
- OIL
- dust
18 6596238
- 6596238 - PIN
- PIVOT
19 1EM380
- 1EM380 - WASHER
20 53DM30
- 53DM30 - NUT
21 6660075
- 6660075 - SEAL
- dust
22 25K40112
- 25K40112 - O RING 10
- Use on 6812290 arm W/Ref. 23 & 24
23 6811260
- 6811260 - O-RING
- Use on 6812290 & arm W/Ref. 22 & 24 if 6812421 latching or 6812423 bolt on X-Change is used
24 6810627
- 6810627 - WASHER
- Use on 6812290 & arm W/Ref. 22 & 23
25 6597572
- 6597572 - BUMPER
26 6652915
- 6652915 - SEAL
- OIL
- dust - used on arms prior to 6812290
