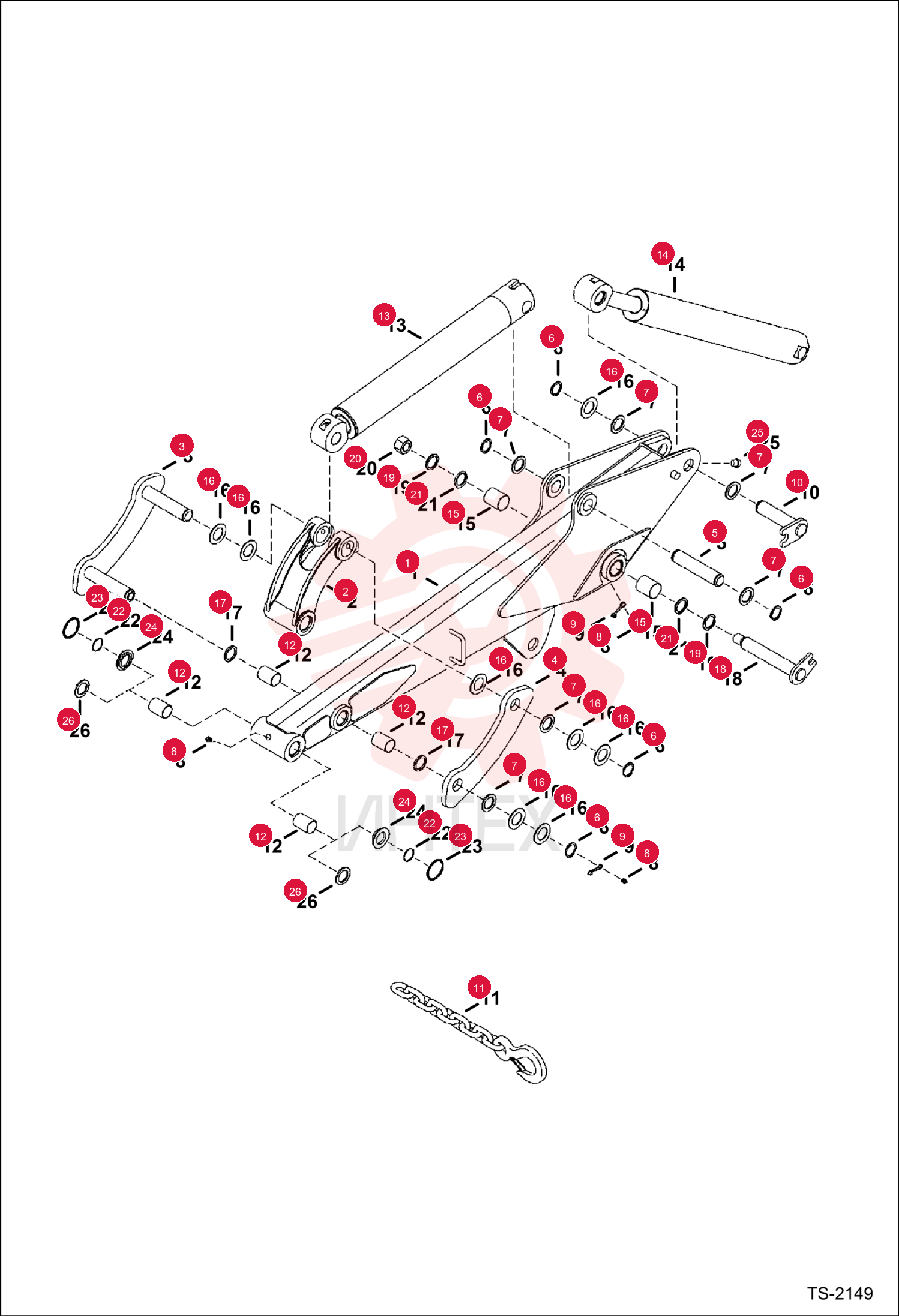

ARM,LONG
1 6812291
- 6812291 - ARM
- LONG
- long arm - Also Order (4) of Ref. 12
- (2) of Ref. 15
- 17
- 21
- 22
- & 24 - Also Order (2) of Ref. 23 & (2) 6810525 bushings if 6812421 latching or 6812423 bolt on X-Change is used
2 6812290
- 6812290 - ARM
- standard arm - Also Order (4) of Ref. 12
- (2) of Ref. 15
- 17
- 21
- 22
- & 24 - Also Order (2) of Ref. 23 & (2) 6810525 bushings if 6812421 latching or 6812423 bolt on X-Change is used
3 7173235
- 7173235 - LINK
- GUIDE W/A
- Was 7127600
4 7173234
- 7173234 - LINK
- GUIDE
- Was 7129624
5 6596216
- 6596216 - PIN
6 6534154
- 6534154 - RING
- RETAINER
7 6534111
- 6534111 - WASHER
- 5
8 10H25
- 10H25 - FTG GREASE STRAIGHT
9 6652943
- 6652943 - COVER
- grease fitting
10 6595222
- 6595222 - PIN
- Arm mounting
11 6665374
- 6665374 - CHAIN
- lifting
12 6803213
- 6803213 - BUSHING
- PRESS FIT
13 6815277
- 6815277 - BUSHING
- Was 6803207
14 6811636
- 6811636 - SPACER
15 6652915
- 6652915 - SEAL
- OIL
- Dust
16 6596238
- 6596238 - PIN
- PIVOT
17 1EM380
- 1EM380 - WASHER
18 53DM30
- 53DM30 - NUT
19 6660075
- 6660075 - SEAL
- Dust
20 25K40112
- 25K40112 - O RING 10
21 6811260
- 6811260 - O-RING
22 6810627
- 6810627 - WASHER
- thrust - press in
23 6597572
- 6597572 - BUMPER
24 6652915
- 6652915 - SEAL
- OIL
- dust
