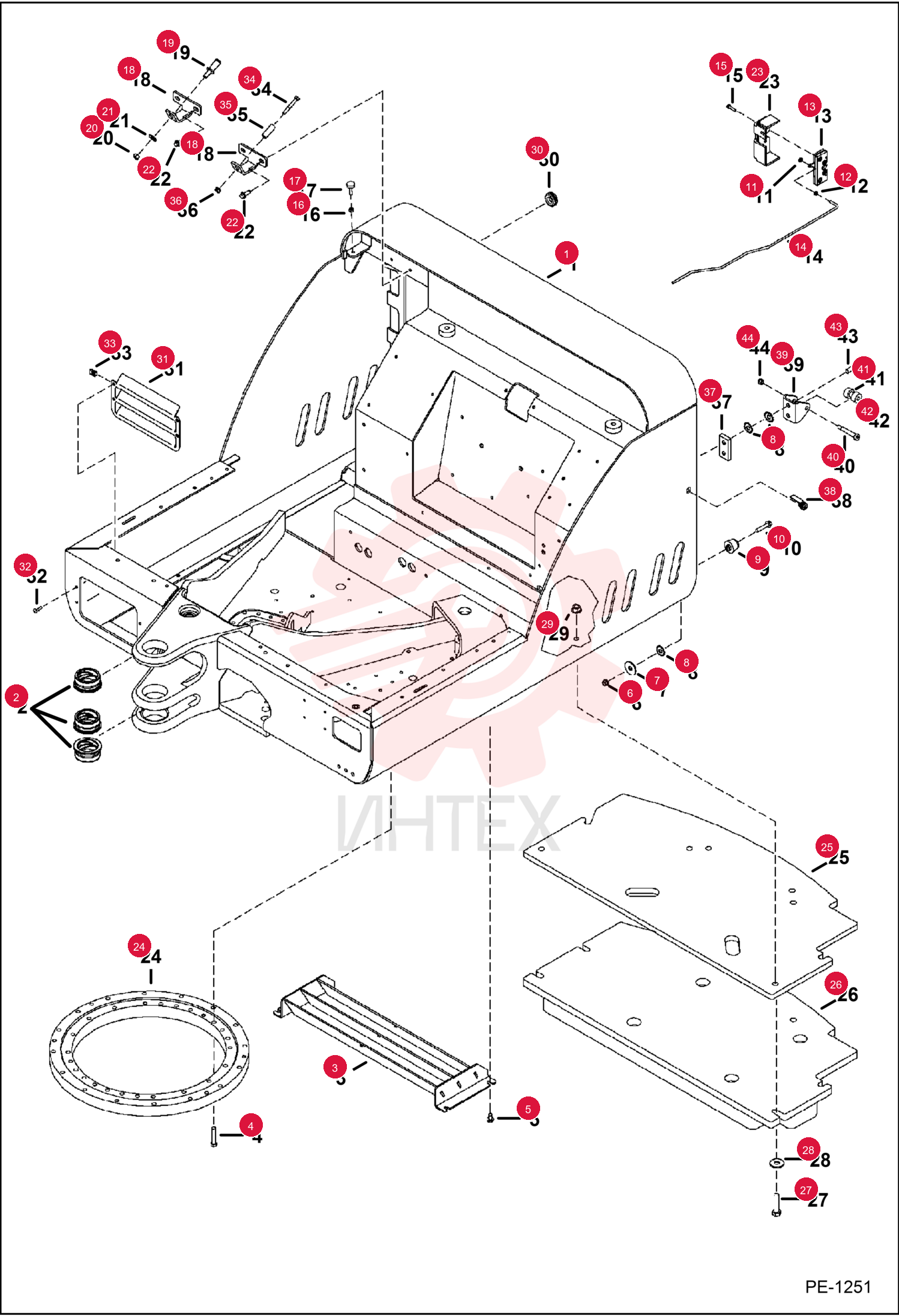

UPPERSTRUCTURE
1 6810129
- 6810129 - UPPERSTRUCTURE
- - Order 6810129
- Ref. 37- 44
- all items on Ill. PE-1405
2 6808306
- 6808306 - HINGE PLATE
3 6807956
- 6807956 - BUSHING
4 6808051
- 6808051 - LOUVER
5 55CM1260
- 55CM1260 - SCREW
- Was 7CM01260B
6 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
7 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
8 6560899
- 6560899 - WASHER
9 6675273
- 6675273 - WASHER
10 6808365
- 6808365 - BUMPER
11 29CM1050
- 29CM1050 - BOLT
12 85D4
- 85D4 - NUT 5
13 7D4
- 7D4 - NUT HEX JAM
14 6675687
- 6675687 - LATCH
15 6809385
- 6809385 - ROD
16 1CM630
- 1CM630 - SCREW HEX HD 8.8
17 61D5
- 61D5 - NUT HEX FINISHED GR5
18 6655399
- 6655399 - BUMPER
19 6810664
- 6810664 - MOUNT
20 6676341
- 6676341 - STRIKER
21 61D7
- 61D7 - NUT
22 27E6
- 27E6 - WASHER HARDEN PLAIN
23 26GM10030
- 26GM10030 - SCREW SELF TAPPING
24 6808230
- 6808230 - MOUNT
25 6655124
- 6655124 - RING
- SLEW
26 7131894
- 7131894 - PLATE
- COUNTERWEIGHT
- 331 - Was 7125927
27 7126437
- 7126437 - COUNTERWEIGHT
- 331D
- 331ED W/long arm kit & 334D - Was 6810120
28 1CM1665
- 1CM1665 - SCREW
29 25E26
- 25E26 - WASHER
30 51DM16
- 51DM16 - NUT HEX FLNG 10 W/T
31 6810133
- 6810133 - GROMMET
32 6810578
- 6810578 - LOUVER
33 6809030
- 6809030 - SCREW
34 6676026
- 6676026 - NUT
- clip
35 17C640
- 17C640 - BOLT
36 6719550
- 6719550 - TUBE
37 55D6
- 55D6 - NUT
38 6810802
- 6810802 - STRIKER
- bar
39 6678025
- 6678025 - LOCK
- W/O key - Ignition key 6693241
40 6693241
- 6693241 - KEY (2)
- ignition - single key W/O ring
41 6809727
- 6809727 - CHANNEL
42 38C840
- 38C840 - BOLT
43 6809726
- 6809726 - ROLLER
44 6809734
- 6809734 - BUSHING
45 17C820
- 17C820 - BOLT 5
46 59D6
- 59D6 - NUT LOCK HEX PT
