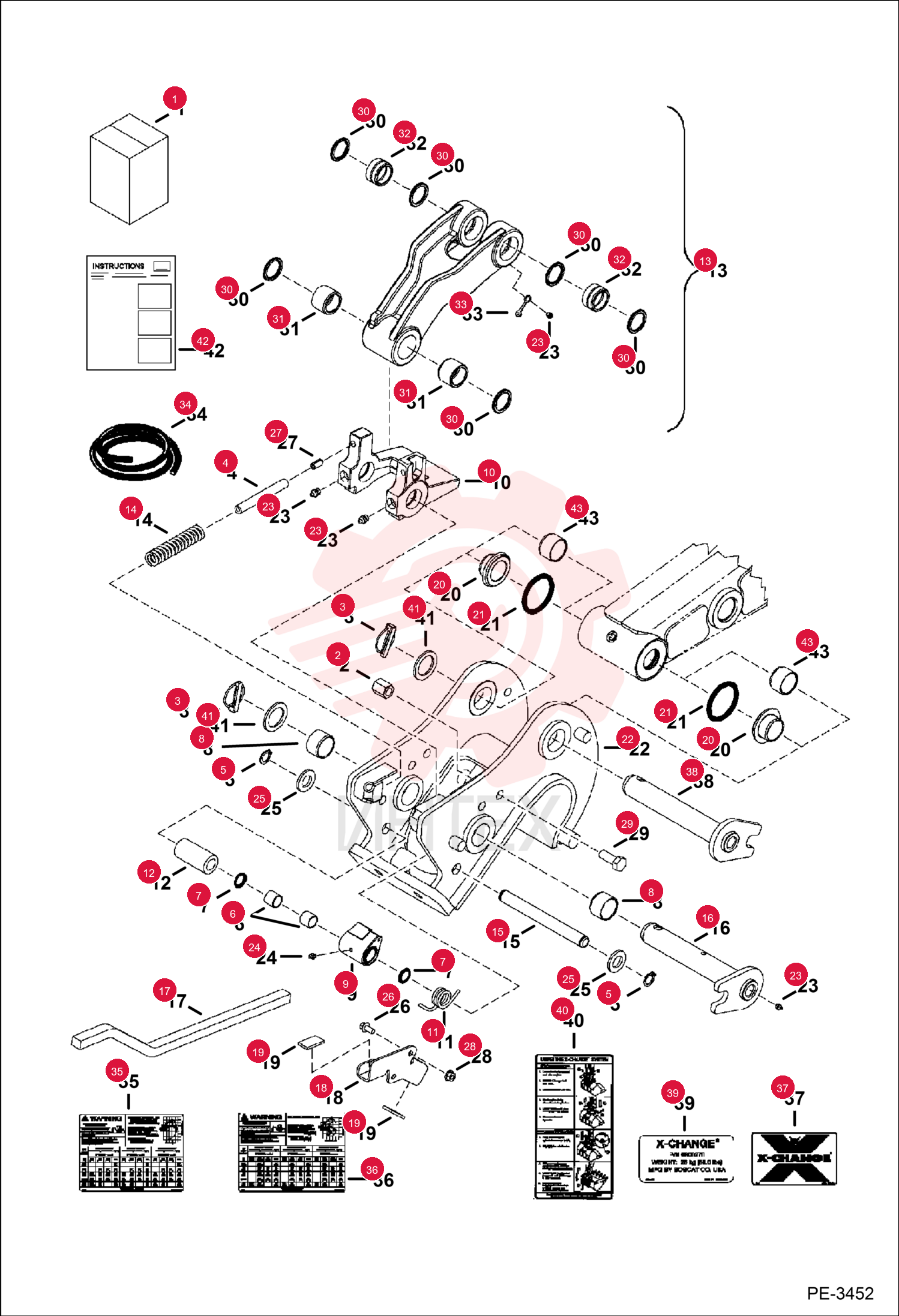

KIT, X-CHANGE W/SEAL
1 6813306
- 6813306 - KIT
- X-CHANGE W/SEAL
- X-Change - W/Ref. 2-42
2 6536748
- 6536748 - NUT
- Lock
3 6560382
- 6560382 - PIN
- LOCK
4 6662745
- 6662745 - SNAP RING
5 6672019
- 6672019 - BUSHING
6 6681505
- 6681505 - SEAL
- dust
7 6802889
- 6802889 - BUSHING
- PRESS FIT
8 6802893
- 6802893 - CATCH
- X-CHANGE
9 6802897
- 6802897 - LATCH
- X-CHANGE KIT
10 6804386
- 6804386 - SPRING
- TORSION
11 6805296
- 6805296 - SPACER
12 6805373
- 6805373 - LINK
- BUCKET MACHINED ASSY
- W/Ref. 23
- 30
- 31
- 32
- & 33
13 6806018
- 6806018 - SPRING
14 6806953
- 6806953 - PIN
- PIVOT X-CHANGE
15 6806971
- 6806971 - PIN
- PIVOT X-CHANGE
16 6807074
- 6807074 - LEVER
- RELEASE
- Release
17 6810241
- 6810241 - BRACKET
18 6810261
- 6810261 - PAD
19 6810525
- 6810525 - BUSHING
- PRESS FIT
- - Ref. 24 - beveled flange - Use W/Ref. 21 on 6812421 X-Change W/arm that does include Ref. 24 thrust washer
20 6813304
- 6813304 - BUSHING
- - Ref. 24 - Use W/ 6812421 X-Change W/arm that doesn't include Ref. 24 thrust washer
21 6811260
- 6811260 - O-RING
- - Ref. 24 - Use W/ 6810525 bushing on 6802421 X-Change W/arm that does include Ref. 24
22 6812421
- 6812421 - X-CHANGE
23 10H25
- 10H25 - FTG GREASE STRAIGHT
- straight
24 10H35
- 10H35 - FTG GREASE STRAIGHT
- grease
25 25E27
- 25E27 - WASHER
26 29CM816
- 29CM816 - SCREW FLGD HEX CAP
27 2JM1020
- 2JM1020 - ROLL PIN
- Spring
28 43DM8
- 43DM8 - NUT FLANGED HEX
29 55CM1435
- 55CM1435 - SCREW
30 6652915
- 6652915 - SEAL
- OIL
- dust
31 6803438
- 6803438 - BUSHING
- PRESS FIT
- wear
32 6803309
- 6803309 - BUSHING
- PRESS FIT
- wear
33 6652943
- 6652943 - COVER
- grease fitting
34 6577822
- 6577822 - HOSE BULK
- sold per foot
35 6806896
- 6806896 - DECAL
- Lift capacity 325
36 6806615
- 6806615 - DECAL
- Lift capacity 331
37 6806616
- 6806616 - DECAL
- Lift capacity 331/334 Long Arm
38 6806897
- 6806897 - DECAL
- Lift capacity 325/328 Long Arm
39 6803760
- 6803760 - DECAL
- logo
40 6805416
- 6805416 - DECAL
- latching X-Change
41 6817816
- 6817816 - DECAL
- Using X-Change - Was 6809264
42 6800269
- 6800269 - DECAL
- Using X-Change C-series
43 6534111
- 6534111 - WASHER
- 5
44 6802889
- 6802889 - BUSHING
- PRESS FIT
- not in kit - Use W/ NLA X-Change
45 6900541ENUS
- 6900541ENUS - INSTRUCTIONS
- Was 6900541
