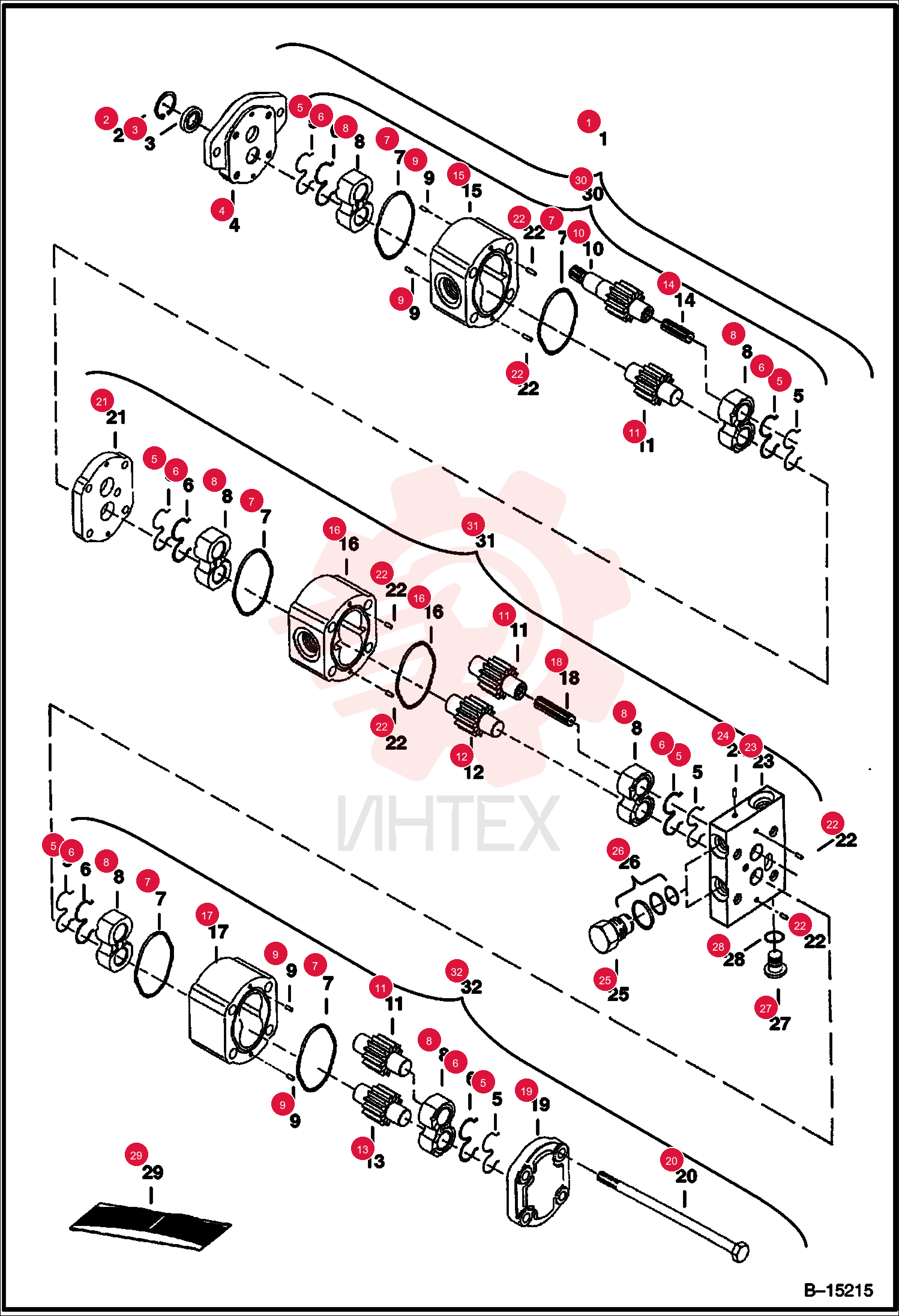

PUMP, GEAR TRIPLE 6676970
1 6676970
- 6676970 - PUMP
- GEAR TRIPLE
- 4 bolt flange fitting - Was 6675785
2 6662925
- 6662925 - SNAP RING
3 6662926
- 6662926 - SEAL
- Incl. W/Ref. 29
4 6663978
- 6663978 - COVER
- front
5 6663979
- 6663979 - BEARING
6 6662929
- 6662929 - PIN
- DOWEL
- .403" (10
- 25 mm) long
7 6673142
- 6673142 - SHAFT
- Drive
8 6662932
- 6662932 - COVER
- End
9 6663989
- 6663989 - PLATE
10 6665621
- 6665621 - DOWEL PIN
- .716" (18
- 20 mm) long
11 6673135
- 6673135 - BLOCK
- check valve
12 6673137
- 6673137 - PLUG
13 6673136
- 6673136 - VALVE
- CHECK
- Assy. - W/Ref. 26
14 6672515
- 6672515 - KIT
- SEAL
- Was 6673140
15 6673138
- 6673138 - PLUG ASSEMBLY
- W/Ref.
16 6673141
- 6673141 - O-RING
17 6673139
- 6673139 - SEAL KIT
- Ref. 3 (1)
- 5 (6)
- 6 (6)
- 7 (6)
- 26 (2) & 28 (1)
18 6673130
- 6673130 - KIT
- SECTION
- Center - Ref. 5 (2)
- 6 (2)
- 7 (2)
- 8(2)
- 9 (2)
- 11 (1)
- 12 (1)
- 14 (1)
- 16 (1)
- 18 (1) & 22 (2)
