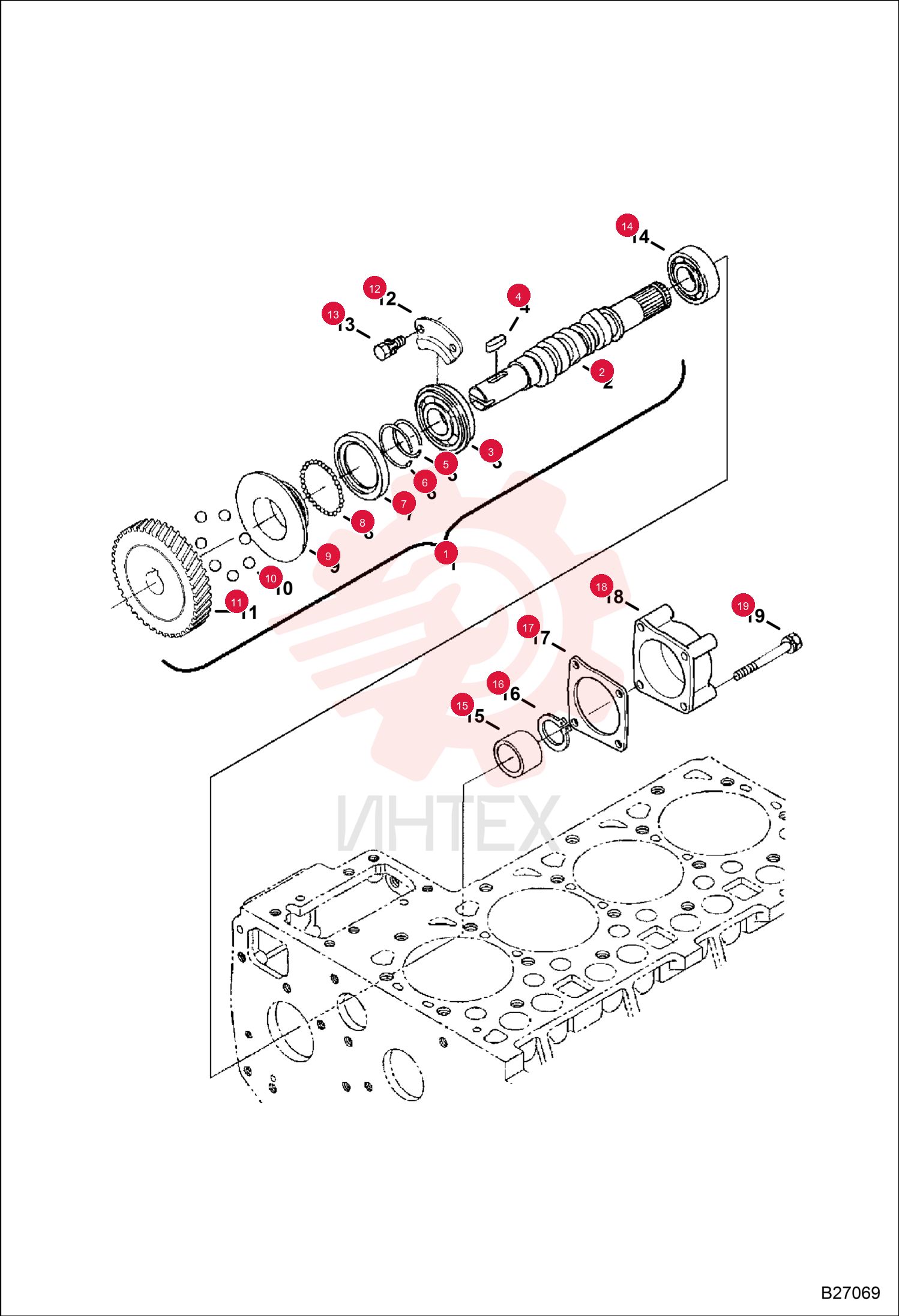

CAMSHAFT, FUEL 6698425

CAMSHAFT, FUEL 6698425

CAMSHAFT, FUEL 6698425

1 6698425

  • 6698425 - CAMSHAFT
  • FUEL
  • Ref. 2-11

2 6698110

  • 6698110 - BEARING
  • BALL

3 6598099

  • 6598099 - KEY

4 3974618

  • 3974618 - RING
  • SNAP
  • governor sleeve

5 3974620

  • 3974620 - CIRCLIP

6 6692385

  • 6692385 - CASE
  • governor ball

7 6969817

  • 6969817 - BALL

8 6655213

  • 6655213 - SLEEVE
  • governor

9 6655215

  • 6655215 - BALL

10 6655212

  • 6655212 - GEAR
  • PUMP INJ

11 6686047

  • 6686047 - STOPPER
  • fuel camshaft

12 6667420

  • 6667420 - BOLT

13 6686042

  • 6686042 - BEARING
  • BALL

14 6686041

  • 6686041 - COLLAR

15 5JM25

  • 5JM25 - CIR-CLIP
  • Was 6698111

16 6692386

  • 6692386 - GASKET
  • cover

17 3974996

  • 3974996 - COVER
  • fuel camshaft

18 6651934

  • 6651934 - BOLT
