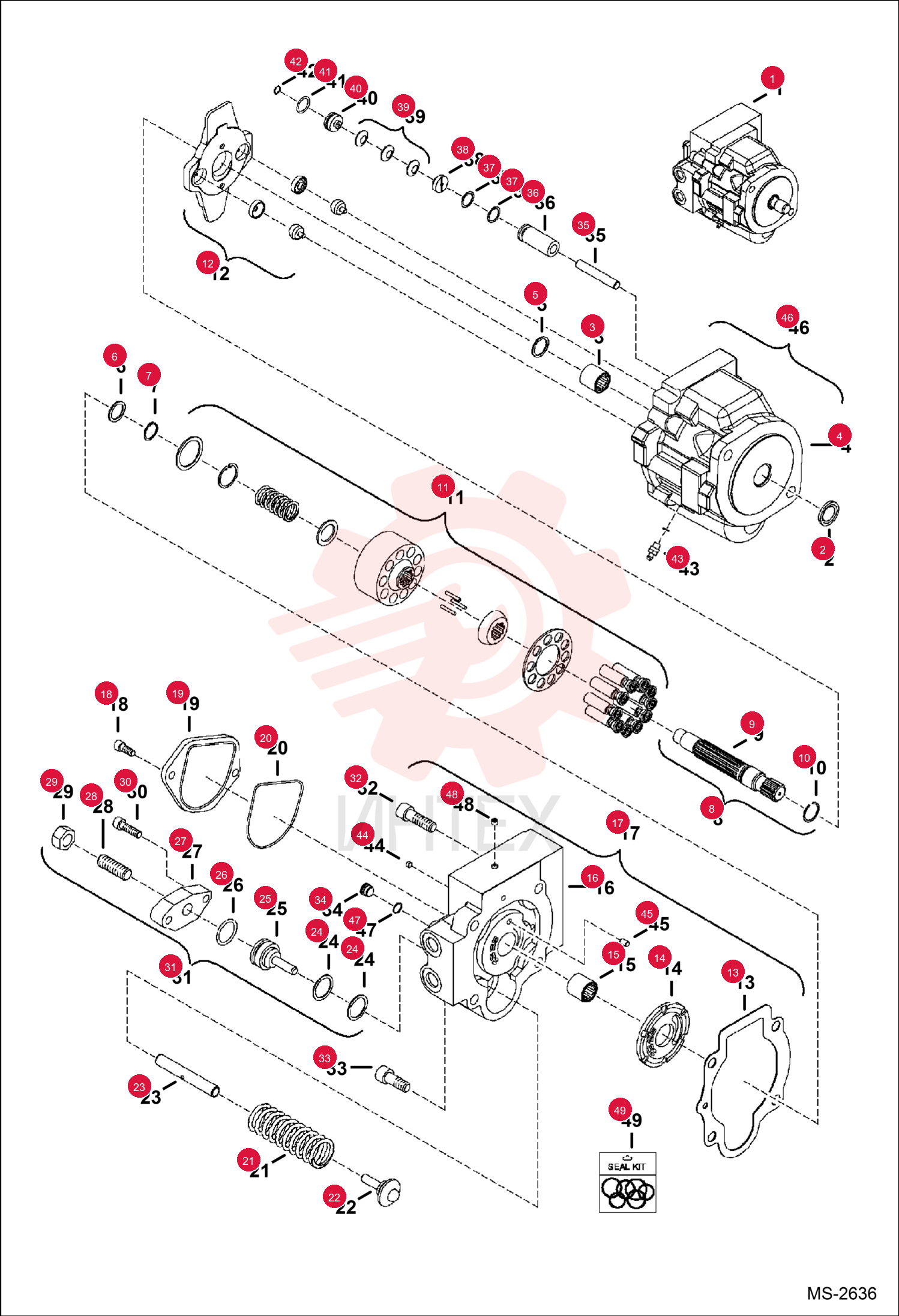

PUMP, HYD PISTON 6697947
1 6697947
- 6697947 - PUMP
- HYD PISTON
- assy - W/Ref. 2-48
2 6687813
- 6687813 - SEAL
- OIL
- oil
3 6687814
- 6687814 - BEARING
4 6687792
- 6687792 - SHIM
5 6687793
- 6687793 - SHIM
6 6679471
- 6679471 - RETAINER
- NLA - Was 6679471
7 6697936
- 6697936 - SHAFT ASSEMBLY
- W/Ref. 5-7
- 9
- 10
8 6687791
- 6687791 - RING
- snap
9 6687782
- 6687782 - ROTARY GROUP
10 6687781
- 6687781 - SWASH PLATE ASSY
- assy - swash
11 6687797
- 6687797 - GASKET
12 6687794
- 6687794 - CONTROL PLATE
- control
13 6687798
- 6687798 - BEARING
14 6687783
- 6687783 - PORT PLATE ASSY
- W/Ref. 13-16
- 32-34
- 35
15 6678641
- 6678641 - SCREW
16 6687786
- 6687786 - PLATE
17 6687787
- 6687787 - ORING
18 7000970
- 7000970 - SPRING
- SEAT
19 6687802
- 6687802 - SPRING
- SEAT
20 6687809
- 6687809 - GUIDE
21 6687811
- 6687811 - SHIM
- .020 in.
22 6687812
- 6687812 - SHIM
23 6687810
- 6687810 - SHIM
- .039 in.
24 6687803
- 6687803 - SPRING
25 6687806
- 6687806 - ORING
26 6687804
- 6687804 - COVER
27 6687805
- 6687805 - ADJUSTING SCREW
28 6687808
- 6687808 - NUT
29 6687807
- 6687807 - BOLT
30 6687784
- 6687784 - SPRING SEAT ASSY
- spring assy - W/Ref. 22-30
31 6687800
- 6687800 - BOLT
32 6687796
- 6687796 - BOLT
33 6687799
- 6687799 - PLUG
- W/Ref. 47
34 7000971
- 7000971 - PIN
35 7000972
- 7000972 - SLEEVE
- WEAR
36 6687822
- 6687822 - SHIM
- .004 in.
37 6687823
- 6687823 - SHIM
- .020 in.
38 6687824
- 6687824 - SHIM
- .039 in.
39 6698370
- 6698370 - SPACER
40 6687817
- 6687817 - SPRING
- coned
41 6698371
- 6698371 - PISTON
42 6687818
- 6687818 - ORING
43 6687819
- 6687819 - ORING
44 6687788
- 6687788 - PLUG
- W/ O-ring
45 6687801
- 6687801 - ORIFICE
46 6687795
- 6687795 - PIN
47 6687785
- 6687785 - HOUSING ASSY
- assy - W/Ref. 2-4
- 35-42
48 6678595
- 6678595 - PLUG
49 6693152
- 6693152 - KIT
- SEAL
- W/Ref. 2
- 13
- 20
- 26
- 41-43
- 47
