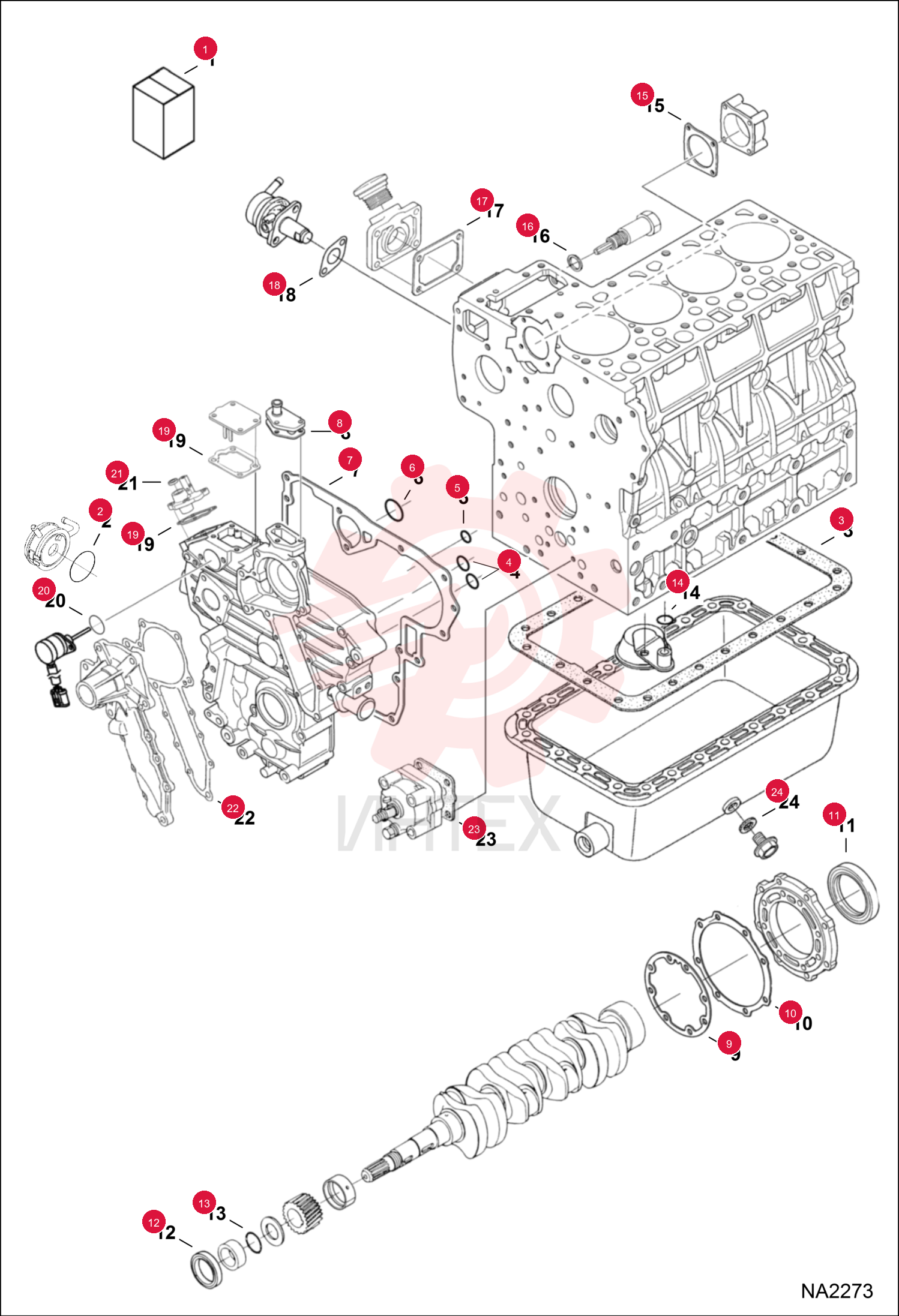

LOWER GASKET KIT TIER II ENGINE
1 6689018
- 6689018 - LOWER GASKET KIT TIER II ENGINE
- Ref. 2-24
2 6698244
- 6698244 - ORING
- not required
3 6666817
- 6666817 - GASKET
- - oil pan
4 6685467
- 6685467 - O-RING
- - gear case
5 6685468
- 6685468 - O-RING
- - gear case
6 6685466
- 6685466 - O-RING
- - gear case
7 6684770
- 6684770 - GASKET
- - gearcase
8 6666803
- 6666803 - GASKET
- - return flange
9 6684788
- 6684788 - GASKET
- - bearing case
10 6666814
- 6666814 - GASKET
- - case cover
11 6684789
- 6684789 - SEAL
- OIL
- - oil rear main
12 7024826
- 7024826 - SEAL
- OIL
- - oil frt main - oil frt main - Was 6631664
13 3974577
- 3974577 - O-RING
- - crankshaft frt
14 6684754
- 6684754 - O-RING
- - oil screen
15 6692386
- 6692386 - GASKET
- - fuel camshaft cover
16 6684818
- 6684818 - SEAL
- - idle adj. bolt
17 6666783
- 6666783 - GASKET
- - oil fill flange
18 6686037
- 6686037 - GASKET
- - fuel pump
19 6684841
- 6684841 - GASKET
- - boost cover
20 6685465
- 6685465 - O-RING
- - stop solenoid
21 6685476
- 6685476 - SEAL
- - speed control lever
22 6684870
- 6684870 - GASKET
- - water pump
23 6666782
- 6666782 - GASKET
- - oil pump
24 6680484
- 6680484 - GASKET
- - drain plug
