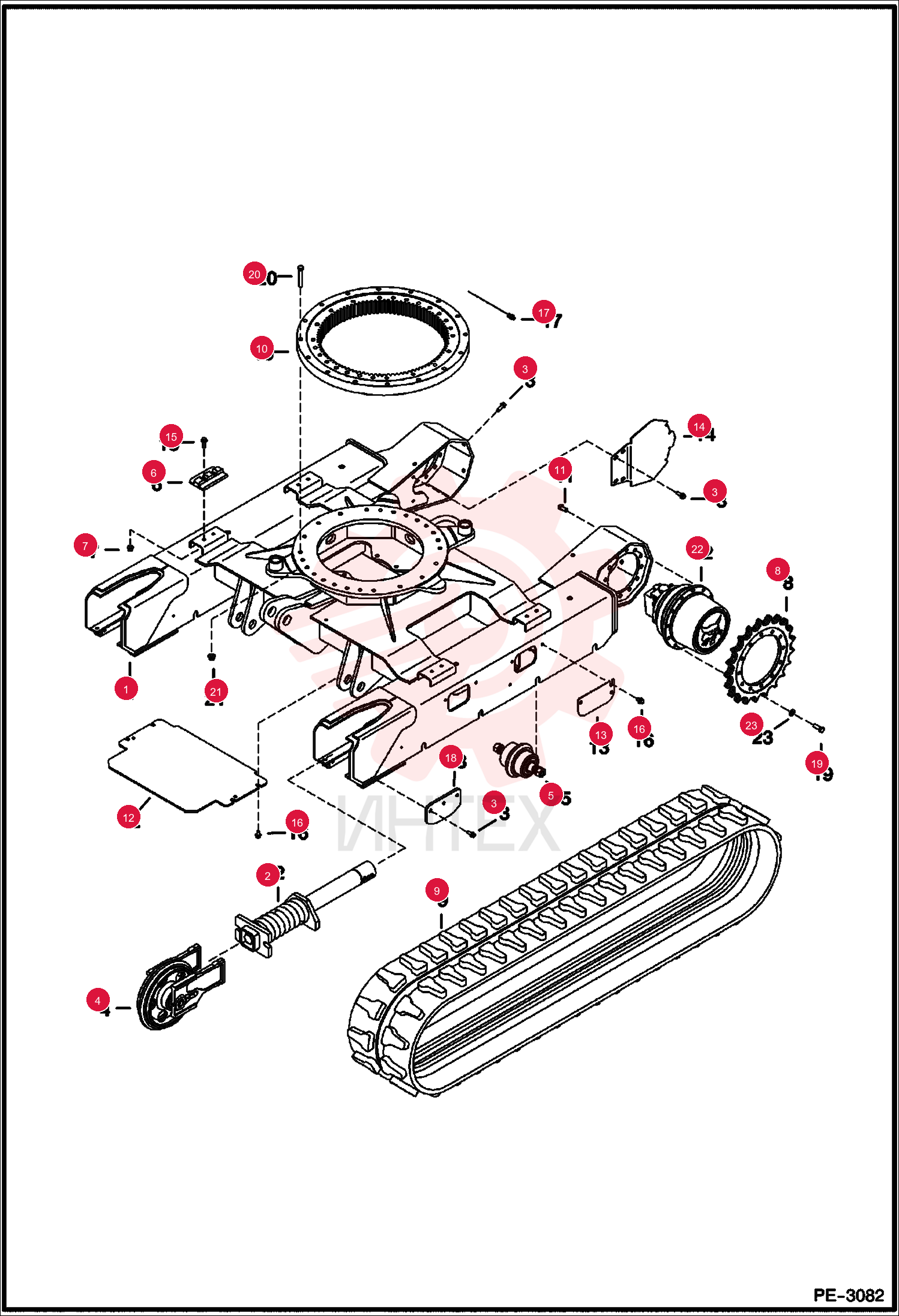

UNDERCARRIAGE
1 7128736
- 7128736 - UNDERCARRIAGE
- 12 hole
2 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Was 26GM10030
3 6534234
- 6534234 - PLATE
- SLIDE
- track slide
4 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
5 6813372SUB
- 6813372SUB - SPROCKET
- MOTOR DRIVE TRACK
- PAINTED
- 12 hole - Was 6813372
6 6655124
- 6655124 - RING
- SLEW
- swing - 96 teeth on swing gear
7 55CM1225
- 55CM1225 - BOLT
8 6597346
- 6597346 - COVER
9 6596723
- 6596723 - COVER
10 7115357
- 7115357 - COVER
11 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
12 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self tapping
13 6596396
- 6596396 - PLATE
- guide - steel track
14 55CM1235
- 55CM1235 - BOLT
15 7CM1280
- 7CM1280 - BOLT
16 51DM12
- 51DM12 - NUT
17 18EM1224
- 18EM1224 - WASHER HARDENED PLN
