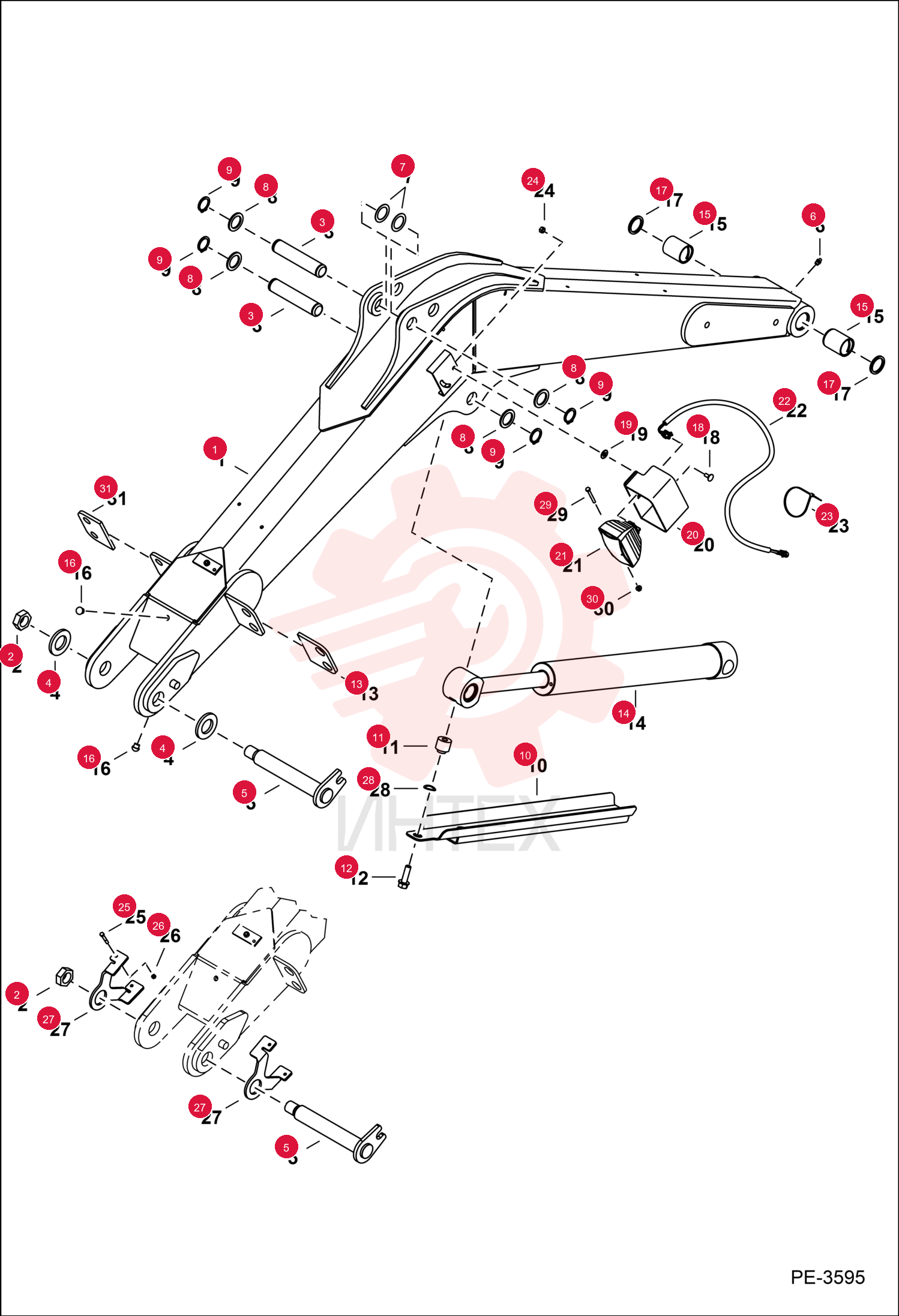

BOOM, DIPPER ARM 7139952 (5)
1 7139952
- 7139952 - BOOM
- DIPPER ARM
- W/Ref. 39 - Also Order Ref. 15 & 17
2 39DM30
- 39DM30 - NUT
3 6596216
- 6596216 - PIN
4 1EM380
- 1EM380 - WASHER
- Use W/non-extendable arm
5 6596238
- 6596238 - PIN
- PIVOT
- mounting
6 10H25
- 10H25 - FTG GREASE STRAIGHT
7 6811636
- 6811636 - SPACER
8 6534111
- 6534111 - WASHER
- 5
9 6534154
- 6534154 - RING
- RETAINER
10 7130856
- 7130856 - SHIELD
- W/A
11 7131109
- 7131109 - SPACER
12 7131273
- 7131273 - SCREW
13 6597688
- 6597688 - PLATE
- welded onto boom
14 6815277
- 6815277 - BUSHING
15 6597572
- 6597572 - BUMPER
16 6660075
- 6660075 - SEAL
- dust
17 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
18 6675859
- 6675859 - RETAINER
19 7236811
- 7236811 - HOUSING
- W/A
20 6692400
- 6692400 - BULB
21 6691410
- 6691410 - LIGHT
22 7135895
- 7135895 - HARNESS
- work light - 116" (2946 mm) long
23 6610510
- 6610510 - STRAP
- TIE 10
24 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
25 1CM650
- 1CM650 - SCREW HEX CAP
26 53DM6
- 53DM6 - NUT
27 7126461
- 7126461 - BRACKET
- Use in place of Ref. 4 on machines with bucket hoses routed outside the arm or machines with extendable arm
28 6536803
- 6536803 - WASHER
- spring washer
29 1CM655
- 1CM655 - SCREW
30 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
31 6958354
- 6958354 - MOUNT
- welded onto boom
