Bobcat
/
331.0
/

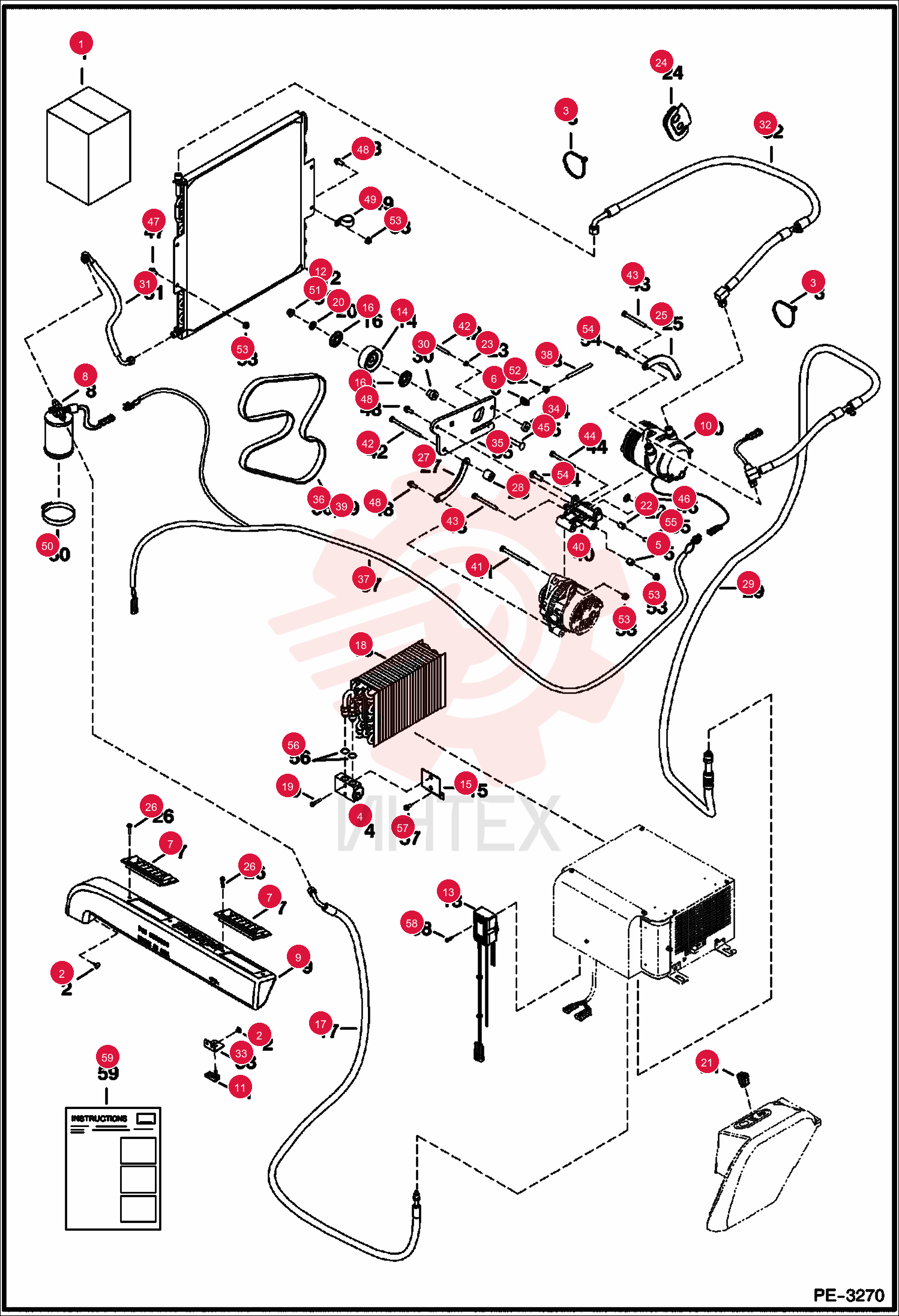

KIT A/C UPGRADE 7137271 (1)

KIT A/C UPGRADE 7137271 (1)

KIT A/C UPGRADE 7137271 (1)

1 7137271

  • 7137271 - KIT A/C UPGRADE
  • W/Ref. 2-56 & 59 - For heater box W/front filter access

2 6589675

  • 6589675 - SCREW

3 6624289

  • 6624289 - STRAP
  • TIE

4 6675534

  • 6675534 - BLOCK
  • VALVE A/C

5 6675838

  • 6675838 - BUSHING
  • ALTNTR BRKT

6 6676169

  • 6676169 - NUT

7 6676713

  • 6676713 - LOUVER

8 6680311

  • 6680311 - RECEIVER
  • DRIER A/C
  • W/O pressure switch - use switch 6675779

9 6681716

  • 6681716 - COMPRESSOR
  • A/C

10 6681878

  • 6681878 - LATCH

11 6682037

  • 6682037 - CONDENSER

12 6683004

  • 6683004 - THERMOSTAT

13 6684418

  • 6684418 - IDLER

14 6684559

  • 6684559 - BRACKET

15 6685132

  • 6685132 - SHIELD

16 6688529

  • 6688529 - HOSE

17 6691533

  • 6691533 - EVAPORATOR

18 6691534

  • 6691534 - SCREW

19 6704444

  • 6704444 - WASHER

20 7169112

  • 7169112 - SWITCH
  • ROCKER A/C
  • Was 6719176

21 6732732

  • 6732732 - BUSHING

22 6807220

  • 6807220 - SPACER

23 6808436

  • 6808436 - GROMMET

24 6813975

  • 6813975 - PLATE

25 6814024

  • 6814024 - SCREW

26 6814859

  • 6814859 - TENSOINER

27 6814861

  • 6814861 - SPACER

28 6679085

  • 6679085 - SWITCH
  • LOW

29 6697949

  • 6697949 - HOSE
  • A/C
  • Use on 337 & 341

30 7001433

  • 7001433 - CAP
  • END
  • charge port cap

31 6816871

  • 6816871 - HOSE
  • W/ 6679085 switch

32 6817028

  • 6817028 - SPACER

33 6817088

  • 6817088 - HOSE

34 6817091

  • 6817091 - HOSE

35 6697948

  • 6697948 - HOSE
  • A/C
  • Use on 337 & 341

36 7001433

  • 7001433 - CAP
  • END
  • charge port cap

37 6817093

  • 6817093 - BRACKET

38 6818176

  • 6818176 - SPACER

39 6818217

  • 6818217 - TENSIONER

40 7151981

  • 7151981 - TENSIONER W/A
  • not used on this model

41 6818326

  • 6818326 - BELT
  • EMEA Only

42 6697876

  • 6697876 - BELT
  • not used on this model

43 6697879

  • 6697879 - BELT
  • A/C
  • not used on this model

44 6818334

  • 6818334 - HARNESS
  • AC

45 6818366

  • 6818366 - SCREW

46 7101068

  • 7101068 - BELT

47 7103231

  • 7103231 - BRACKET

48 1CM8100

  • 1CM8100 - SCREW HEX CAP

49 1CM8110

  • 1CM8110 - SCREW HEX HD 8.8

50 1CM880

  • 1CM880 - SCREW HEX HD 8.8

51 1CM885

  • 1CM885 - BOLT

52 28CM1050

  • 28CM1050 - BOLT

53 29E6

  • 29E6 - WASHER
  • Was 28E6

54 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

55 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

56 30H57

  • 30H57 - CLAMP

57 42H48

  • 42H48 - CLAMP 5

58 43DM10

  • 43DM10 - NUT FLANGED HEX

59 43DM8

  • 43DM8 - NUT FLANGED HEX

60 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

61 5CM1025

  • 5CM1025 - SCREW FL THD HEX CAP

62 5CM1035

  • 5CM1035 - BOLT

63 7009977

  • 7009977 - O-RING
  • #8 - Was 6675538

64 6691532

  • 6691532 - SCREW
  • not in kit

65 6684556

  • 6684556 - SCREW
  • not in kit

66 6904991

  • 6904991 - INSTRUCTIONS
