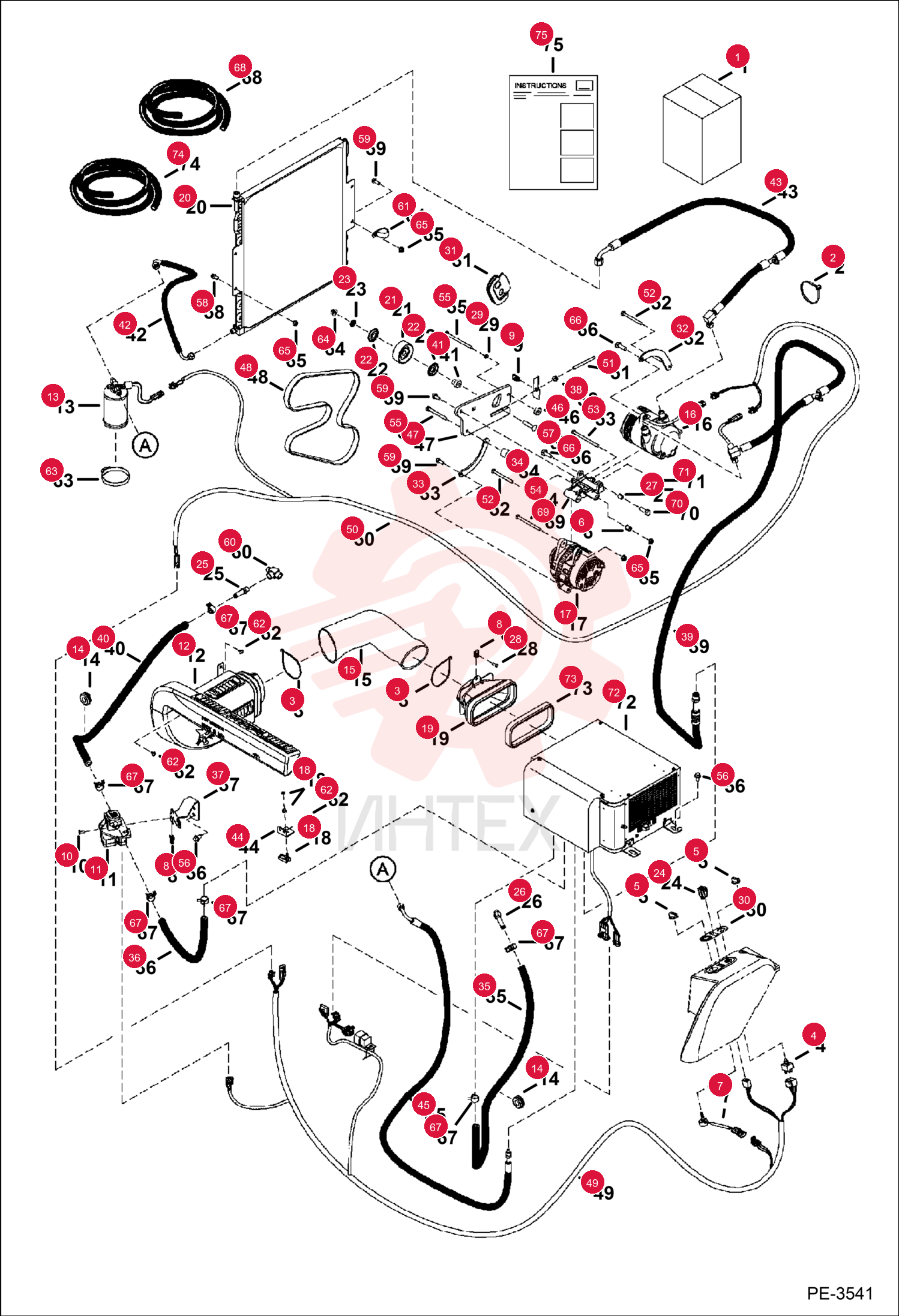

HVAC KIT 7136654 (3)
1 7136654
- 7136654 - HVAC KIT
- W/Ref. 2-16 & 18-75
2 6610510
- 6610510 - STRAP
- TIE 10
- cable
3 6624289
- 6624289 - STRAP
- TIE
- cable
4 6675176
- 6675176 - SWITCH
- blower
5 6675177
- 6675177 - KNOB
6 6675838
- 6675838 - BUSHING
- ALTNTR BRKT
7 6693148
- 6693148 - RESISTOR
- temp control
8 6676026
- 6676026 - NUT
9 6676169
- 6676169 - NUT
10 29CM616
- 29CM616 - SCREW FLGD HEX CAP
11 7003456
- 7003456 - VALVE
- MOTORIZED ASSY
- - Was 6693147
12 6680311
- 6680311 - RECEIVER
- DRIER A/C
- W/O pressure switch - use switch 6675779
13 7136776
- 7136776 - GROMMET
14 6681653
- 6681653 - HOSE
- AC (BULK PER FOOT)
15 6681716
- 6681716 - COMPRESSOR
- A/C
16 6681857
- 6681857 - ALTERNATOR
- - not in kit
17 6681878
- 6681878 - LATCH
18 6681881
- 6681881 - ADAPTER
- W/Ref. 73
19 6682037
- 6682037 - CONDENSER
20 6684418
- 6684418 - IDLER
21 6685132
- 6685132 - SHIELD
22 6704444
- 6704444 - WASHER
23 7169112
- 7169112 - SWITCH
- ROCKER A/C
- Was 6719176
24 6731084
- 6731084 - CONNECTOR
25 6731085
- 6731085 - ELBOW
26 6732732
- 6732732 - BUSHING
27 6803202
- 6803202 - SCREW
28 6807220
- 6807220 - SPACER
29 6808433
- 6808433 - DECAL
- heater
30 6808436
- 6808436 - GROMMET
31 6813975
- 6813975 - PLATE
32 6814859
- 6814859 - TENSOINER
33 6814861
- 6814861 - SPACER
34 7140437
- 7140437 - BRACKET
35 43DM8
- 43DM8 - NUT FLANGED HEX
36 6816871
- 6816871 - HOSE
37 6697949
- 6697949 - HOSE
- A/C
- Use on 337 & 341
38 7001433
- 7001433 - CAP
- END
- charge port cap
39 6817028
- 6817028 - SPACER
40 6817088
- 6817088 - HOSE
41 6817091
- 6817091 - HOSE
42 6697948
- 6697948 - HOSE
- A/C
- Use on 337 & 341
43 7001433
- 7001433 - CAP
- END
- charge port cap
44 6817093
- 6817093 - BRACKET
45 6688529
- 6688529 - HOSE
46 6818176
- 6818176 - SPACER
47 7151981
- 7151981 - TENSIONER W/A
48 6818217
- 6818217 - TENSIONER
- not used on this model - used on older models
49 6818326
- 6818326 - BELT
50 6697879
- 6697879 - BELT
- A/C
- not used on this model
51 7101068
- 7101068 - BELT
- not used on this model - used on older models
52 6697876
- 6697876 - BELT
- EMEA Only
53 6818333
- 6818333 - HARNESS
- HVAC
- HVAC
54 6818334
- 6818334 - HARNESS
- AC
- A/C clutch
55 6818366
- 6818366 - SCREW
56 1CM880
- 1CM880 - SCREW HEX HD 8.8
57 1CM885
- 1CM885 - BOLT
58 1CM8100
- 1CM8100 - SCREW HEX CAP
59 1CM8110
- 1CM8110 - SCREW HEX HD 8.8
60 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
61 28CM1050
- 28CM1050 - BOLT
62 29CM816
- 29CM816 - SCREW FLGD HEX CAP
63 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
64 30F2
- 30F2 - TEE
65 30H57
- 30H57 - CLAMP
66 6589675
- 6589675 - SCREW
67 42H48
- 42H48 - CLAMP 5
68 43DM10
- 43DM10 - NUT FLANGED HEX
69 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
70 5CM1025
- 5CM1025 - SCREW FL THD HEX CAP
71 5HM20
- 5HM20 - HOSE CLAMP
72 6565977
- 6565977 - HOSE HEATER BULK
- sold per foot
73 7103231
- 7103231 - BRACKET
74 5CM1035
- 5CM1035 - BOLT
75 29E6
- 29E6 - WASHER
- Was 28E6
76 7135617
- 7135617 - HVAC BOX
77 6681884
- 6681884 - SEAL
- BULK
- bulk - sold per foot
78 6904988
- 6904988 - INSTRUCTIONS
