Bobcat
/
337.0
/

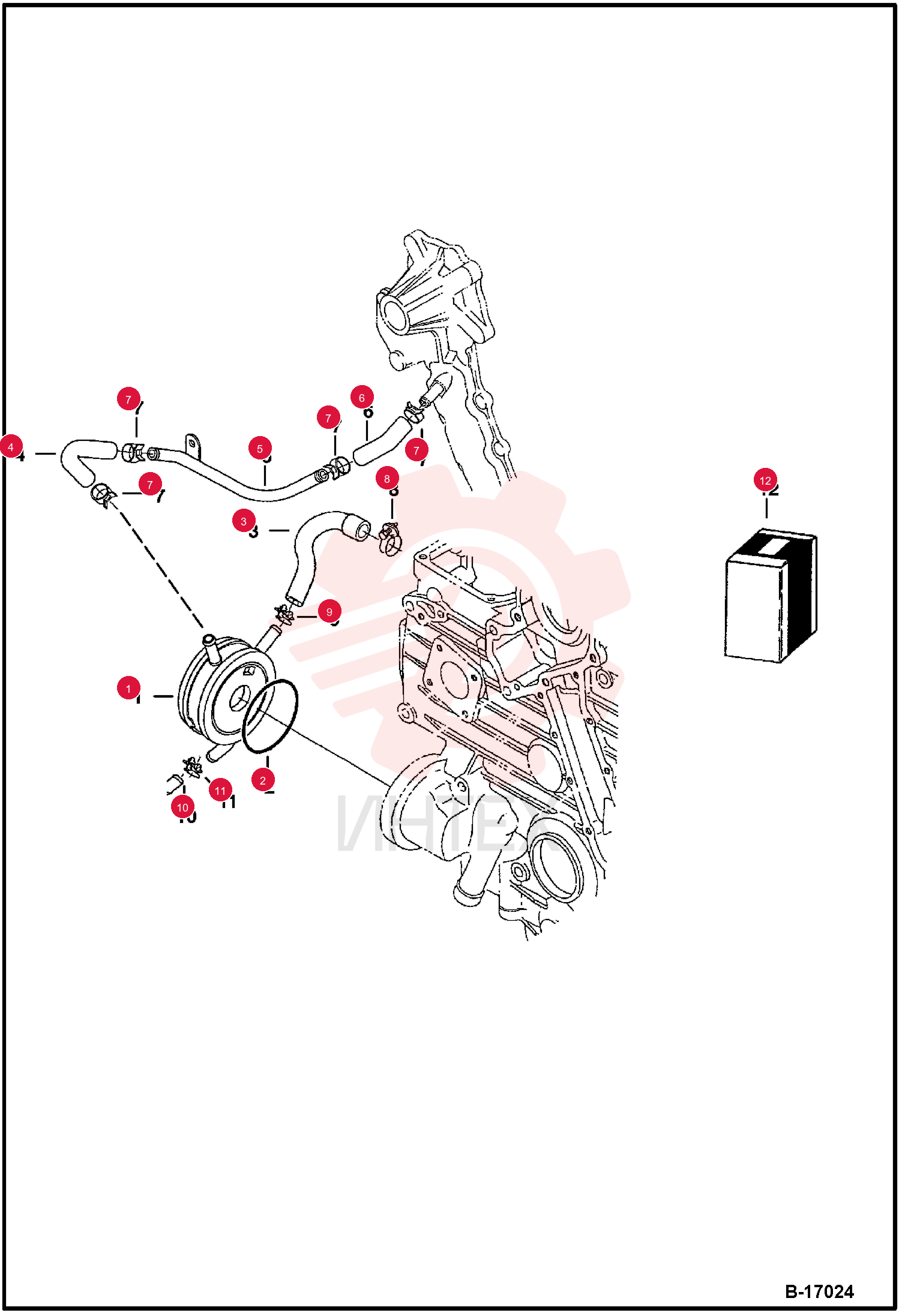

ORING 6698244 (2)

ORING 6698244 (2)

ORING 6698244 (2)

1 6698244

  • 6698244 - ORING
  • Was 6657422

2 6675670

  • 6675670 - HOSE

3 6675653

  • 6675653 - PIPE

4 6675682

  • 6675682 - PIPE

5 6675651

  • 6675651 - PIPE

6 6680580

  • 6680580 - CLAMP
  • Was 6652748

7 3974679

  • 3974679 - BAND

8 6599040

  • 6599040 - CLAMP

9 6677123

  • 6677123 - CAP
  • DRAIN
  • Was 6725443

10 5HM15

  • 5HM15 - CLAMP

11 6731956

  • 6731956 - KIT
  • OIL COOLER
  • oil cooler - Ref. 1-3 & 8-11
