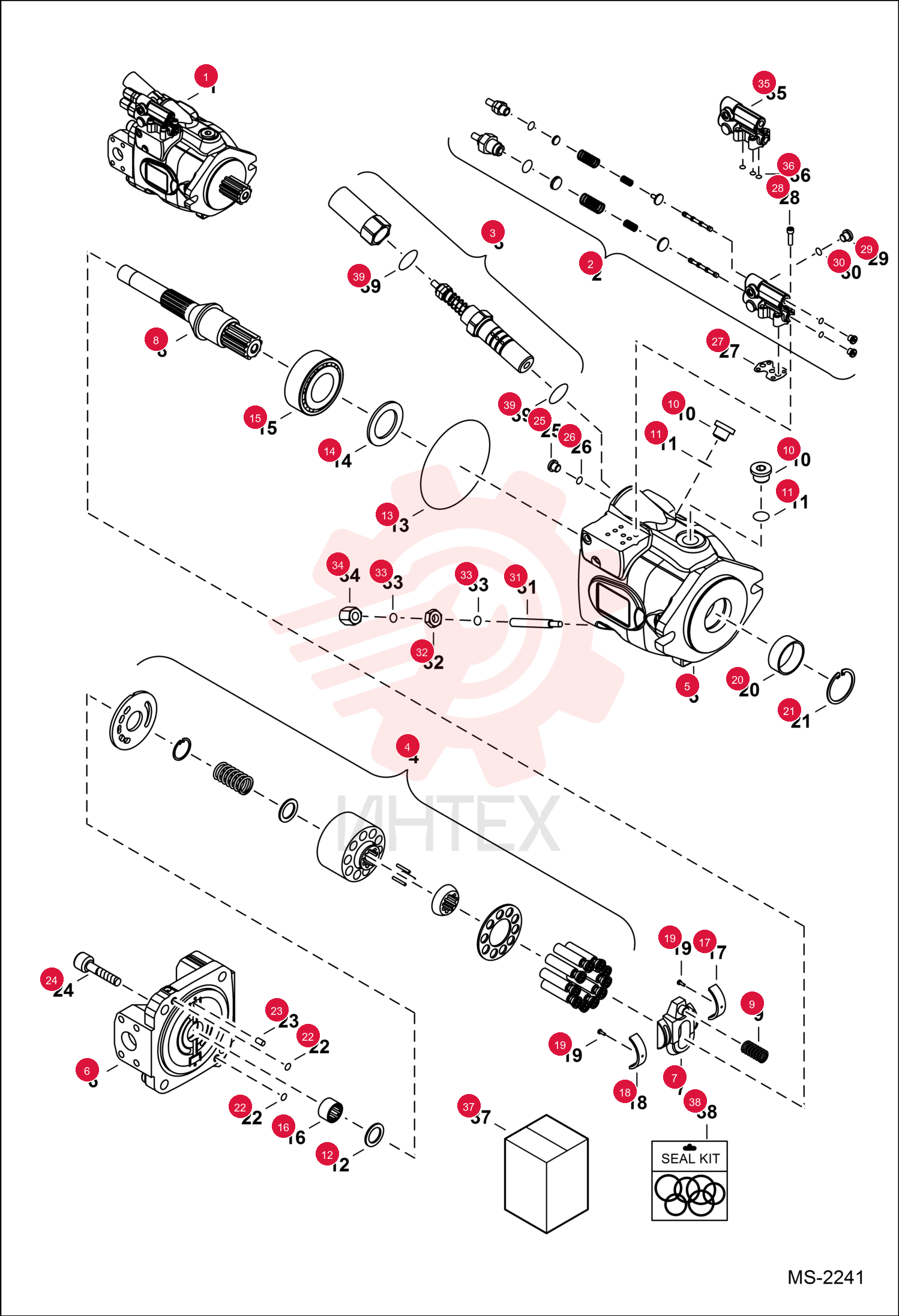

PUMP, PISTON 6698417
1 6698417
- 6698417 - PUMP
- PISTON
- Was 6686577
2 6698417REM
- 6698417REM - PUMP
- PISTON
- Was 6686577
3 6691520
- 6691520 - CONTROLLER
- Use W/Ref. 27 gasket - must replace gasket each time controller is removed
4 7000324
- 7000324 - TORQUE LIMITER
5 6690390
- 6690390 - ROTARY GROUP
6 6690393
- 6690393 - HOUSING
7 6690394
- 6690394 - PORT BLOCK
8 6690395
- 6690395 - SWASH PLATE
9 6690396
- 6690396 - DRIVE SHAFT
10 6690397
- 6690397 - SPRING
11 6690385
- 6690385 - SCREW
12 6690398
- 6690398 - SHIM
13 6690406
- 6690406 - O-RING
14 6690399
- 6690399 - STOP RING
15 6676375
- 6676375 - BEARING
- Was 6690400
16 6690401
- 6690401 - BEARING
17 6690402
- 6690402 - BEARING
18 6690403
- 6690403 - BEARING
19 6690404
- 6690404 - SCREW
20 6691488
- 6691488 - SEAL
21 6676379
- 6676379 - RETAINER
22 6690407
- 6690407 - SEAL
- O-RING
23 6686759
- 6686759 - PIN
- DOWEL
24 6686759
- 6686759 - PIN
- DOWEL
25 6690408
- 6690408 - SCREW SOCKET HEAD
26 6690107
- 6690107 - PLUG
- Was 6671832
27 6691519
- 6691519 - GASKET
- one-time use - must replace when controller is removed
28 6672255
- 6672255 - BOLT
- Was 6691489
29 6691491
- 6691491 - PLUG
30 6690386
- 6690386 - SCREW
31 6690387
- 6690387 - NUT
32 6691457
- 6691457 - O-RING
33 6690388
- 6690388 - CAP NUT
34 6691490
- 6691490 - O-RING
35 6691493
- 6691493 - KIT
- Ref. 15
- 16
- 17 & 18
36 6691492
- 6691492 - KIT
- SEAL
- Ref. 11
- 13
- 20-22
- 27
- 28
- 30
- 33
- & 36
37 6691456
- 6691456 - O-RING
