Bobcat
/
337.0
/

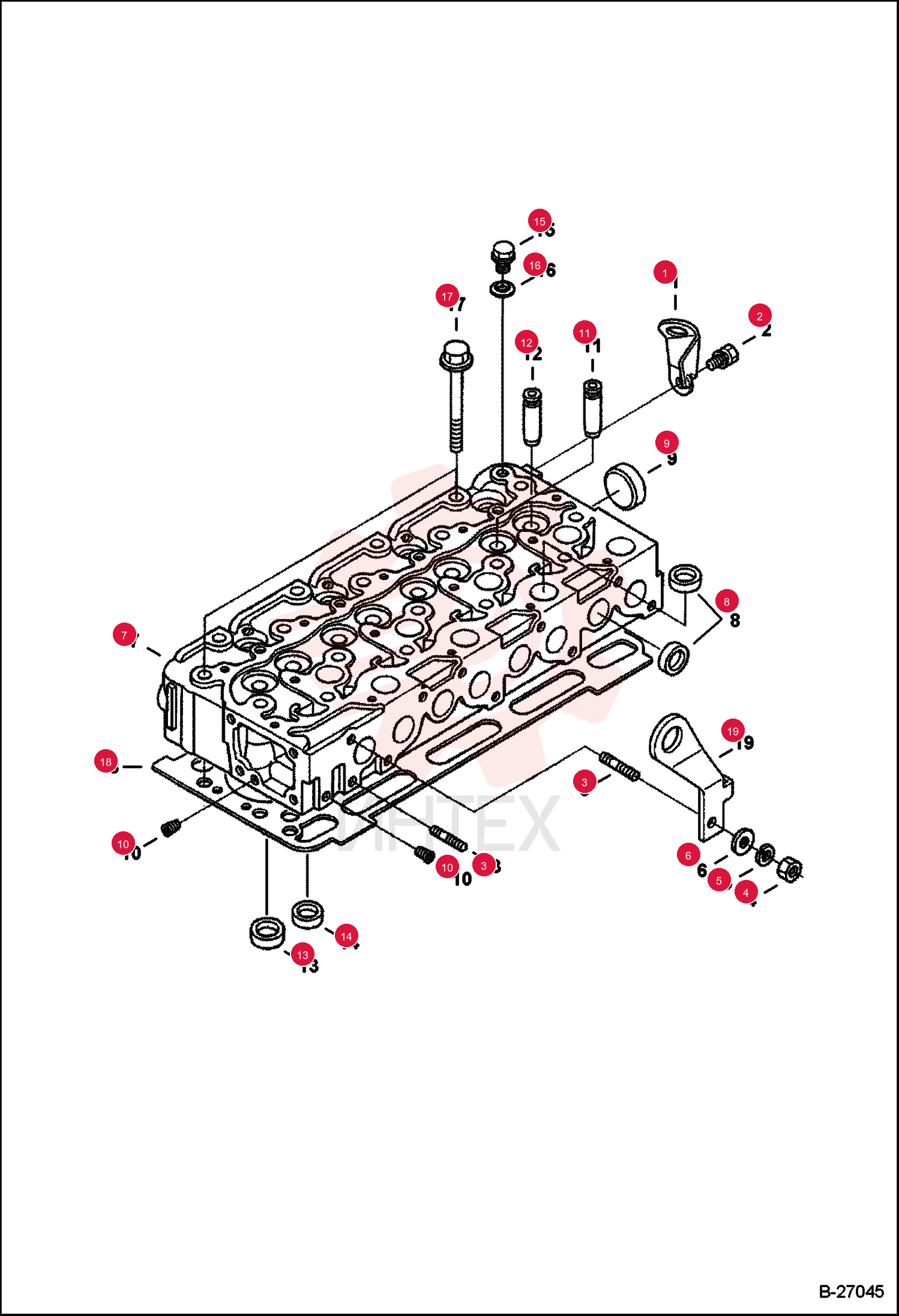

HOOK 6655152 (3)

HOOK 6655152 (3)

HOOK 6655152 (3)

1 6655152

  • 6655152 - HOOK
  • lift

2 6667421

  • 6667421 - BOLT

3 6598156

  • 6598156 - STUD

4 6652792

  • 6652792 - NUT

5 6667422

  • 6667422 - WASHER
  • spring

6 1EM80

  • 1EM80 - WASHER PLAIN
  • Was 2EM8

7 6698235

  • 6698235 - HEAD
  • CYLINDER
  • W/Ref. 8-14

8 3974432

  • 3974432 - PLUG

9 3974433

  • 3974433 - PLUG

10 6598116

  • 6598116 - PLUG

11 6655154

  • 6655154 - GUIDE
  • VALVE
  • intake valve

12 6969990

  • 6969990 - GUIDE
  • exhaust valve

13 6684762

  • 6684762 - SEAT
  • valve inlet

14 6684763

  • 6684763 - SEAT
  • exhaust valve

15 6655160

  • 6655160 - PLUG

16 6655161

  • 6655161 - WASHER
  • W/rubber

17 6655158

  • 6655158 - BOLT

18 6685081

  • 6685081 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.35mm)
  • .053 inch (1.35mm) thick

19 1G79003630

  • 1G79003630 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.35mm)
  • KUBOTA

20 1G79003632

  • 1G79003632 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.35mm)
  • KUBOTA

21 HG60112

  • HG60112 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.35mm)
  • AUTOWELT

22 XJBR00895

  • XJBR00895 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.35mm)
  • HYUNDAI

23 6685080

  • 6685080 - GASKET
  • .051 inch (1.30mm) thick

24 1G79003620

  • 1G79003620 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.30mm)
  • KUBOTA

25 1G79003622

  • 1G79003622 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.30mm)
  • KUBOTA

26 XJBR00894

  • XJBR00894 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.30mm)
  • HYUNDAI

27 HG60114

  • HG60114 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.30mm)
  • AUTOWELT

28 6685078

  • 6685078 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.15mm)
  • .045 inch (1.15mm) thick

29 1G79003600

  • 1G79003600 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.15mm)
  • KUBOTA

30 1G79003602

  • 1G79003602 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.15mm)
  • KUBOTA

31 HG60113

  • HG60113 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.15mm)
  • AUTOWELT

32 XJBR00891

  • XJBR00891 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.15mm)
  • HYUNDAI

33 6685077

  • 6685077 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.20mm)
  • .047 inch (1.20mm) thick

34 1G79003310

  • 1G79003310 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.20mm)
  • KUBOTA

35 1G79003312

  • 1G79003312 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.20mm)
  • KUBOTA

36 HG60110

  • HG60110 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.20mm)
  • AUTOWELT

37 XJBR00892

  • XJBR00892 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.20mm)
  • HYUNDAI

38 6685079

  • 6685079 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.25mm)
  • .049 inch (1.25mm) thick

39 1G79003610

  • 1G79003610 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.25mm)
  • KUBOTA

40 1G79003612

  • 1G79003612 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.25mm)
  • KUBOTA

41 HG60111

  • HG60111 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.25mm)
  • AUTOWELT

42 XJBR00893

  • XJBR00893 - ПРОКЛАДКА ГОЛОВКИ БЛОКА (1.25mm)
  • HYUNDAI

43 6698243

  • 6698243 - HOOK
  • LIFT
