Bobcat
/
337.0
/

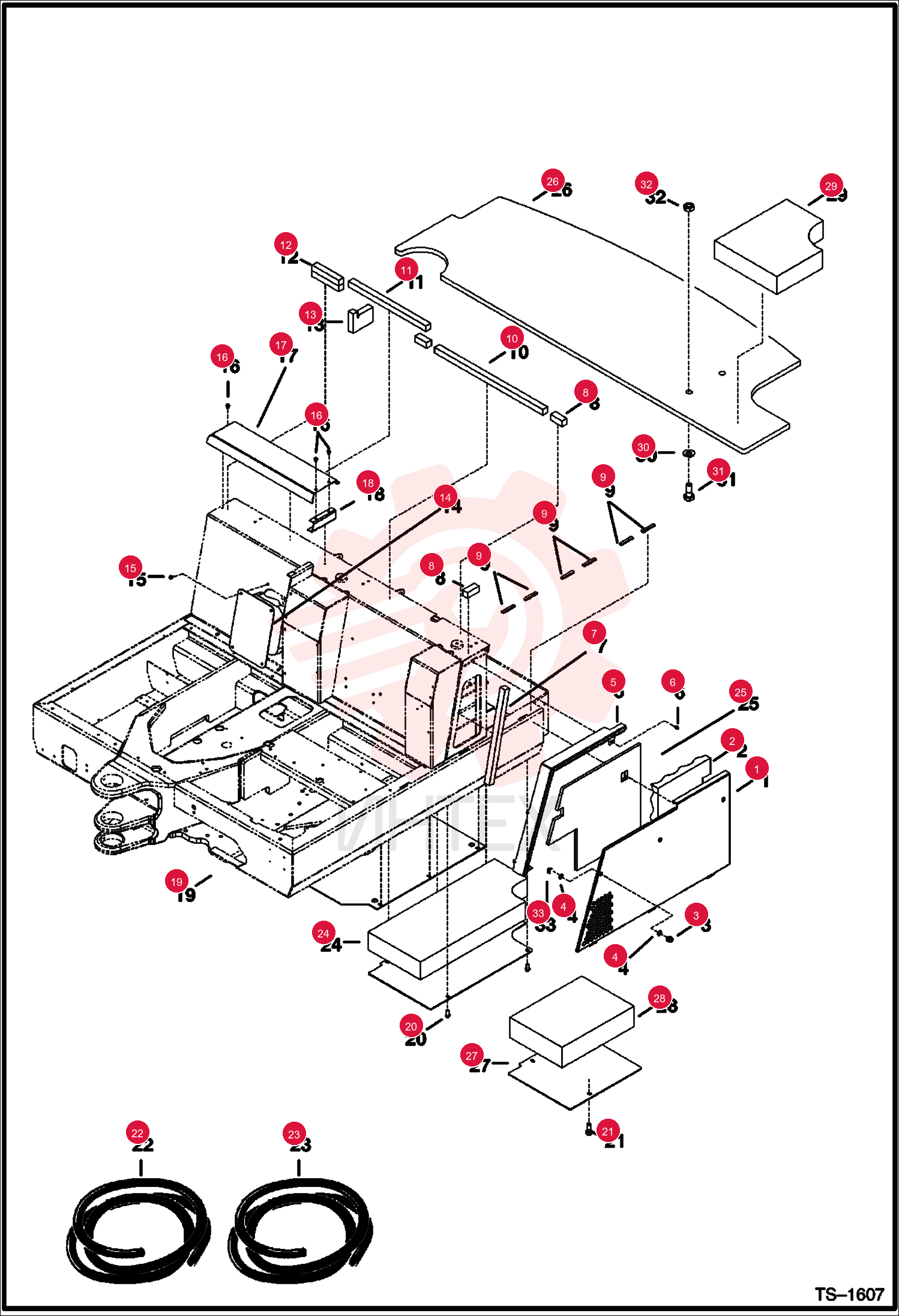

PANEL 6628678

PANEL 6628678

PANEL 6628678

1 6628678

  • 6628678 - PANEL
  • L.H.

2 6802831

  • 6802831 - INSULATION

3 6674389

  • 6674389 - LOCK
  • Was 6661695

4 6587458

  • 6587458 - KEY CAP FUEL 2

5 6536802

  • 6536802 - WASHER

6 6628677

  • 6628677 - ANGLE

7 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

8 6589121

  • 6589121 - INSULATION

9 6628692

  • 6628692 - INSULATION

10 6800150

  • 6800150 - PLATE
  • COVER
  • Access

11 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

12 6800911

  • 6800911 - COVER

13 6800258

  • 6800258 - BRACKET

14 6801720

  • 6801720 - BELLY PAN
  • Engine

15 6801721

  • 6801721 - COVER
  • Pump - Was 6802721

16 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

17 6554274

  • 6554274 - SEAL BULK/FT 9
  • bulk - sold per foot - Was 6554274

18 6804030

  • 6804030 - INSULATION

19 6805014

  • 6805014 - INSULATION

20 6805663

  • 6805663 - CNTR WGHT
  • 341 only

21 6805667

  • 6805667 - PAN
  • 341 only

22 6805702

  • 6805702 - INSULATION
  • 341 only

23 6805701

  • 6805701 - INSULATION
  • 341 only

24 28E16

  • 28E16 - WASHER
  • 341 only

25 17C1652

  • 17C1652 - BOLT
  • 341 only

26 61D16

  • 61D16 - LCKNUT
  • 341 only

27 6675843

  • 6675843 - NUT
