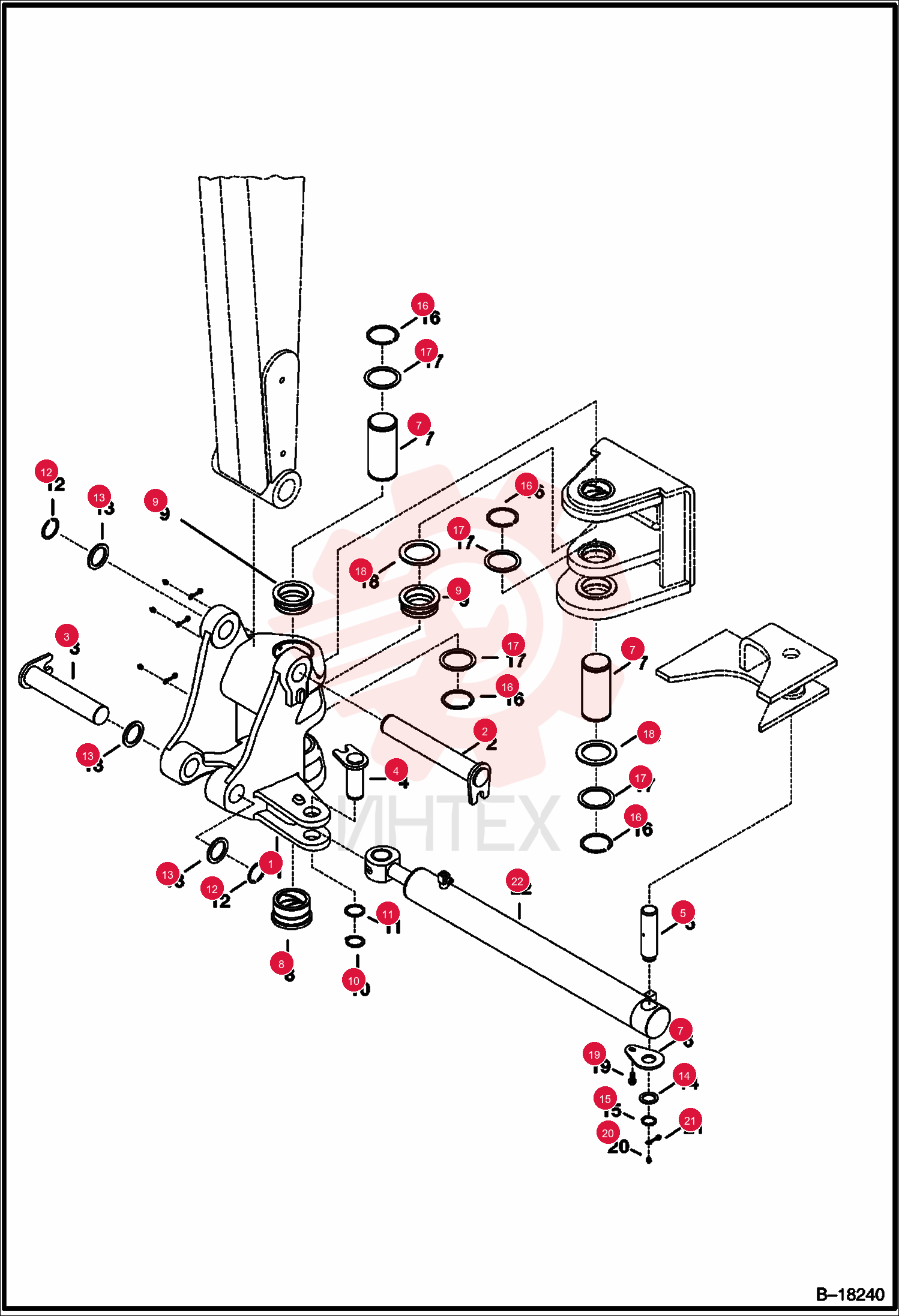

FRAME, SWING 6597897

FRAME, SWING 6597897

FRAME, SWING 6597897

1 6597897

  • 6597897 - FRAME
  • SWING

2 6628115

  • 6628115 - PIN

3 6628117

  • 6628117 - PIN

4 6628155

  • 6628155 - PIN

5 6628450

  • 6628450 - PIN

6 6628460

  • 6628460 - PLATE
  • Pin

7 7135326

  • 7135326 - PIN
  • Do not use Ref. 17 on bottom side with this pin

8 6628101

  • 6628101 - BUSHING

9 6628102

  • 6628102 - BUSHING

10 6668787

  • 6668787 - RING
  • SNAP

11 6628547

  • 6628547 - WASHER
  • 1.77" I.D. - 2.16" O.D.

12 6660274

  • 6660274 - RING
  • RETAINER

13 6538893

  • 6538893 - WASHER

14 6534111

  • 6534111 - WASHER
  • 5

15 6534154

  • 6534154 - RING
  • RETAINER

16 6668199

  • 6668199 - RING
  • SNAP

17 6628338

  • 6628338 - WASHER

18 6628339

  • 6628339 - WASHER

19 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

20 10H25

  • 10H25 - FTG GREASE STRAIGHT

21 6652943

  • 6652943 - COVER
  • grease fitting
